100Gbs Optical Transceiver Module

Product No.：SST-QSFP28-100G
Online Inquiry

100Gbs QSFP28 SR4 Optical Transceiver Module

Features

● Four-channel full-duplex transceiver modules

● Transmission data rate up to 26Gbit/s per channel

● Up to 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF

● Low power consumption <3.5W

● Operating case temperature 0°C to +70°C

● 3.3V power supply voltage

● RoHS 6 compliant

● Hot Pluggable QSFP form factor

● MPO connector receptacle

● Built-in digital diagnostic function

Applications

● IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4

● Proprietary High Speed Interconnections

● Data center

Description

100Gbs Optical Transceiver Module is a Four-Channel, Pluggable, Parallel,

It is for IEEE 802.3bm, 100GBASE SR4 Applications, or 40 Gigabit Ethernet and Infiniband FDR/EDR Applications.
It is full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation

for an aggregate data rate of 104Gbps 70m using OM3 fiber. These modules are designed to operate over multimode
fiber systems using 850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

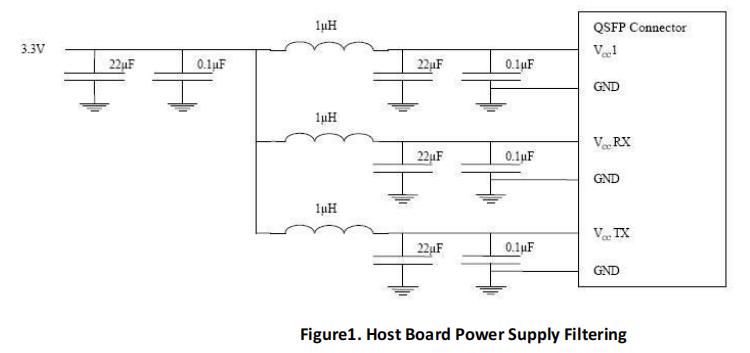

Power Supply Filtering

The host board should use the power supply filtering shown in Figure 1.
