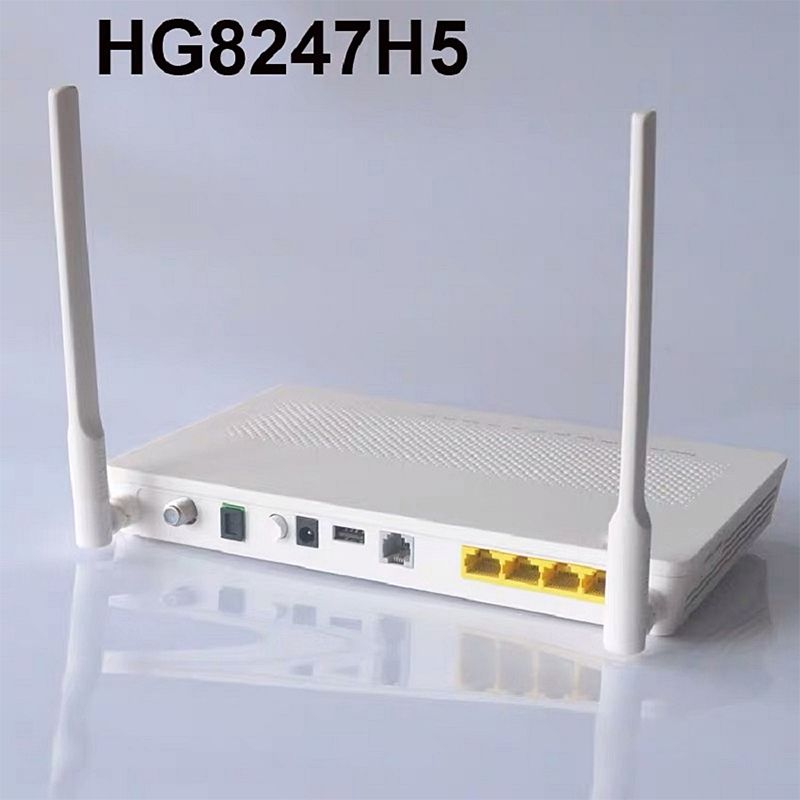

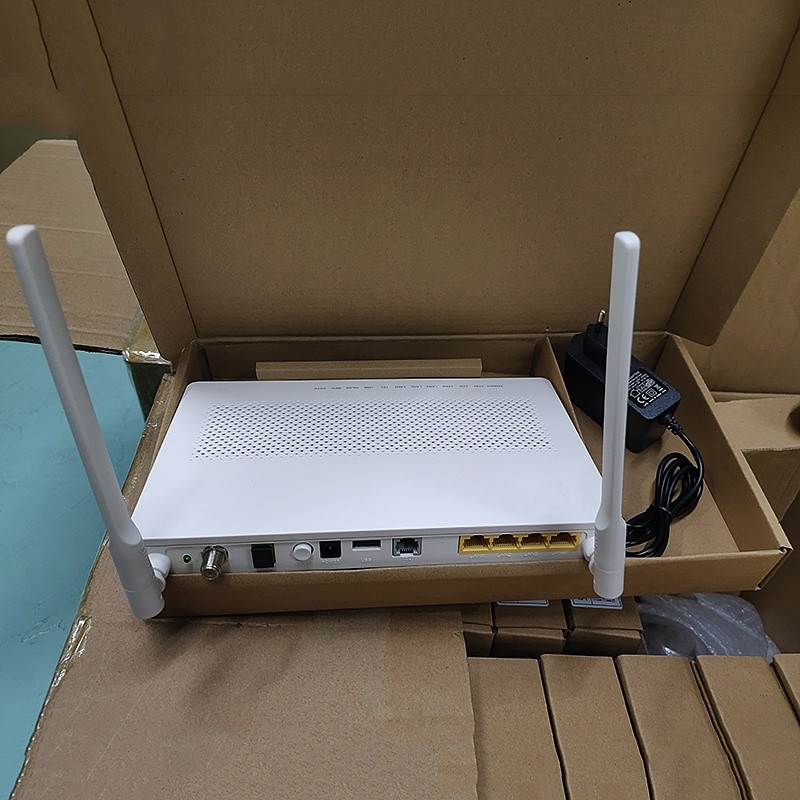

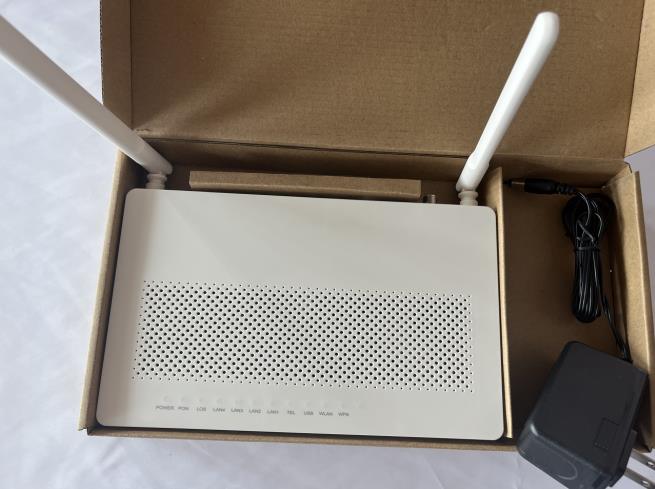

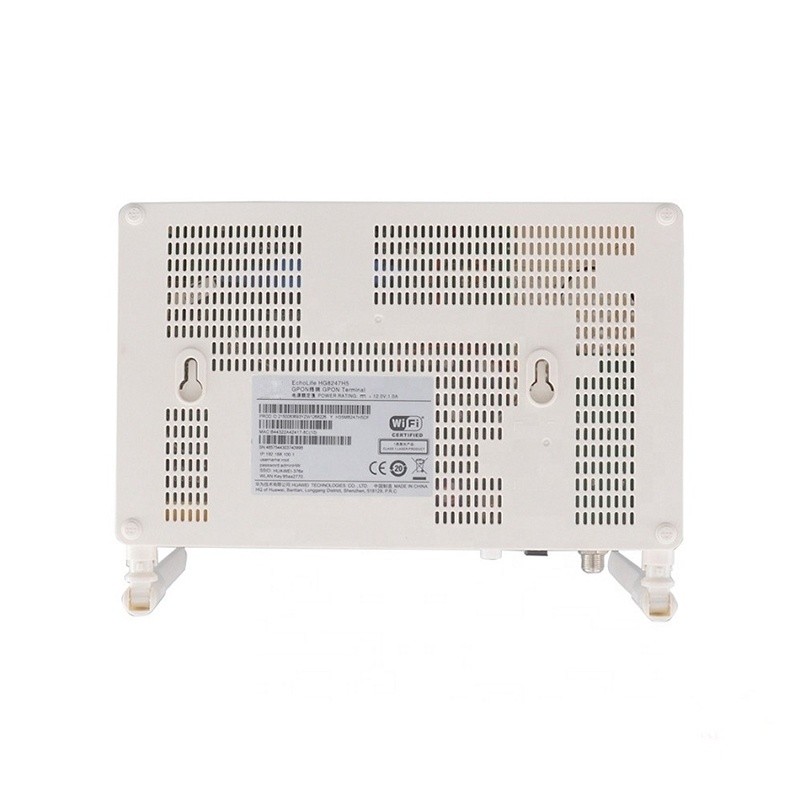

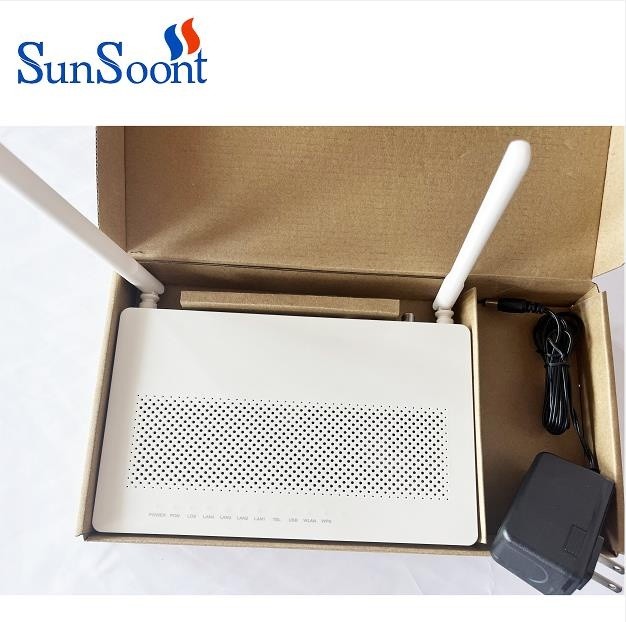

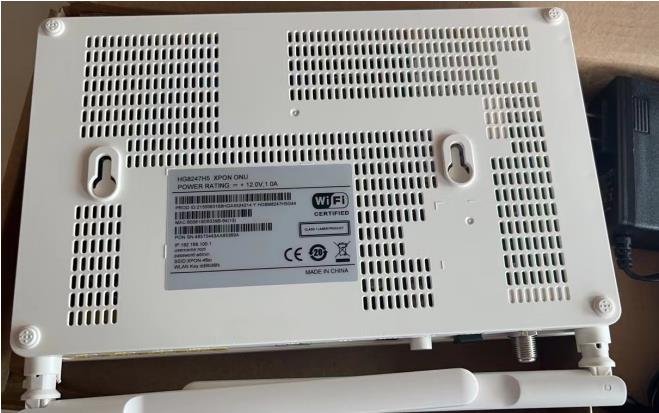

HG8247H5 FTTH provides four GE ports, one POTS ports, one CATV port, one USB port, and supports 2.4G Wi-Fi.
The ONT features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet,
and HD video services.These features make the EG8247H5 a perfect option for broadband access.


Application and Advantage:

*Conform to IEEE802.3ah standard
*Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
*Support frame filtering and suppression
*Support standard 802.1Q Vlan function, support VLAN conversion
*Support 4094 VLANs (802.1Q)
*Support Dynamic Bandwidth Allocation (DBA) function
*Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic
control, etc
*Single ONU supports up to 1LLID.
*Support IGMP Snooping
*Support Ethernet port ratelimit loop detection
*Support power failure alarm
*Support lightning protection for power supply and lightning protection for service port

Specification
