F660 V8 1GE 3FE 1Voice Wifi 5dbi

1. Overview

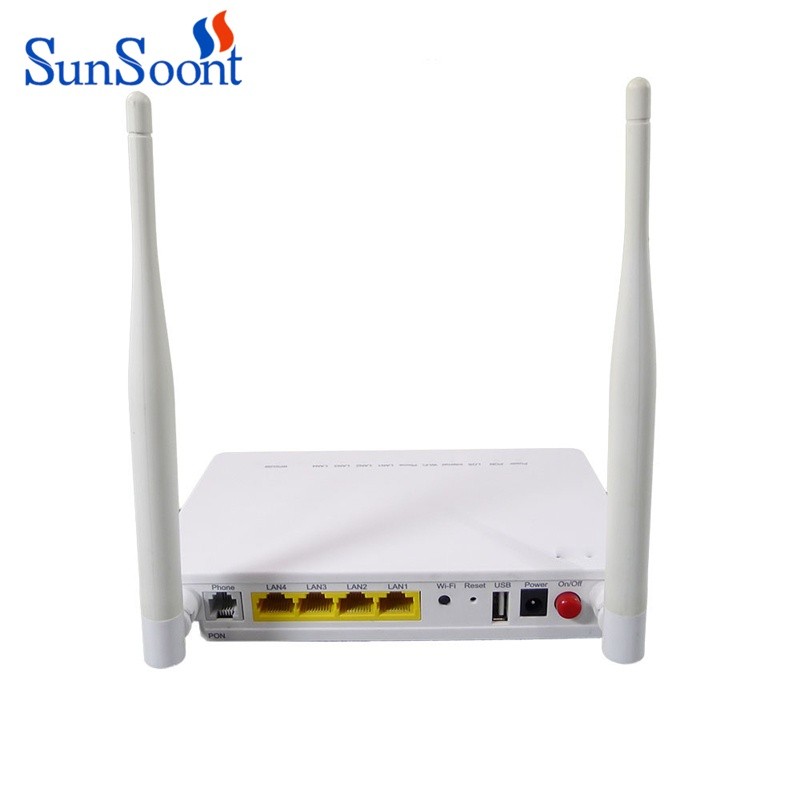

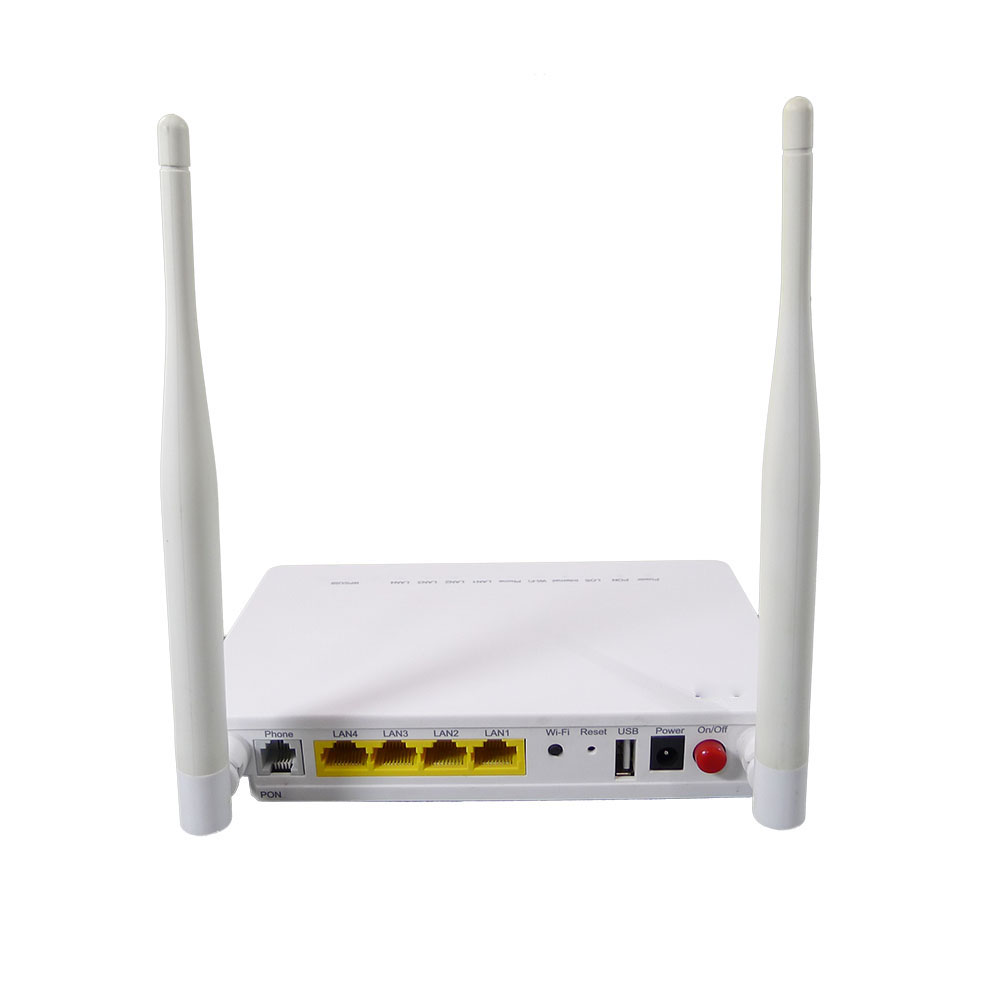

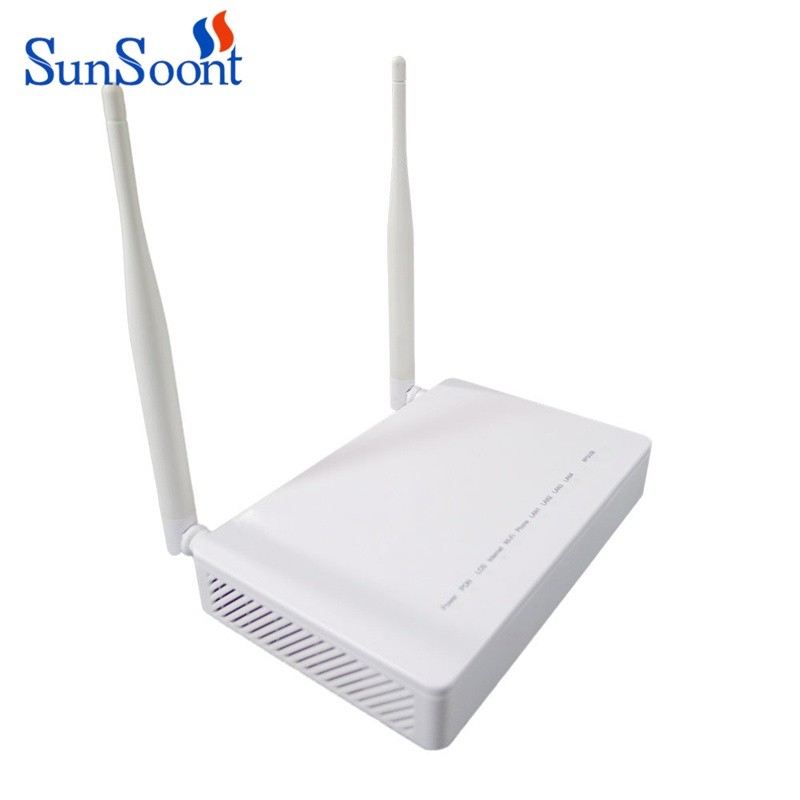

F660 V8.0 with 1GE + 3FE + 1POTS + WIFI + 1USB is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F660 provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.

2. Functional Feature

* Fiber access:Connecting internet throungh GPON access method
* Ethernet fuction: It Provids 4 Ethernet ports and Ethernet devices can be directly connected to the ZXHN F660 Ethernet port to achieve Internet and IPTV services.
* VoIP function: It Provids 1 VoIP(Phone) ports supporting softswitch SIP, IMS SIP or H.248 voice control protocol and telephone can be connected via this interface.
* Internal WLAM fuction: Users can connect to the ZXHNF627 via WLAN, enabling wireless Internet access.
* Data sharing, fast backup, data recovery and other functions: It provides USB2.0 port.Pluging a USB memory device,it can achieve all these fuctions.
* Under the premise of providing the above functions ,achieving security, QoS and network management are also took into the consideration.
* Providing multi-level authentication based on device, user, service, and encryption of data channels
* For different service requirements of the business,it can complete the local equipment and network matching QoS requirements
* Holding network management based on multiple management methods

Hardware Specification
