10-Ports Gigabit Industrial PoE Switch

Product No.：SST-HGP8ET2S
Online Inquiry

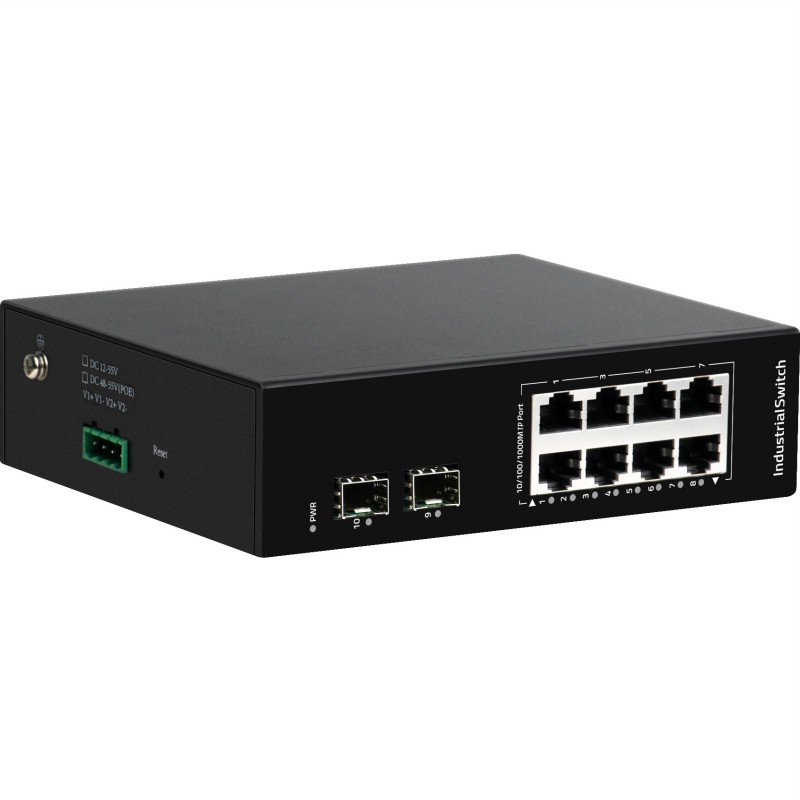

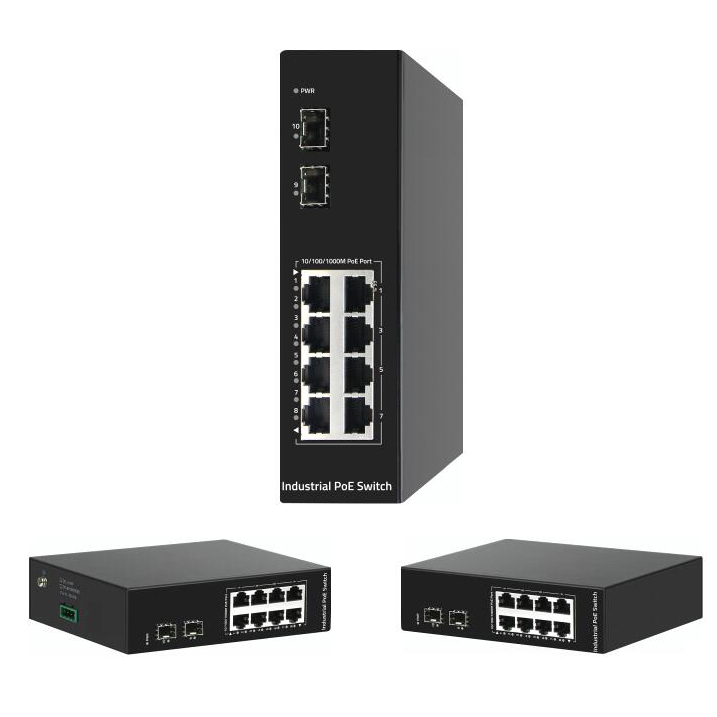

10-Ports Gigabit Industrial PoE Switch

【Introduction】

10-Ports Gigabit Industrial PoE Switch，Support 8Gigabit PoE ports+2Gigabit SFP ports , Support DIN-Rail & Wall mounts，Support power
supply input (DC48-55V)，working temperature -40℃~ +75℃，It has passed the industrial environment certification and complies with
FCC ,CE and CCC standards. The reliable industrial design can ensure that your automation system runs without interruption and stability.

【Main Features】

Ø Support 8*Gigabit PoE ports+2*Gigabit SFP ports

Ø Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE 802.3z,IEEE802.3x

Ø Compatible with both IEEE802.3at（30W）and IEEE802.3af（15.4w）

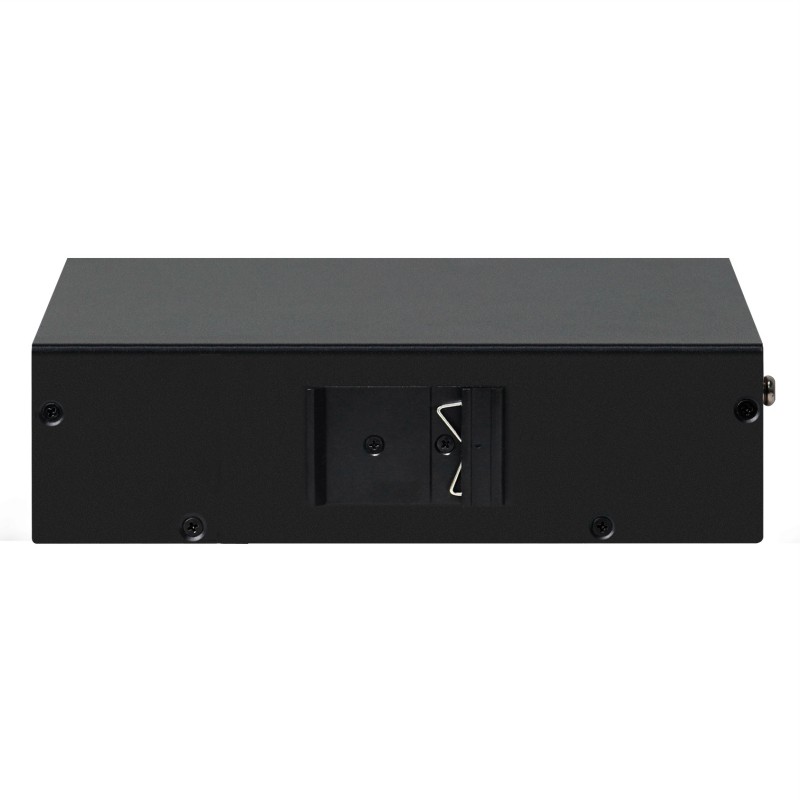

Ø High strengthiron shell, DIN35 Rail installation

Ø Industrial grade 4 design, -40 to 75°C working temperature.

Ø Support Redundant power supply access, support anti-reverse connection.

Ø Support lightning protection, Surge: 6KV, ESD:15KV

Ø Support EMC EN55032 standard.

【Application Environment】

Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Ø Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

Ø Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Ø Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

【Specifications】

I/O Interface
Power	DC 48-55V
Ethernet	8Gigabit PoE ports 2Gigabit SFP ports
Standard
Network Protocol	IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3z IEEE802.3x
PoE Protocol	IEEE802.3af (15.4W) IEEE802.3at (30W)
Optical Characteristics	multi mode: 850/1310nm （0-2KM） Single mode: 1310/1550/1490nm（0-120KM）
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge)
Network Medium	10BASE-T: Cat 3、4、5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)
Optical Media	Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Protection
Security Certificate	CE、FCC、RoHS、CCC
Environment
Working Environment	Working Temperature：-40~75°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing
Indication

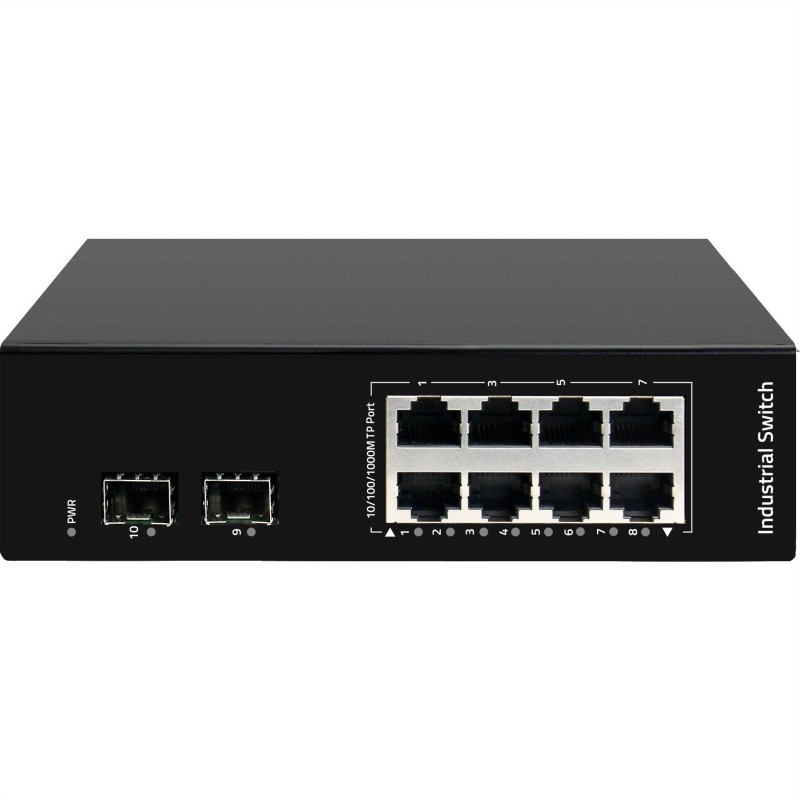

LED Indicators	PWR（Power）,1-10（Network Link&ACT）
Mechanical

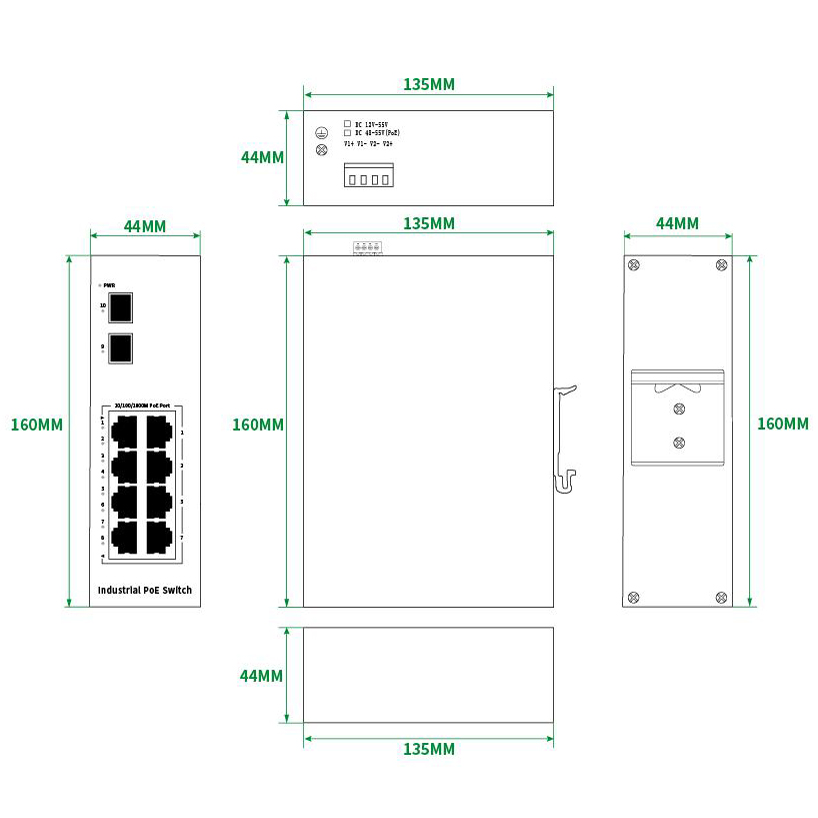

Structure Size	Product Dimension : 16013544mm Package Dimension : 24220786mm N.W：0.73kg G.W：0.90kg
Packing Info	Carton MEAS：445445510mm Packing Qty：20 units Packing Weight: 19KG
Power Voltage	Input Voltage ：DC 48-55 V Type of input: 4 PIN Industrial Terminal（block V1+V1- V2+ V2-）
Package List	Switch 1 pcs, Pull-arm 1 pair, User manual 1 pc, Certification1 pc
Indicators
PWR（power supply）	Lighting：Powered Un-Light：No Power
1-10 Green（Link&Data）	Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect
Ordering Info
SST-HGP8ET2S	10-Ports Gigabit Industrial PoE Switch
