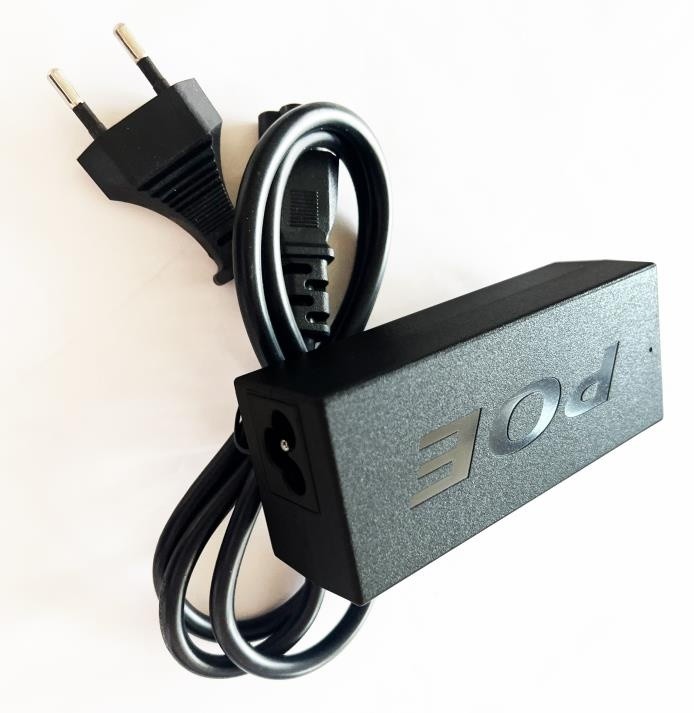

30w 1000Mbps POE injector

Product No.：SST-LPG30G
Online Inquiry

1000Mbps 30w POE Injector
SST-LPG30G

SunSoont 30W POE injector is a Power over Ethernet Injector with one Ethernet Input (data only) port and one
Output (data + power) port that is designed for small or medium network environments. This product can convert
standard 100~240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af compliant
network accessories. It also features PoE awareness to verify whether the network device receiving power or only the
data will be sent through LAN cable. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking
products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without
the need for power outlets and network administrators don’t need to use AC power adapters anymore.

Features

Minimize the need for a bulky power adapter and power line

Delivering power and data to equipment via a single Ethernet cable

PoE Injector/Midspan and Power Supply in one unit

Output DC48V, max 30W power supply

Built in protection circuits

IEEE 802.3af/at compatible

Technical parameters

Model	SST-LPG30G
Product Name	10/100/1000Mbps Single Port PoE Injector
Port Description	2x copper cable RJ45 ports, 1x AC input port.
PoE Power Supply	mid-span: 4/5, 7/8 data line pair(default);
Network Medium	1000BASE-TX: 5Cat and more UTP (≤100 meters)
Thermal Protection	>100°C
Performance	Working rate:10/100/1000Mbps working rate
	Network port protection: meet with IEC61000-4-2(ESD)
	MTBF: 100,000 hours
LEDs Indicator	PoE working status
Power	Total power: 30W
	PoE port power: 30W
	AC input voltage: 100~240V
	Output Voltage: 48V 0.5A
Dimensions/Weight	LxWxH: 903044(mm), 0.11kg
Working Environment	Operating Temperature: -20°～ 55°C , Storage Temperature: -20°～ 75°C
Working Environment	Working Humidity: 10%～90%, non-condensing Storage Humidity: 10%～95%, non-condensing
Warranty	CE mark,commercial,FCC Part 15 Class B，RoHS
Warranty	3 year warranty
