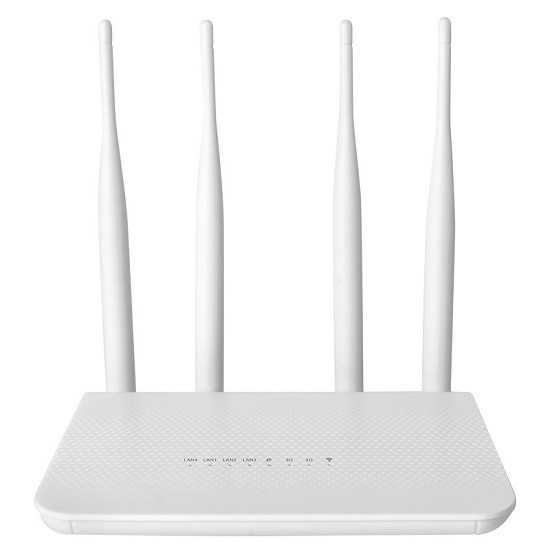

2.4GHz 4 antennas 4G router

Product profile

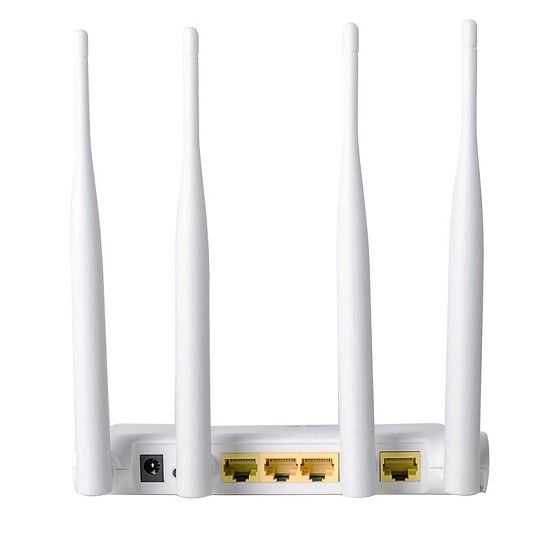

1, multi-network port design, can provide wired network for other devices.

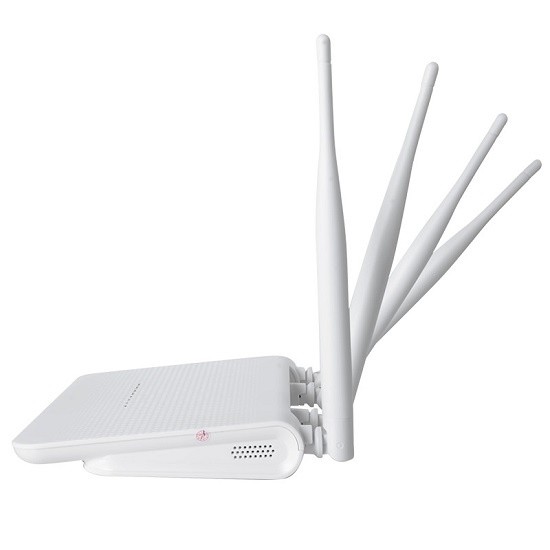

2, can rotate the antenna freely, multi-antenna receiving ability is good,

3, bid farewell to the troubles of no network available, the card has a network anytime, anywhere.


Product Technical Parameter





Interface

Network

4*lan

SIM

2FF sim

Button

reset

DC adapter

Input voltage:

12V-1A

Solution

Routing and WiFi chipset supplier

MTK



BASE

Routing and WiFi chipset model

MT7628N

Routing and WiFi processor info

IEEE 80 2.11 /b/g/n

DDR/SPI

64MBytes/16MBytes







RF

Main antenna

Internal antenna

Receive diversity antenna

Internal antenna

WiFi band

2400MHz-2483.5MHz

MIMO for WiFi

5dbi X 2



Max. transmitter power for WiFi

802.11b 24dBm±2dBm;

802.11g 16dBm±2dBm;

802.11n 15dBm±2dBm;

Software

Language

Chinese&English

APN Setting

Supported




Device Settings

Supported

WIFI Settings

Supported

Routing Settings

Supported

Firewall Settings

Supported

LED

Supported









Technical standard

WiFi standard

802.11b/g/n(2*2 11n features)

WiFi security

WPA/WPA2



Windows 7,10

MAC

Linux





Browser

IE (8.0 and later)

Firefox (3.0 and later)

Safari (4.0 and later)

Opera (10.0 and later)

Chrome (10.0 and later)



Envionment

Operating temperature

0 to 55° C

Storage temperature

-40 to 70° C

Humidity

5% to 95%



Module information

ID

Interface

LCC

SIZE

29.0mm × 32.0mm × 2.4mm

Solution

Wireless chipset supplier

QUALCOMM





Base

Wireless chipset model

MDM9607

Wireless processor info

CAT4

USIM/SIM slot

Standard 6 PIN SIM card interface

3V SIM card and 1.8V SIM card

















RF

GSM band

Band 3/8

TDS band

Band 34/39

CDMA

BC0

WCDMA band

Band 1/8

LTE TDD band

Band B38/B39/B40/B41

LTE FDD band

Band B1/B3/B5/ B7/ B8/ B 20

MIMO for wireless

2 × 2 DL SU-MIMO for LTE and HSPA









Max. transmitter power for wireless

LTE: +23dBm WCDMA: +24dBm EVDO:+24dBm

TD -SCDMA 2GHz +24dBm GSM 900MHz: +33dBm

GSM 1800MHz/1900MHz: +30dBm EDGE 900MHz: +27dBm

EDGE 1800MHz/1900MHz: +26dBm








Technical standard







GSM/EDGE/EVDO/TD-SCDMA/WCDMA/LTE

GPRS:UL 85.6Kbps DL 107Kbps

EDGE UL 236.8kbps DL 296Kbps TD-HSPAUL 2.2MbpsDL 2.8Mbps WCDMA: UL 384Kbps DL 384Kbps EVDO:UL 1.8Mbps DL 3.1Mbps

TD LTE  UL 35MbpsDL 130Mbps

FDD LTE  UL 50MbpsDL150Mbps



Envionment

Operating temperature

-20 to 60° C

Storage temperature

-40 to 85° C

Humidity

5% to 95%
