Products >> POE Switch >> Commercial POE Switch

  • AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink
  • AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink
  • AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink
  • AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink
AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink

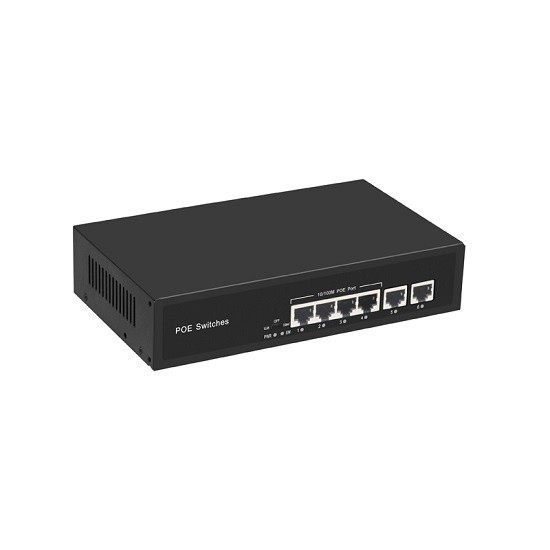

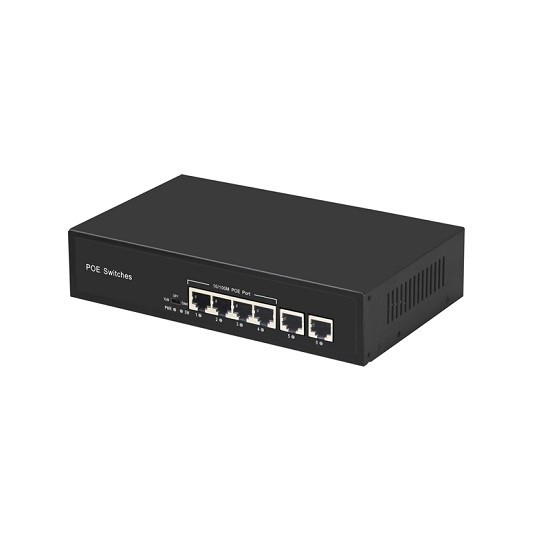

AI 100Mbps 6 port POE Switch with 4 POE port and 2 RJ45 Uplink

Product Features

4*10/100M POE ports + 2* 10/100M Ethernet Uplink ports

Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards

Ethernet port supports 10/100M adaptive and POE functions

Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard

Support port auto flip (Auto MDI/MDIX)

Automatically supplied to adaptive devices

Panel indicator monitoring status and help failure analysis

Three-speed one-button intelligent dial switch with support for VLAN mode, OFF mode and Extend mode

Support Watchdog Function

Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.



Product Description

6-Ports 100M Ethernet Power Switch (POE Switch), using high-quality high-speed network IC and the most stable POE chip, POE port support 802.3af and 802.3at standard both, this series of POE switches can be 10/100M Ethernet The network provides a seamless connection, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices.

With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.



Product Technical Parameter

Product Name

6-Ports PoE Switch

Model

SST-P4EH-AI

Connector Type

4 Port 10/100M PoE + 2 Port 10/100M Ethernet Uplink

Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3x

PoE Parameters

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC52V

Power Pin : 1/2(+) ; 3/6 (-)

DIP

VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on.



Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed



Extend: Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on;

Network Media

10BASE-T: Cat 3,4,5 UTP(≤100 meter)

10BASE-T: Cat 6 UTP(≤250 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

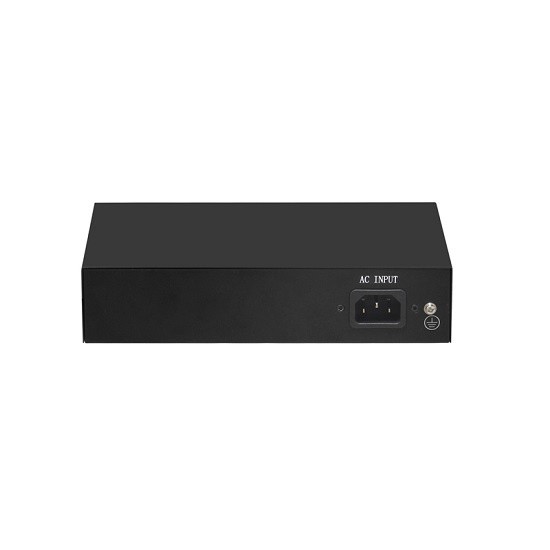

Power Supply

Power input: AC100-240V 50/60Hz,  Output: 52V1.25A,  Power Budget: 65W

Performance Specification

Bandwidth: 1.2Gbps



MAC Address: 1K



Packet Buffer Memory: 448K



Packet Forwarding Rate: 0.9Mpps



Forwarding Mode: Store-And-Forward

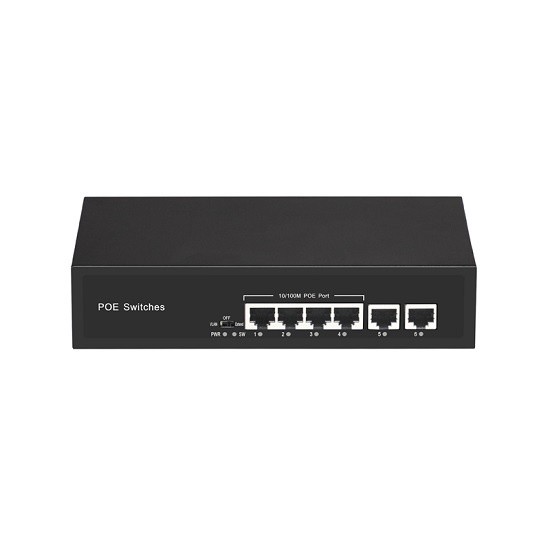

Led indicator

PWR

Power supply indicator(Red)

LightingPowered

Un-LightNo Power



SW



DIP indicator(Green)

OFF: Normal

Vlan: Lighting

Extend: Slow flash



1-6



RJ-45 ACT indicator(Green)

LightingConnecting

FlashingData Transmit

Un-LightDisconnect



Working Environment

Operating Temperature: -20℃ ~ 50℃;

Storage Temperature: -40 ~ 85℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Working Height: Max to 10,000 feet (3,000 meters)

Storage Height: Max to 10,000 feet (3,000 meters)

Physical Parameter

Product Dimension (L*W*H): 200mm*120mm*45mm

Package Dimension (L*W*H): 245mm*190mm*60mm

N.W: 0.6KG

G.W: 0.9KG

Package Contents

1.PoE Switch1 unit

2.User Guide1 unit

3.Warranty Card1 unit

4.Power Cord1unit

5.1U Rack Mount: 1 pair ( Optional )

Certification

CE ,RoHS, FCC, CCC

MTBF

100,000 hours

Warranty

3 years warranty
