60W POE Injector

 Overview

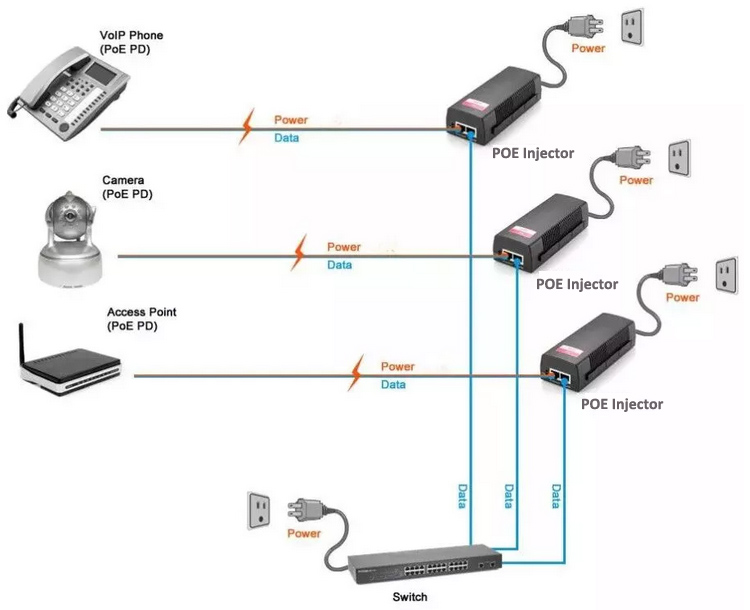

SunSoont Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. This product supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products, such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore. For all the function featured in 60W POE injector, people can get the benefit of flexible network installation at lower cost, less downtime.

Features
1, Up to 60W of Power on 4-pairs
2, IEEE 802.3bt Compliant
3, Safe on Low Power Devices Receive Only the Power They Need
4, Safe and Reliable Power to WLAN Access Points
5, Automatic Detection and Protection of Non–standard Ethernet Terminals
6, Supports 10/100/1000Base-T LAN environment

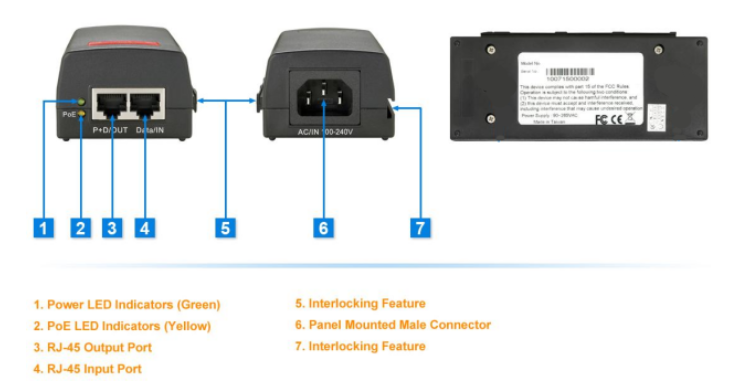

7, Unique interlocking feature for easy installation

Technical Parameters

Standards Compliance

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-Tx Fast Ethernet
IEEE 802.3bt Power over Ethernet

Ethernet Port

1*input RJ45, 1*output POE

Ethernet Speed Rate

10/100/1000Mbps RJ45

POE Pin Assignment

Data+Power Pairs 1/2 (+), 3/6 (-); Power Pairs 4/5 (+), 7/8 (-)

Output Power

DC54~56V, Maximal Power 60Watts

Input Power

100~240VAC

Transmission Distance

100meter

Indicators

AC Power (Green); POE (Orange)

Certification

CE, RoHS, FCC

Environment

Operating Temperature: -20 ~ 60°C

Storage Temperature: -10 ~ 70°C

Storage Humidity: Maximum 95%

Weight

0.50KGS

Product Size

39*62.7*145mm

Product Details
