Optical Fiber Identifier

Optical Fiber Identifier

(SST-I40)

Product’s feature:

1, Small and practical, portable to use. No need to replace the fixture, the optical fiber is tested directly;

2, The breakpoint can be located quickly, and the detection distance is up to 10KM. LED lighting is

convenient for construction in the dark;

3, Fashionable appearance and compact size. ABS material shell, comfortable to use. The whole machine

is light and easy to carry.

4, All-in-one fixture, suitable for 0.25-3mm. Simple to use, direct detection, no need to change fixture

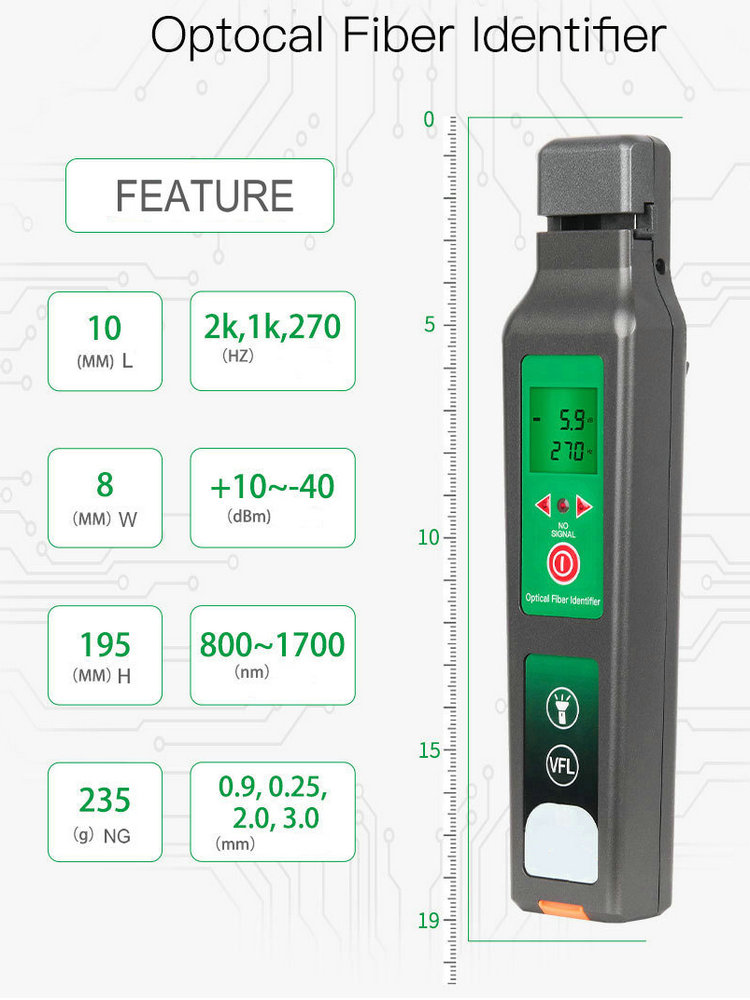

Specification

Wavelength recognition range	800-1700nm
Signal recognition type	CW: 270Hz±5%, 1kHz±5%, 2kHz±5%
Detector type	φ1mm InGaAs 2pcs
Optical fiber type	φ0.25, φ0.9, φ2.0, φ3.0
Optical power reading range	-40 dBm to 10 dBm
Signal frequency range	270Hz, 1kHz, 2kHz
Battery	2*AA
Working temperature	-10℃ to 60℃
Storage temperature	-25℃ to 70℃
Size & weight	2194528mm/ 235g
VFL function
Power	10mW
Testing distance	8-10km
wavelength	650nm
Laser	LD
LED light	support
