10 Port 10/100/1000M Industrial PoE Switch

10 Port 10/100/1000M Industrial PoE Switch

Product No.：SST-HGP8EH1ET1S
Online Inquiry

10 Port 10/100/1000M Industrial PoE Switch

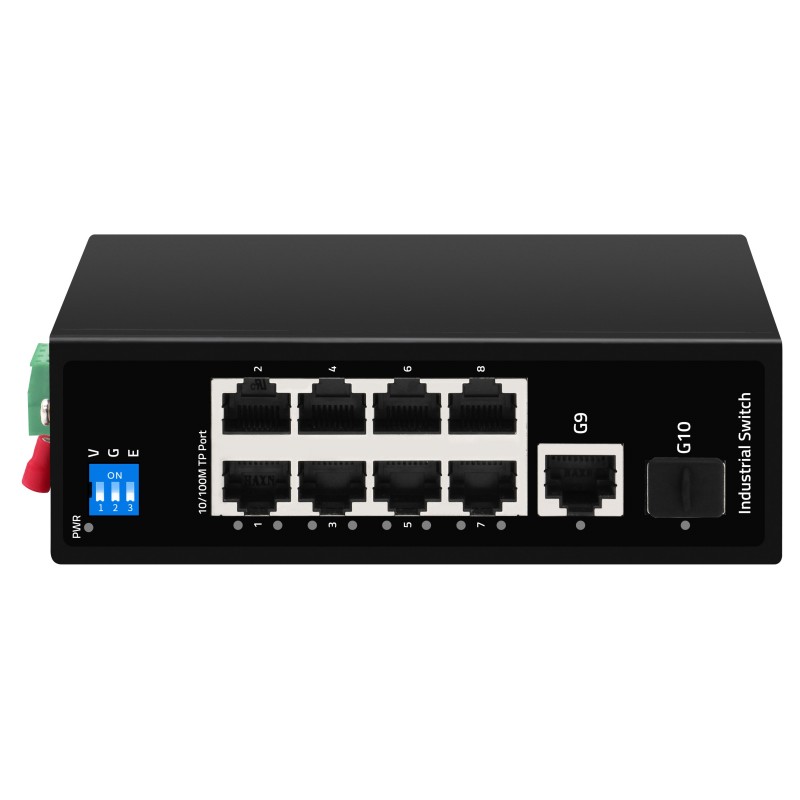

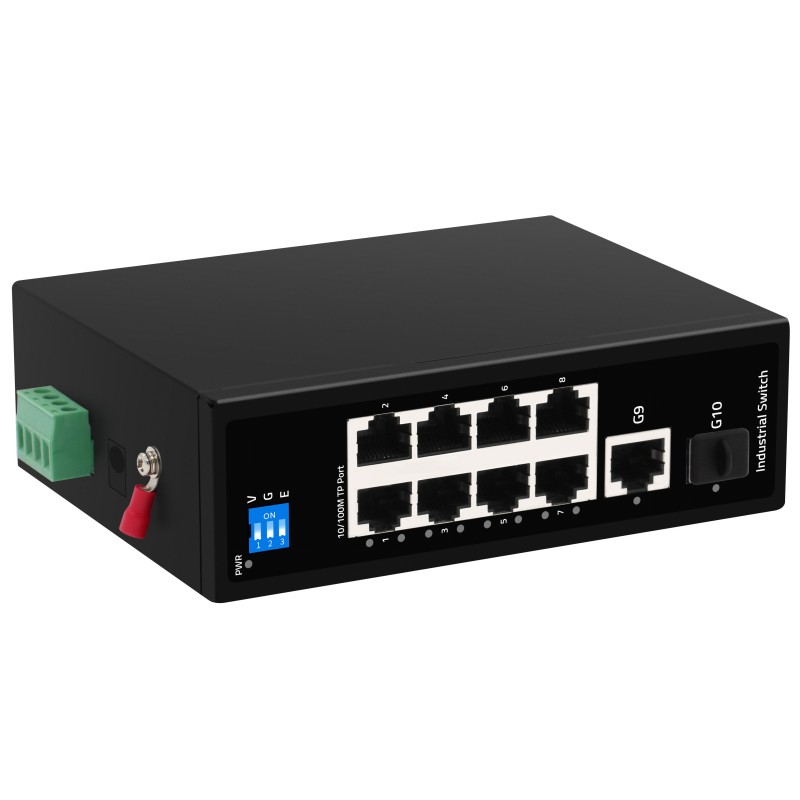

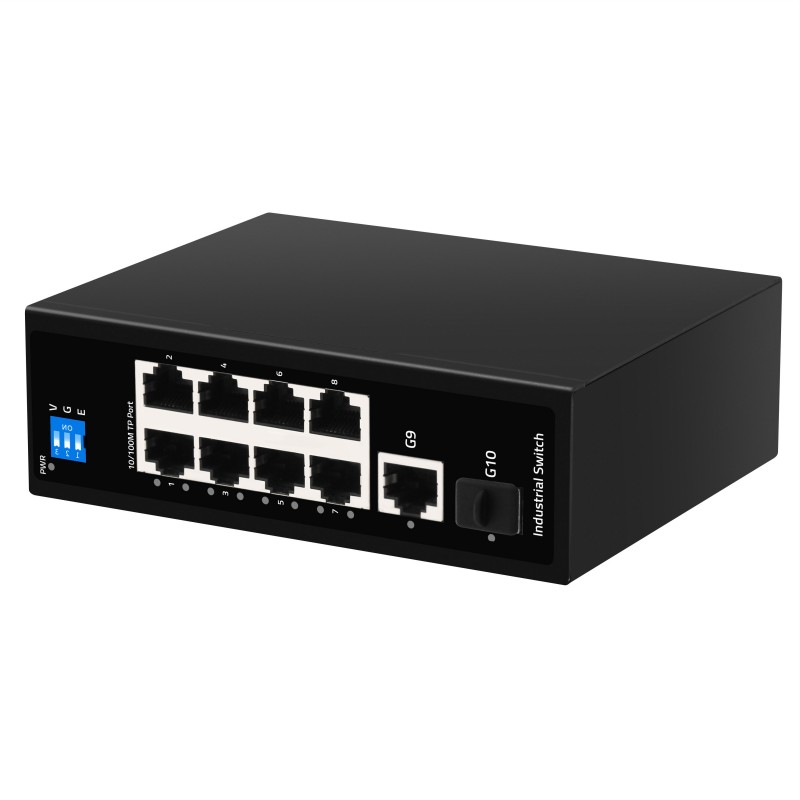

SST-HGP8EH1ET1S 10 port 10/100/1000M series industrial PoE switch, support 8* 10/100M PoE
port+ 1* Gigabit Ethernet Port, and 1* Gigabit SFP port, support DIN-Rail & Wall mounts installation,
dual power supply (DC48-55V); working

temperature -40℃~ +75℃. It has passed the industrial environment certification and complies with FCC and CE

standards; support DIP switch function. The reliable industrial design can ensure that your automation system

runs without interruption and stability.

This series of industrial PoE switches can be widely used in wind, electricity, assembly automation, subway PIS,

power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other

industries, is a green low power industrial Ethernet switch.

【Main Feature】

1. Support 8* 10/100M PoE port+ 1* Gigabit Ethernet Port, and 1* Gigabit SFP port.

2. IEEE802.3af (15.4w) and IEEE802.3at (30W).

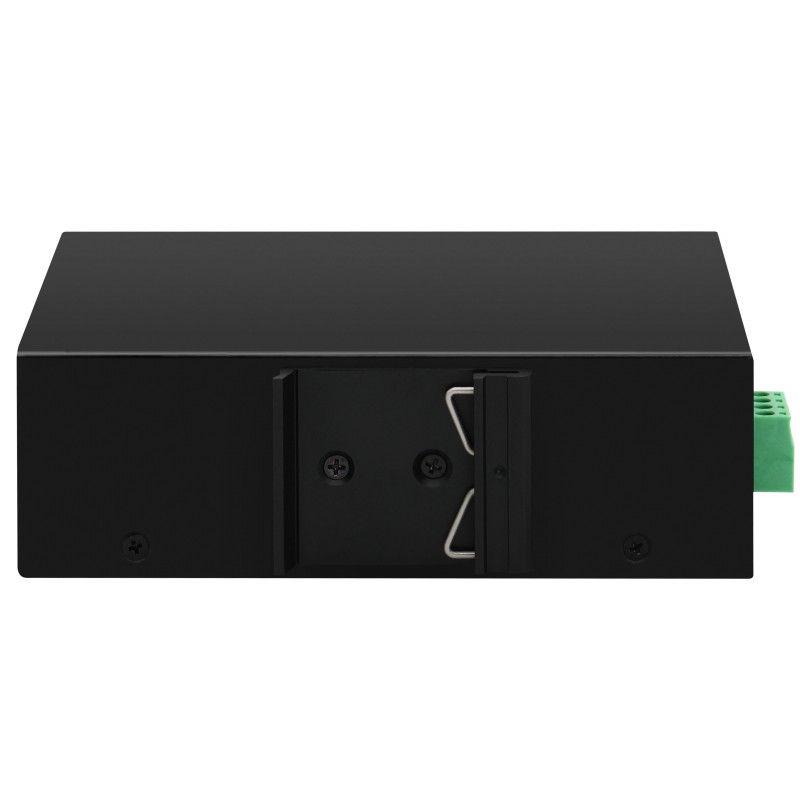

3. IIP40 protection grade, high strength iron shell, DIN35 Rail installation.

4. Industrial grade protect design, -40 to 75°C working temperature.

5. Support redundant power supply, support anti-reverse.

6. support VLAN, Extend, support DIP switch function

7. Support port Surge Protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV.

【Application Environment】

Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.

Ø Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education
and other industries.

Ø Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone
and other applications.

Ø Real-time monitoring: simultaneous transmission of real-time control signals, images and data.

Ø Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances.

【Specification】

I/O Interface
Power	DC48-55V
Ethernet	8* 10/100M PoE Ports 1* Gigabit Uplink port 1* Gigabit SFP Port
Performance
Bandwidth	5.6Gbps
Pack forward rate	4.166Mpps
MAC address	8K
Jumbo frame	9.6Kbytes
Transfer mode	Storage & forward
MTBF	100000 Hours
Standards
Network protocol	IEEE802.3 IEEE802.3u IEEE802.3z
POE protocol	PoE standard: IEEE802.3af /IEEE802.3at
	Single port max: 15.4 W (IEEE 802.3af) Single port max: 30 W (IEEE 802.3at)
	PoE compatibility: IEEE 802.3af/at self-adaptive
	PoE port output voltage: DC 48-55V
	PoE power supply wire core:1/2+ ; 3/6-
Network medium	10BASE-T: Cat3, 4, 5 UTP (≤100 m) 100BASE-TX: Cat5 or above UTP (≤100 m) 1000BASE-TX: Cat5 or above UTP (≤100 m)
Optical medium	Multi-mode fiber: 850nm, 1310nm transmission distance: 550m/2Km Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km
Certificate
Safety certificate	CE, FCC, ROHS
Environment standard
Working environment	Working temperature: -40～75℃ Storage temperature: -40～85℃ Humidity: 5%~95 % (non-condensing)
Indicator

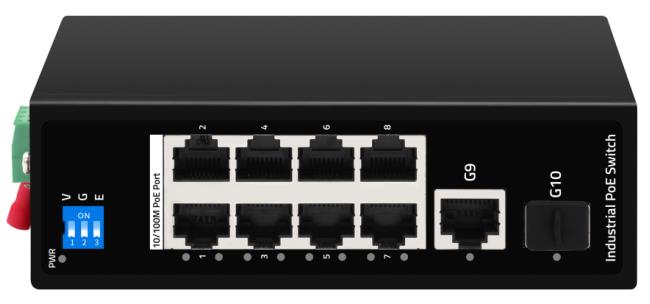

LED Indicator	PWR, 1-8 green light, G10
PWR	On: Powered on Off: Powered off
1-8 green light	Slow flashing: 10/100M link normal Off: Link off Fast flashing: Link data transmitting
G10	On: Optical connecting properly Off: Optical off Flashing: Optical data transmitting
DIP function	V, G, E (Up open, down close)
V	V: VLAN mode, ports 1-8 are isolated and can communicate with port 9 and 10
G	G: Normal mode
E	E: Extend mode, ports 1-8 are reduced to 10M and can be extended to 250m
Physical specification

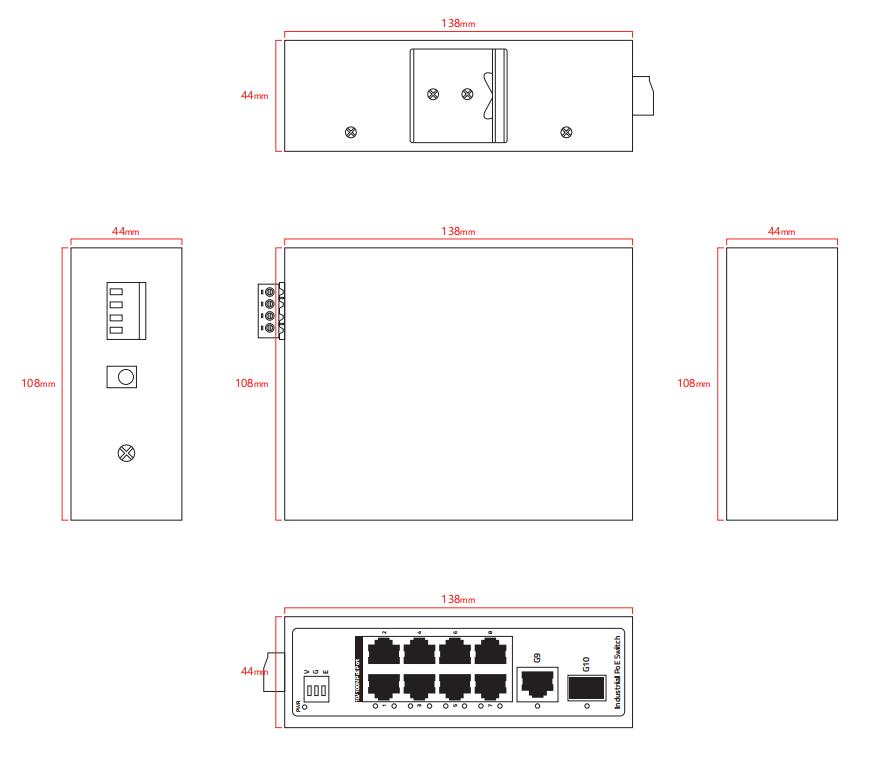

Structure size	Product dimension: 13810844 mm Package dimension: 24519060mm Product N.W: 0.646 KG Product G.W: 0.781 KG (without power)
Packing info	Carton MEAS: 520320400mm Packing Qty: 20 PCS Packing Weight: 17.62 KG
Power voltage	Voltage input: DC48～55V Power cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/ DC 2.1
Packaging list	1. Industrial Switch: 1 PC 2. User Manual: 1 PC 3. Certification: 1 PC 4. Pull-arm: 1 PC
