Products >> 2.5G switch >> 2.5G POE switch

  • 5 Ports 2.5G Poe Switch
  • 5 Ports 2.5G Poe Switch
  • 5 Ports 2.5G Poe Switch
  • 5 Ports 2.5G Poe Switch
5 Ports 2.5G Poe Switch 5 Ports 2.5G Poe Switch 5 Ports 2.5G Poe Switch 5 Ports 2.5G Poe Switch

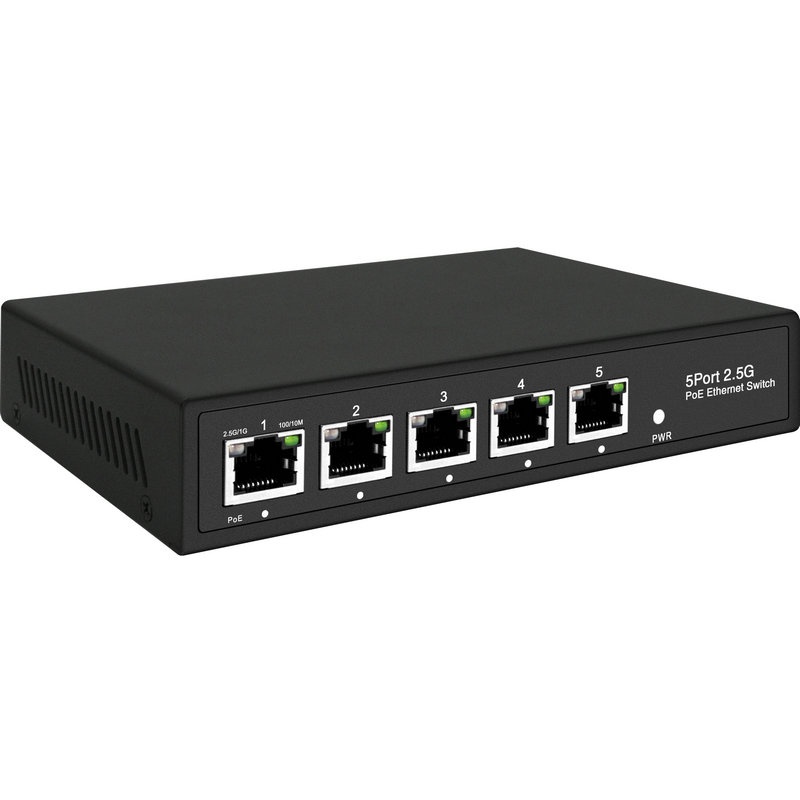

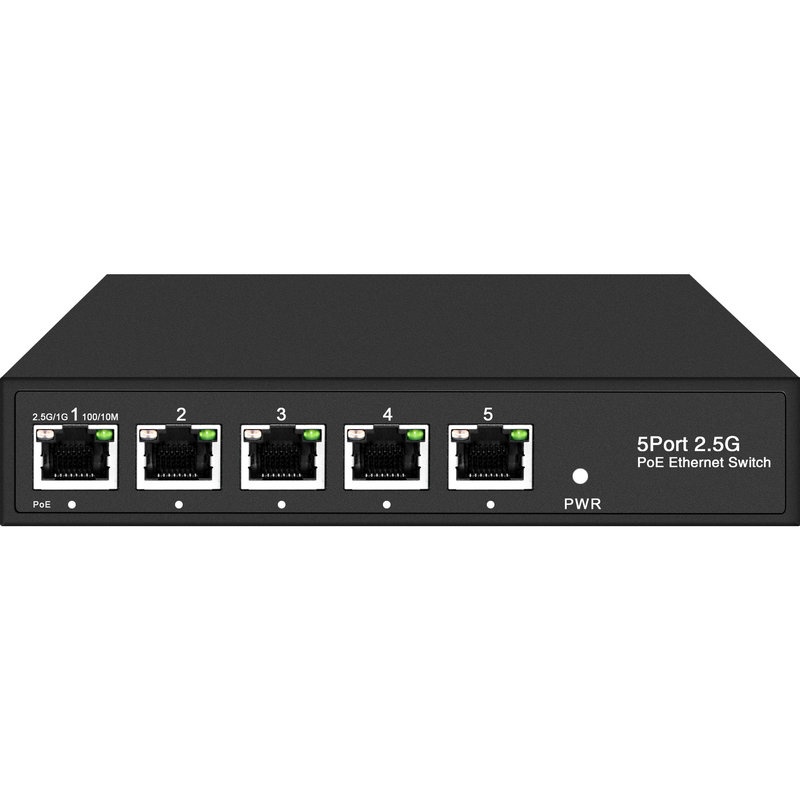

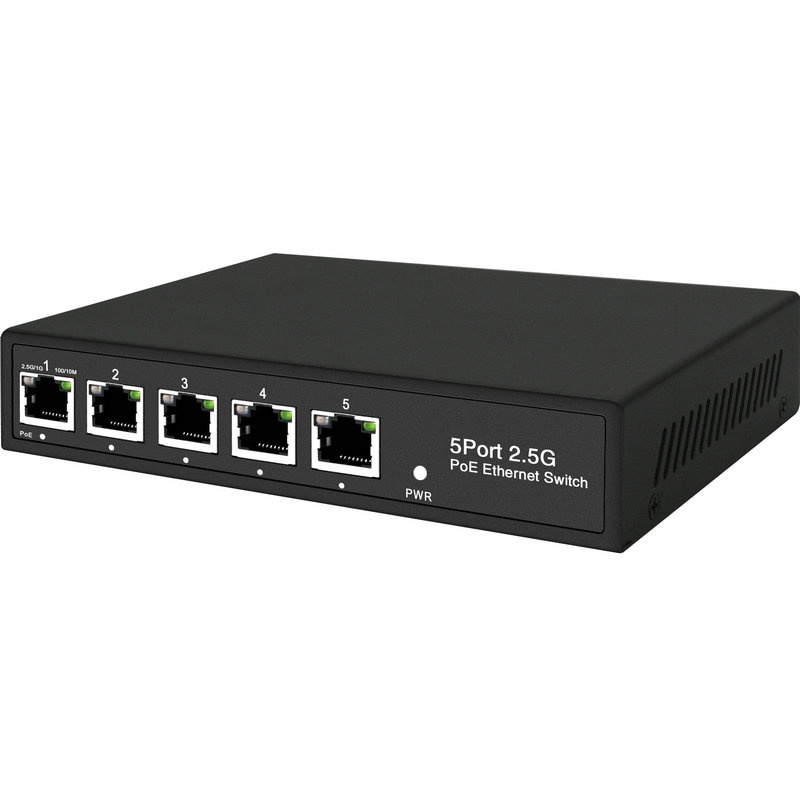

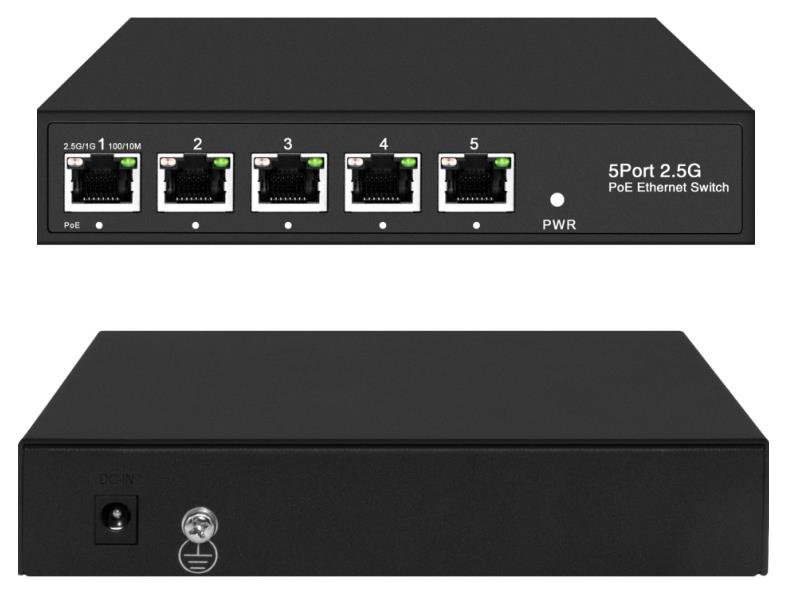

5 Ports 2.5G Poe Switch

【Product overview】

Sunsoont 5 ports 2.5G Poe switch adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise of small switches deployed in the office environment. The switch has 5* 2.5G RJ45 POE ports, providing seamless connection to 10/100/1000M/2.5G Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.

【Main Feature】

5 * 2.5 G RJ45 POE port

Support IEEE 802.3、 IEEE802.3u、 IEEE 802.3ab、 IEEE 802.3bz、 IEEE 802.3ae IEEE 802.3x

Ethernet port support 10/100/1000 m / 2.5 G adaptive

Supports automatic port rollover(Auto MDI/MDIX)

Panel indicators monitor working status and assist in fault analysis

Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

Support lightning protection: common mode 6KV; Electrostatic air 8KV, contact 6KV

【Application environment】

Ø Metropolitan area optical fiber broadband network: telecom, cable TV, network system integration, such as number, according to network operators

Ø Broadband private network: applicable to financial, government, oil, electric power, public security, education and other industries private network

Ø Multimedia transmission, image, voice and data integrated transmission, for remote teaching, meeting TV, video phone and other applications

Ø Real-time monitoring: real-time control signal, image and data transmission

【Technical index】

Input/output interface


DC 52V/1.25A


5*2.5G RJ45 ports


Backplane bandwidth


Packet forwarding rate




MAC address table


Jumbo frame


Forwarding mode

Store forward


100000  Hour

Network parameter

Network protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab(Gigabit Ethernet)

IEEE 802.3z(Gigabit Ethernet)

IEEE802.3x (Flow control)

Industry standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)、


Network medium

10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)

100Base-TX: Cat5 or higher UTP/STP(≤100m)

1000Base-TX: Cat5 or higher UTP/STP(≤100 M)

Optical fiber medium

Multimode optical fiber: 50/125, 62.5/125, 100/140um

Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um


Safety certification


Environmental standard

Working environment

Operating temperature: -10~50°C

Storage temperature: -40~70°C

Operating humidity: 10%~90%, no condensation

Storage humidity: 5%~90%, no condensation

Functional indication

PWR(Power indicator)

On: Powered on

Off: Powered off

1-8 Network port green indicator

On: 2.5G Link connect normal

Off: Link off

Flashing: data transmitting

1-8 Network port  yellow indicator

On: 10/100/1000M Link connect normal

Off: Link off

Flashing: data transmitting

Physical specification

Structural dimension

Product size: 160*112*31mm

Package size: 193*131*91mm

Product weight: 0.58KG

Packing weight: 1.09KG

Operating voltage

Adapter input voltage: AC 100-240 V    Switch input voltage: DC 52V1.25A

Packing list

1. Switch 1pcs、

2. Specification 1pcs、

3. Certificate of qualification 1pcs、

4. Power adapter 1pcs

Order Information


5 Ports 2.5G POE Switch
