Products >> Fiber Optical Equipments >> Fiber Optical Media Converter

  • Netlnk 100Mbps media converter
  • Netlnk 100Mbps media converter
  • Netlnk 100Mbps media converter
Netlnk 100Mbps media converter Netlnk 100Mbps media converter Netlnk 100Mbps media converter

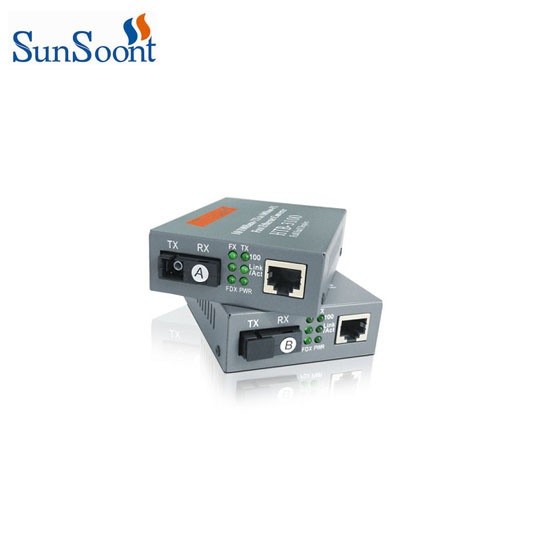

Netlnk 100Mbps media converter

Product Overview:
Netlink Fiber Optical Media Converter with 10/100M is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The fiber mode have single mode single fiber, single mode dual fiber, multi mode dual fiber, and transmitting distance 550m~100km. The performance and quality of the products are excellent because of adopting imported chipset. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is widely used in community network construction, broadband campus network, intelligent broadband, security monitoring system, broadband cable network, and FTTH, etc. It is easy for end-users to observe the conditions of network.

Product Features:
  • Support the switch between 10/100Base-T and 100Base-SX/LX
  • 1*155Mbps full duplex fiber port, 1*10/100M adaptive Ethernet port
  • Support 10/100M rate, support MDI/MDI-X adaptive, support full/half duplex adaptive
  • Warranty time: 3 years
  • Support high performance QoS function on each port
  • MAC Table Size: 2K
  • Buffer Space: 1Mbit
  • Back bandwidth: 400M
  • Support 9K bytes Jumbo Packet
  • Low time delay, data isolation function
  • Each port has the complete LED Indicator light
  • Support IEEE802.1d Spanning Tree
  • Require no configuration and will instantly operate as soon as you power it up
  • Small volume, saving shipping cost
  • Low power consumption chip with heat sink built in to ensure long time efficient operation.

Product Technical Parameter:


Product Name

10/100M Netlink Media Converter

Product Model



Fiber Port: 1* 155Mbps SC/ST/FC Optional

RJ45 Port: 1*10/100Mbps, Auto MDI/MDI-X

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)


Fiber Media

Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)

Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)

Forwarding Mode


MAC Table Size:


Operating standard

EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x



Input:AC 100~250V(default)

Output:DC 5V 1A (default)


USB power supply(Optional)

Power consumption



Power,Link/Act, TX 100,10,FDX, Link/Act.

Working Environment

Working temperature: -10~55 ;

Storage temperature: -20~70℃

Relative Humidity: 5%~95 %( no condensation)


DIN-Rail or Wall mounts,Optional,Default device is not

Packing List

1× Media Converter

1×User Manual/Certificate of quality/Warranty card

1×power adapter


100,000 hours

Weight & Size

Product Weight: 0.5 KG

Packing weight: 0.9 KG per pair

Product size (L×W×H): 94.5*70*26mm

Packing size(L×W×H):215*138*56mm/pcs


3 years
