Products >> Wireless Network Devices >> Wireless Repeater

  • 1200Mbps wireless repeater
  • 1200Mbps wireless repeater
  • 1200Mbps wireless repeater
  • 1200Mbps wireless repeater
1200Mbps wireless repeater 1200Mbps wireless repeater 1200Mbps wireless repeater 1200Mbps wireless repeater

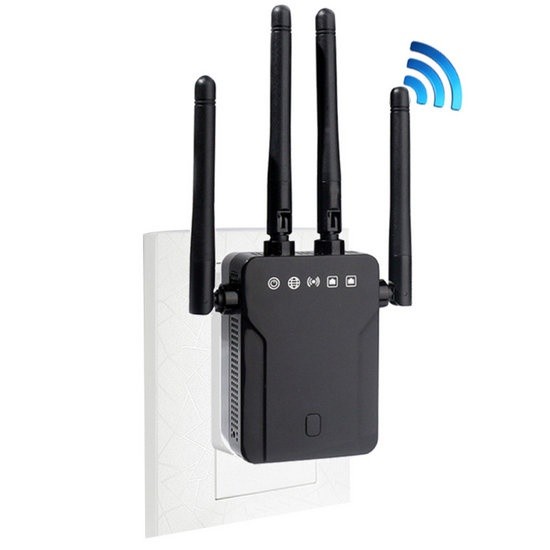

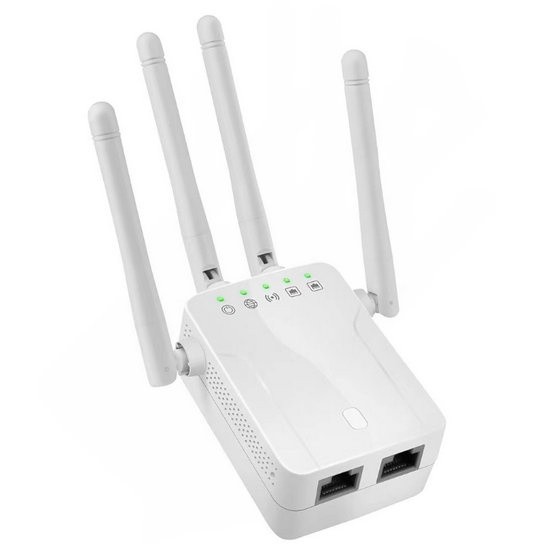

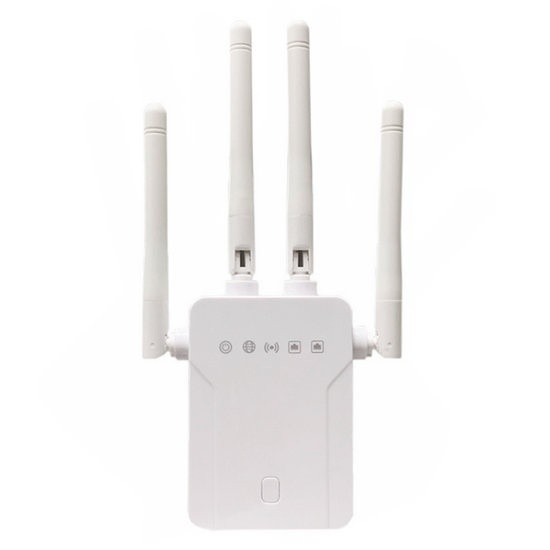

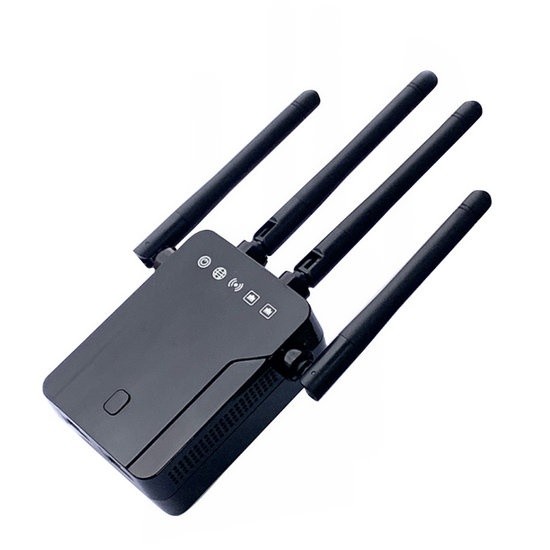

1200Mbps wireless repeater


SST-WR122DN is a relay signal amplifier that uses the latest 11AC dual-band wireless WIFI standard technology; the repeater can search for network signals in 2.4G and 5G frequency bands at the same time, and the maximum transmission rate is 1200Mbps (2.4G/300Mbps and 5G/ 867Mbps); Use 5GHz channel to transmit data with low interference and excellent performance. Allows you to wirelessly enjoy high-speed Internet surfing like a wired network.

SST-WR122DN is equipped with four external antennas to provide better wireless performance, transmission rate, and stability. The technology automatically avoids the use of channel conflicts, channel selection features, expand and strengthen your wireless signal, allowing you to enjoy wireless freedom. In addition, it is equipped with 2 Ethernet ports (10/100Mbps) to allow the extender to be used as a wireless adapter to connect to wired devices. You can directly connect to devices such as Xbox, PC or Mac. It can maintain multiple simultaneous high-definition streaming media and online games. And other content consumption

SST-WR122DN adopts a three-sided heat dissipation design, which greatly improves the heat dissipation effect of the machine when it is working, and effectively ensures the stability and life of the machine for a long time. The machine supports two working modes, (AP and relay mode); users can set up freely according to their needs and enjoy network services.

SST-WR122DN adopts professional interactive design with minimalist style. The setting is easy and easy to use, wireless expansion only requires 3 steps, and the advanced transparent bridge mode allows you to access the local area network more conveniently.



1, Wireless standard: IEEE802.11AC, at the same time backward compatible with IEEE802.11B/G/N

2, Frequency: Support 2.4GHz &5.0GHz at the same time

3. Up to 1200Mbps transmission rate

 4. With four external antennas, the relay signal is more stable

 5. RJ45 network port supports wired access

 6, WPS one-key encryption button

 7, Three-sided heat dissipation design ensures that the extender cools quickly while working, improving the service life and WiFi stability

 8, The small size and wall-mounted design make it easy to deploy and move flexibly, and does not take up more space for you

 9, Simple and friendly operation interface, eliminating tedious configuration

10, Two working modes of relay/AP

Product Technical Parameters:


IEEE 802.11ac,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Wireless Signal

Rates With

Automatic Fallback

11ac: Up to 867Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Frequency Range

 2.4 GHz & 5.8GHz


Transmit Power


Modulation Type


Receiver Sensitivity

MSC7- HT20:-68dBm@10% PER

OFDM-54M:-68dBm@10% PER

CCK-11M: -89dBm@10% PER

Wireless Security

 64/128 bit WEP , WPA-PSK/WPA2-PSK, 802.1X


 2*10/100M LAN

Antenna Type

 4* 3dBi Antenna

Power supply

 Input AC100~240V, 50 / 60Hz

Operating Temperature

 0°C~40°C (32°F~104°F)

Storage Temperature

 -40°C~70°C (-40°F~158°F)

Package size


Gross weight
