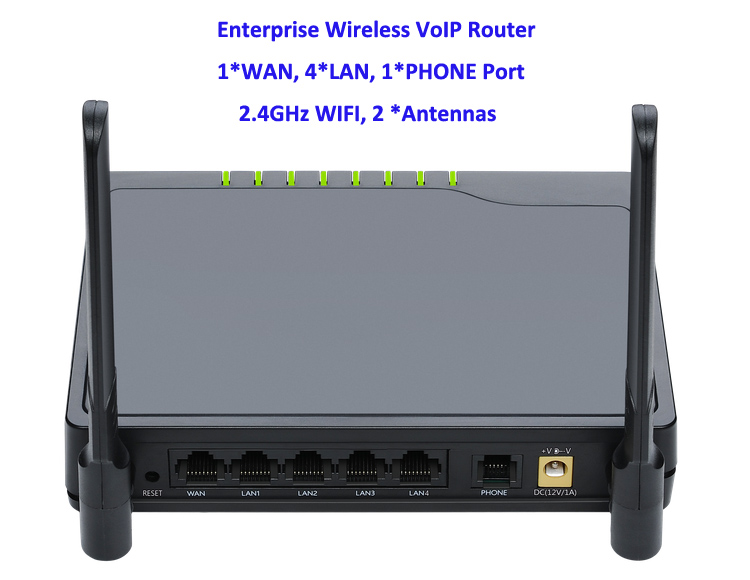

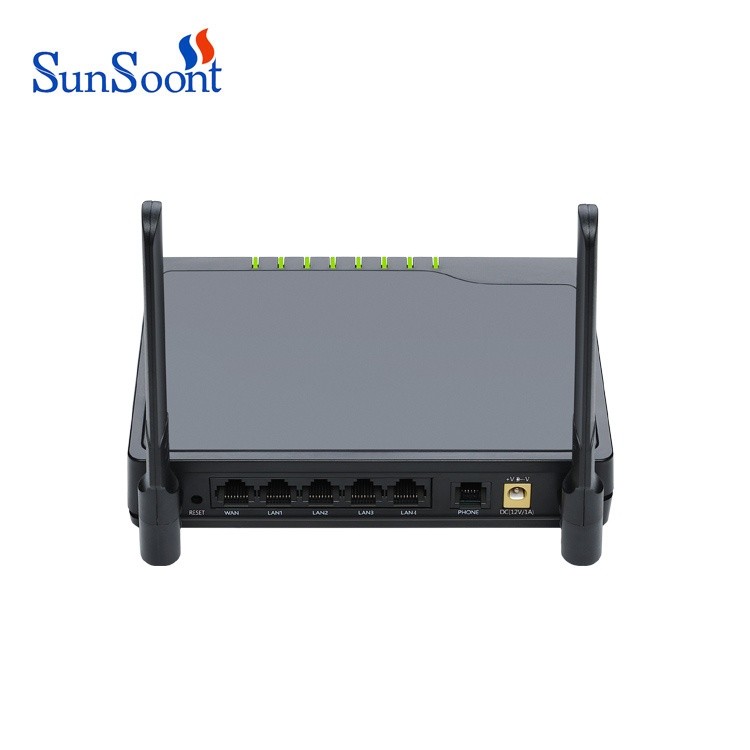

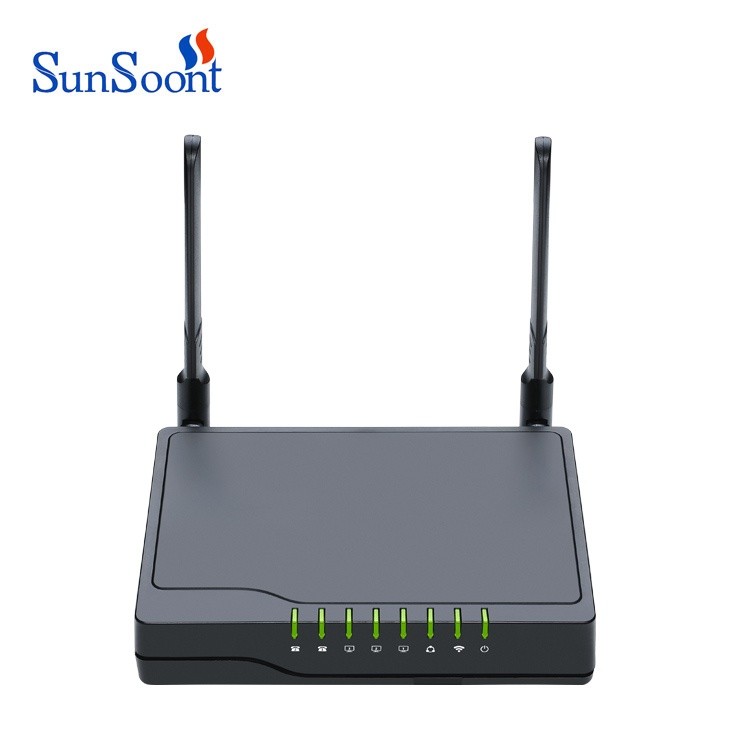

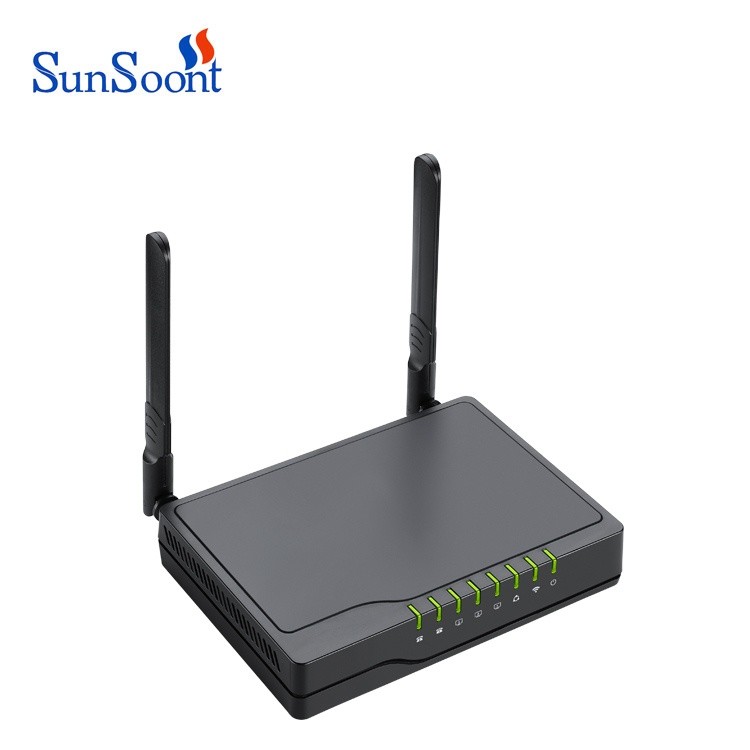

VoIP Wireless Router
- Product No.：FWR8101
Feature Keys
• Support QoS
• 10/100Mbps Ethernet
• Support 2.4GHz 300Mbps Wi-Fi
• Real-time IP fax, T.38 and T.30
Technical Parameters
|
Flash
|
• 16MB Flash
|
| RAM |
• 128MB DDR2 RAM
|
|
Power
|
• AC/DC Adapter
AC Input: 100~240V, 50~60Hz
DC Output: 12V, 1A
|
|
Operating System
|
• Linux 2.6.36
|
|
I/O Interfaces
|
• 1 RJ-45 WAN Port (Ethernet 100 Base-T)
• 3 RJ-45 LAN Ports (Ethernet 100 Base-T)
• 1 RJ-11 FXS Ports
|
|
Environmental
|
• Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing
|
|
Audio Codec
|
• G.711(A/u),PESQ>4
• G.729AB,PESQ>3.6
• Adaptive Jitter Buffer Management
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation
• T.30 FAX with G.711
• Real time FAX over IP via T.38
|
|
Feature Key
|
• 2T2R 2.4G 802.11 b/g/n(300 Mbps)
• Support VoIP FXS port with SIP and T.38 FAX
|
|
Protocols
|
• SIP V2.0 (RFC 3261)
• Backward compatible with RFC2543
• Session timer (RFC4028)
• SDP (RFC2327)
• RTP/RTCP (RFC1889/RFC1890)
• NAPTR for SIP URI lookup (RFC2915)
• STUN (RFC2030)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• HTTP Server for Web Management
• TFTP/HTTP/HTTPS for Auto Provisioning
• Message Waiting Indicator (RFC3842)
• DHCP Option Codes for SIP (RFC3361)
• DNS/DNS SRV (RFC1706 and RFC 2782)
• TR069 (TR098,TR104)
• IEEE802.1Q VLAN/802.1p/DSCP
• SNMP v2
|
|
Applications
|
• Support NAT mode and Bridge mode
• Support DDNS
• MAC address cloning
• SIP proxy redundancy
• NAT Traversal by STUN
• Built-in Wired speed NAT Router
• DHCP Server and Client
• IP conflict detection
• Port Forwarding, DMZ, SuperDMZ
• 802.1Q VLAN/802.1p, DSCP, Rate Limiting
• VPN(PPTP,L2TP, OpenVPN) Passthrough,IPSec
• SNTP
• IGMPv2
• Firewall(DDoS attack)
|
|
Wireless
|
• 802.11 b/g/n support
• 4 SSID
• Static WEP(64/128bit)
• Dynamic WEP(64/128bit)
• AES(CCMP/TKIP)
• MAC certification
• WEP certification
• WPA-PAK/WPA-PSK(2.0)
• WPA/WPA2
• AP Isolation and MBSSID AP Isolation
• WMM
• WDS
• WPS
• Station list
• MAC Filter(different from wired MAC Filter)
|
|
Call Features
|
• 3-way conference
• Call hold
• Call forwarding
• Call Transfer
• Call waiting
• DTMF Relay: In-band, RFC2833 and SIP INFO
• QoS Layer 3
• Call Log
• CID/CWCID
• Dial Plan
|
|
Management
|
• Firmware Upgrade
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level • SNMP v2
• Telnet
• TR069
|
|
SIZE And Weight
|
• 158mm(L)x140mm(W)x29mm(H)
• 225g (N.W)
|
