Products >> VOIP products >> VOIP router

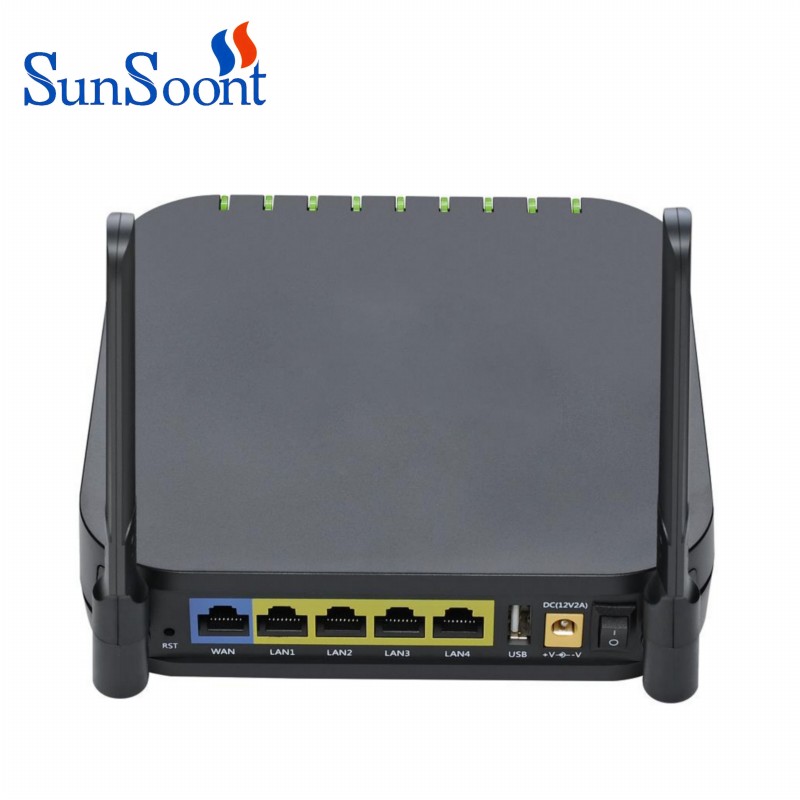

Wireless Router with 2 FXO Ports

Product No.：FPX9102H
Online Inquiry

Key Features and Benefits

Five Gigabit Ethernet ports and dual-band 1200Mbps wireless can

simultaneously provide the requirements of wired / wireless connection in the office.

It supports automatic discovery and zero-configuration IP terminals for user

deployment. It is also compatible with most network service providers, supports automatic configuration,
and TR069 remote management.

The USB 2.0 interface is connected to a U disk and can be used as a TFTP server or Samba server to
provide file storage and transmission functions.

• 2 FXO Ports

• Support 5GHz & 2.4GHz

• Support Asterisk

• 5 x 10/100/1000Mbps Ethernet Easy Deployment

• USB Storage

• Support TR069 & SNMP File storage and transmission

FPX9102H Specifications

Power	> AC/DC Adapter > AC Input: 100~240V, 50~60Hz > DC Output: 12V, 2A
Operating System	> Linux 2.6.36
Interfaces	> 1 x RJ-45 Gigabit WAN port > 4 x RJ-45 Gigabit LAN ports > 2 x RJ-11 FXO ports > 1 x USB 2.0 Port
Button	> Power button > Reset button
Environmental	> Operation Temperature: -5~45 Degree C > Storage Temperature: -25~ 85 Degree C > Relative Humidity: 10%~90% No Condensing
Audio Codec	> G.711(A/u),PAMS>4.3 > G.729A/AB, PAMS>4.0 > T.30 FAX with G.711 > Adaptive Jitter Buffer > Voice Activity Detection > Comfort Noise Generation > Echo Cancellation
Dimensions And Weight	> 153mm(L)x153mm(W)x35mm(H) > 330g(N.W)
Wireless	> 802.11 b/g/n 300Mbps MIMO > 802.11 a/an/ac 867Mbps MIMO > 8 SSID > Security Mode: OPENWEP (64/128bit), WPA- PSK/WPA2-PSK, WPA-PSK, WPA2-PSK > AP Isolation and MBSSID APIsolation > WMM > WDS > DHCP Client list > MAC filtering (different from wired MAC filtering)
Management	> Firmware Upgrade > Web Management Interface > Local and Remote Syslog (RFC3164) > Auto Provision > SNTP Time Synchronization > Multi User Level > SNMPv2 > TR069 > FACS > Network diagnosis
Protocols	> SIP V2.0 (RFC 3261) > Backward compatible with RFC2543 > Session timer (RFC4028) > SDP (RFC2327) > RTP/RTCP (RFC1889/RFC1890) > NAPTR for SIP URI lookup (RFC2915) > STUN (RFC3489) > ARP/RARP (RFC 826/903) > SNTP (RFC 2030) > TFTP/HTTP/HTTPS for Auto Provision > Message Waiting Indicator (RFC3842) > DHCP Option Codes for SIP (RFC3361) > DNS/DNS SRV (RFC1706 and RFC 2782) > TR069 (TR098,TR104) > IEEE802.1Q VLAN/802.1p/DSCP > SNMP v2
Applications	> Support Asterisk > SIP trunk > IVR > IPv6 > VPN: PPTP, L2TP, OpenVPN > DDNS > QoS > Static route > Firewall > 2 PSTN Trunks(FXO ports)
FXO port features	> Busy tone detection > No current streak detection > Voice interrupt detection > One-time dialing > Dial two times > PSTN Outside Port Poll > Incoming call detection (Bellcore Type1&2, ETSI, DTMF) > FAS (Fake billing correction) > AC / DC impedance configuration
