Products >> Wireless Network Devices >> Wireless AP

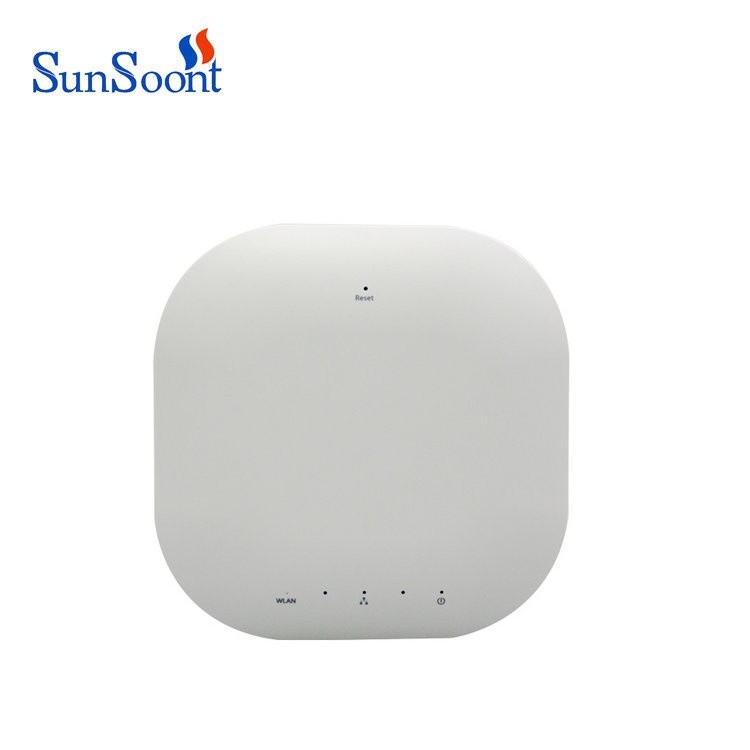

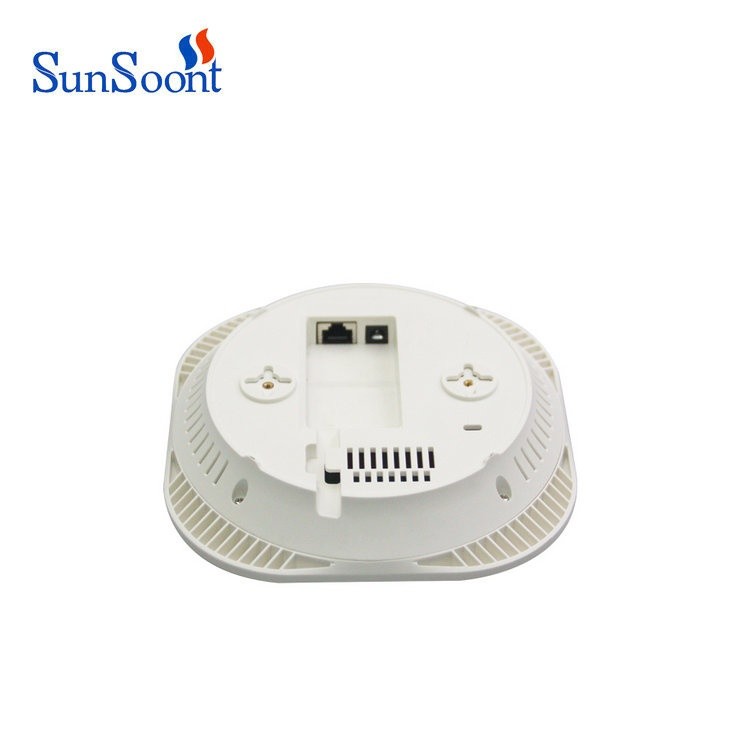

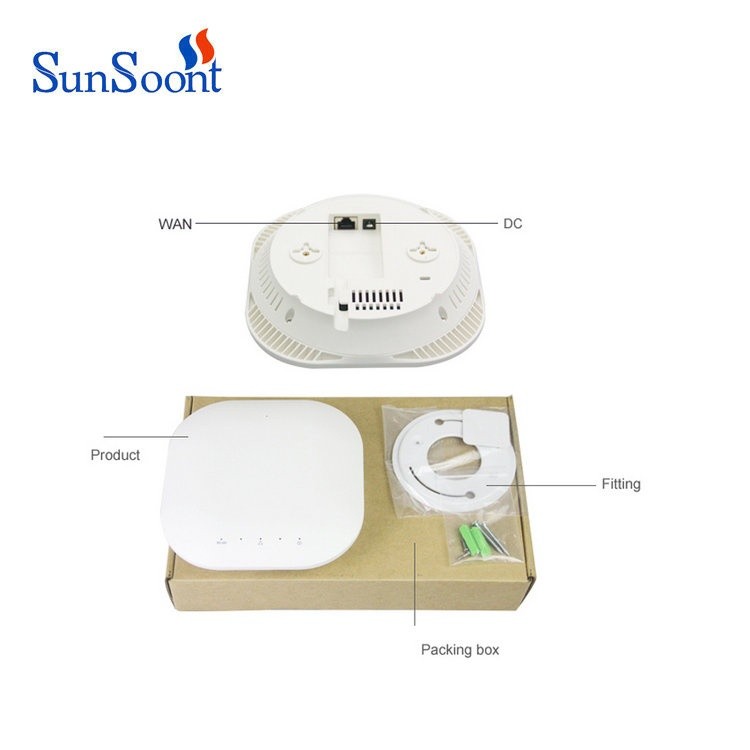

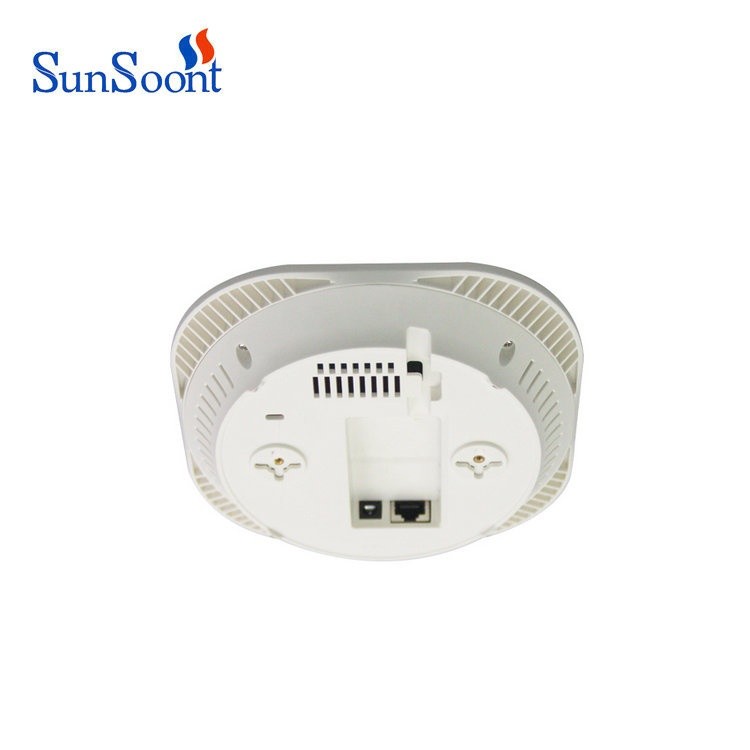

Indoor ceiling access point AP 750Mbps dual band
- Product No.:SST-270CA

SST-270CA 11ac Ceiling Wireless Access Points equipped with Qualcomm Chipset, it is specifically designed to operate in
Residential and commercial applications. Comply with IEEE 802.11ac/n/g/b standard, it is 2.4GHz and 5GHz dual radio,
with data rate up to 750Mbps(300Mbps in 2.4G, 433Mbps in 5G), enable users to enjoy more stable and faster Ethernet
surfing even access into 80+ end users.
Designed in two line Power Amplifier and Low Noise Amplifier on PCB board, the power can be 800mW high power, 5dBi
MIMO high gain antenna, greatly increased the wifi range and reduced the noise interference. It also supports intelligent
channel analysis and automatic selection of optimal channels to reduce interference and delay and provide stable wireless
network signals.
Dual band high speed with MU-MIMO Wave2 technology, fit for many environments which request for multiple users access,
like airport/ pier/ school/ station/ meeting hall.
In addition, the BL270Q has integrated IEEE 802.3at standard Power over Ethernet (PoE), can achieve 100+ meters network
cable power supply, housed in a stylish ceiling mountable case, for easy installation and lower cost.
Based on CAPWAP protocol, centralized managed by WLAN control, plug and play, simple operation, zero configuration in
large quantity installation. What’s more, it can access into cloud server for remote management.
Product Feature:
1.802.11ac MU-MIMO Wave-2 Technology, faster and more internet access.
2.AP supports VLAN management across three layers.
3.Support Multi SSID, SSID VLAN isolation.
4.Seamless roaming, load balancing.
5.Spectrum navigation, 5G priority.
6.Separation of business and management IP.
7.AP alarm and rescue, AP tracking.
Model |
SST-270CA |
|
Hardware |
||
Interfaces |
10/100Mbps LAN*2 |
|
Data Rate |
750Mbps |
|
Frequency Range |
2.4G:2400Mhz~2483Mhz 5.8G:5100Mhz~5900Mhz |
|
Standards |
IEEE802.11ac Wave-2 /a/b/g/n |
|
Modulation Type |
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
|
Wireless Transmit Power |
11n 2.4G 25dBm(adjustable) 11n 5G 23dBm(adjustable) 11ac 2.4G 23dBm(adjustable) 11ac 5G 22dBm(adjustable) |
|
Antenna |
5dBi 2*2 |
|
Operating/Storage Temperature |
Operating Temperature |
-10~50℃ |
Storage Temperature |
-40~70℃ |
|
Humidity |
≤90%(Non-condensing) |
|
Power Supply |
48V PoE(IEEE802.3af/at) |
|
Power Consumption |
≤15W |
|
Installation |
Ceiling Mounted |
|

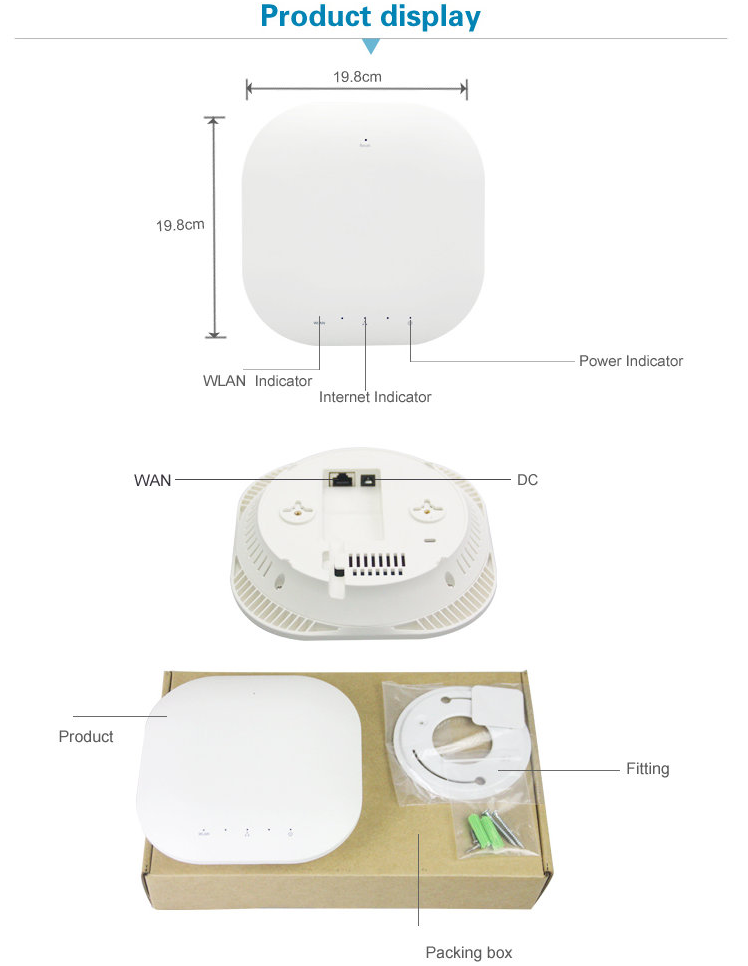

Dimensions |
188*188*40mm |
|
Weight |
0.5kg |
|
Software |
||
Recommend Users |
80(best user experience) |
|
Userlimit |
Support |
|
Timing Reboot |
Support |
|
Power adjustment |
Support |
|
Channel selection |
Support |
|
Virtual AP |
Support,Up to 8 SSID |
|
Multi SSID |
Support |
|
SSID hidden |
Support |
|
RF disabled |
Support |
|
Spectrum navigation |
Support,5G priority |
|
SSID VLAN |
Support |
|
AP tracking |
Support |
|
AP alarm and rescue |
Support,When the wireless AP detects some abnormalities and cannot recover, it releases a rescue SSID signal starting with “SOS” and ending with the the last six digits of the AP’s MAC address; the wireless network maintenance personnel can log in to the AP by connecting the rescue SSID, and diagnose the fault with one button. |
|
Channel optimization |
Support |
|
Load balancing |
Support |
|
Seamless roaming |
Support |
|
AP Online Update |
Support |
|
Cloud AC management |
Support |
|
Local AC |
Support |
|
AC Offline |
Support,Communication between AC and AP is interrupted, Internet access is not affected, and users are not aware. |
|
Grouping management |
Support AP Grouping management |
|
IP batch modification |
Support,The management IP of the AP can be modified in batches in the AC. |
|
Password bulk modification |
Support, AP login password can be modified in batches in AC |
|
Maintenance mode |
Support local maintenance and cloud maintenance |
|
System Login |
Default IP Address:6.6.6.6 Password:admin |
