Product Introduction:

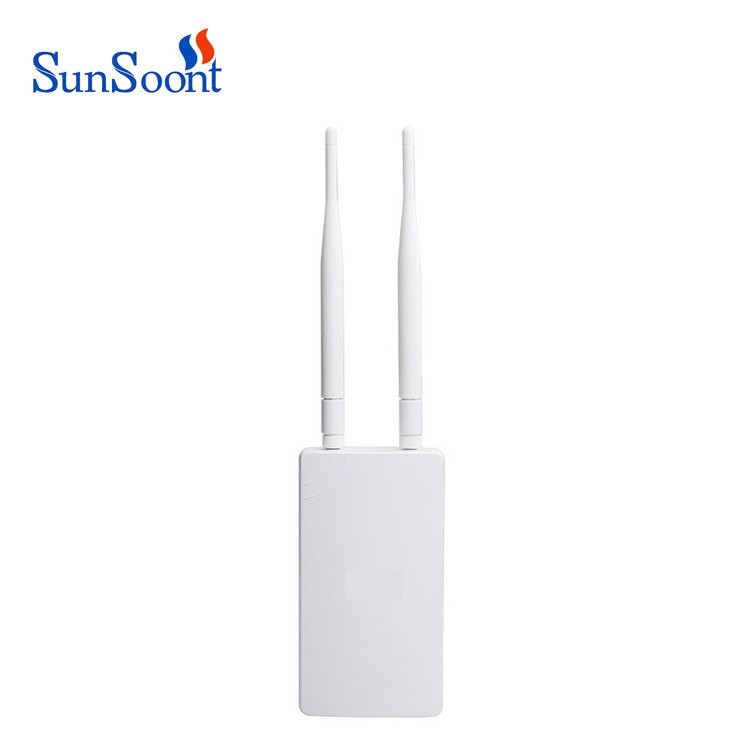

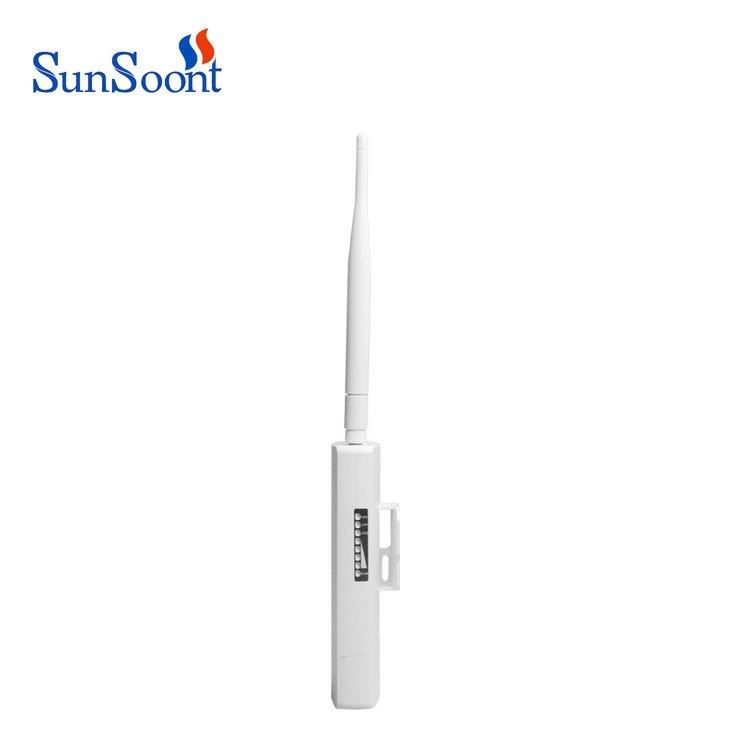

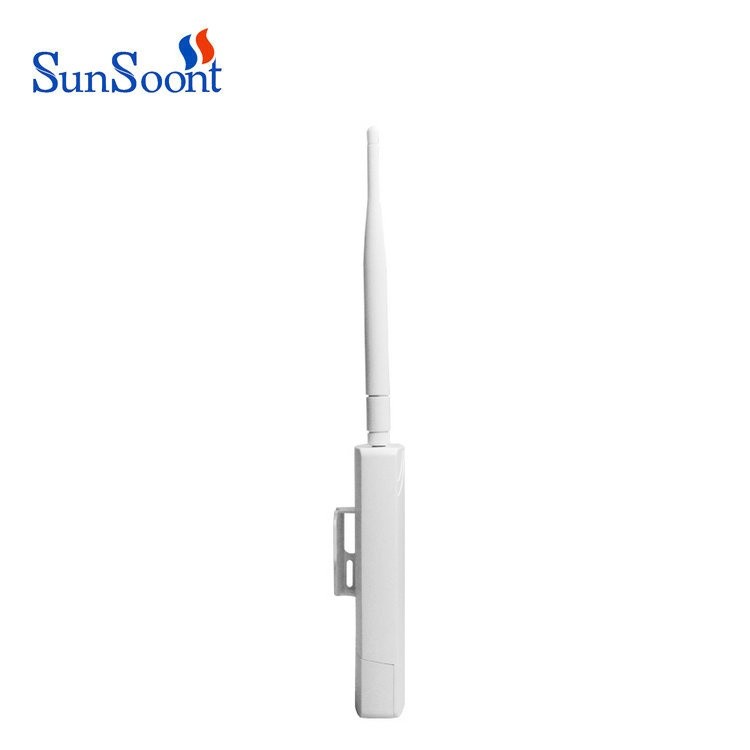

SST-85HW is a high performance, cost-effective outdoor access point AP product.

Designed with Qualcomm QCA9531 chipset, 16M flash memory /128M memory, 100 Mbps network interface, output power up to 500mw.

Support 2.4g 802.11n MIMO technology wireless speed up to 300Mbps, can meet the needs of 32 end users at the same time.

The enclosure is designed with IP65 protection against wind, rain, dust and sun. It can easily adapt to the outdoor extreme environment
of high temperature and extreme cold.

Product Feature：

1. Very cost-effective hardware configuration

Build-in Qualcomm QCA9531 chipset, industrial grade circuit design,, support IEEE802.11b/g/n protocol, can provide
300Mbps wireless access speed, excellent anti-high and low temperature design,  enhance the user experience in extreme environment.

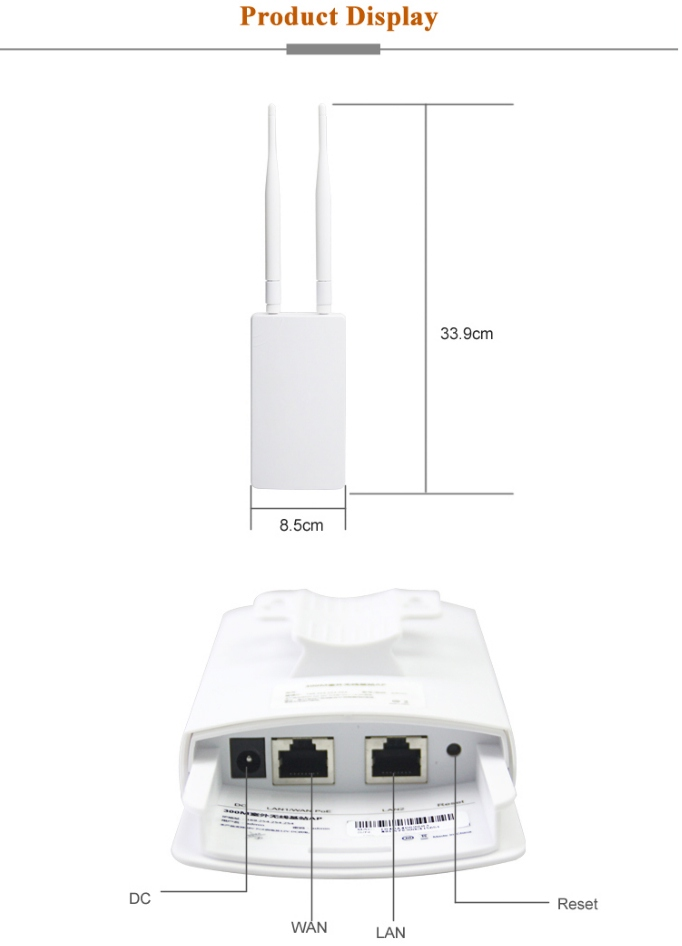

2. 100 Mbps adaptive network interface, support PoE and DC power supply

It provides LAN1/WAN PoE+LAN2 10/100mbps adaptive network interface, and supports 48V 802.3at standard PoE remote power
supply and 12V/1A local DC power supply. The power supply mode is flexible, which is suitable for various wireless engineering
scenarios with inconvenient power supply and reduces the construction cost.

3. Energy-efficient Based on the IEEE802.3 az standard hardware design, when the network is not used, the device will automatically
enter the low power consumption mode. Once a user accesses the network, it will automatically and automatically switch to the
normal mode operation. The whole process of energy saving is on the premise of not affect users, can effectively reduce the power
consumption of the 30%, save a lot of wireless network operating costs.

4.Flexible attachment matching

External RPSMA external thread and internal needle standard SMA connector, outdoor 5dBi omni-directional antenna is attached.
Users can also flexibly match other 2.4g band antennas according to different operating environments.

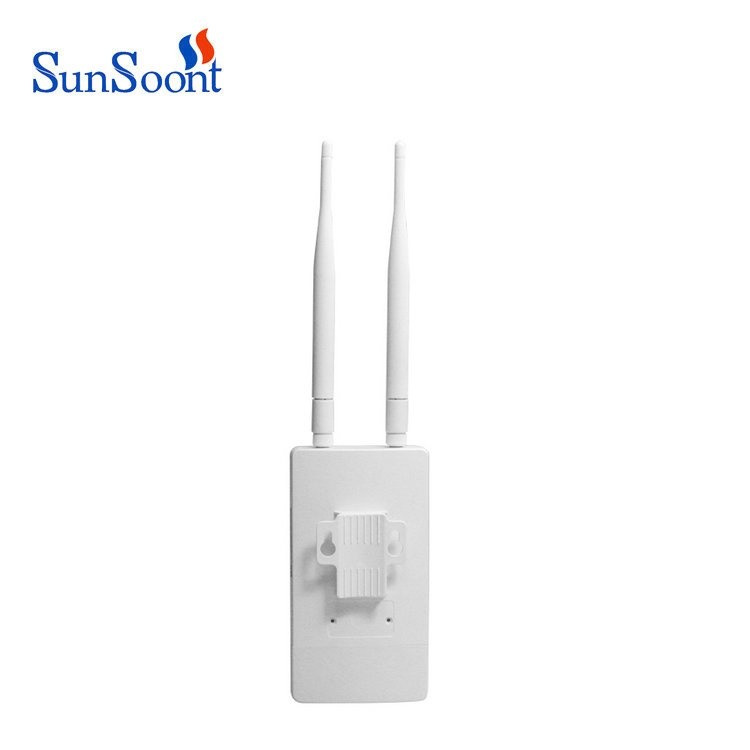

5. Stylish compact, simple and flexible installation

Stylish appearance, supports the wall/pole fixed installation mode, flexible installation, greatly reduces the construction difficulty
and improves the construction efficiency without affecting the original design.

6. IP65 dust-proof and waterproof, suitable for a variety of harsh environments

The enclosure is IP65 rated for outdoor dust, water and sun protection. It can work normally in extreme environments as low
as -10 ° C up to 55 ° C. It can easily adapt to the harsh outdoor environment and ensure stable operation of the network for 24 hours.

Product Technical Parameters:
