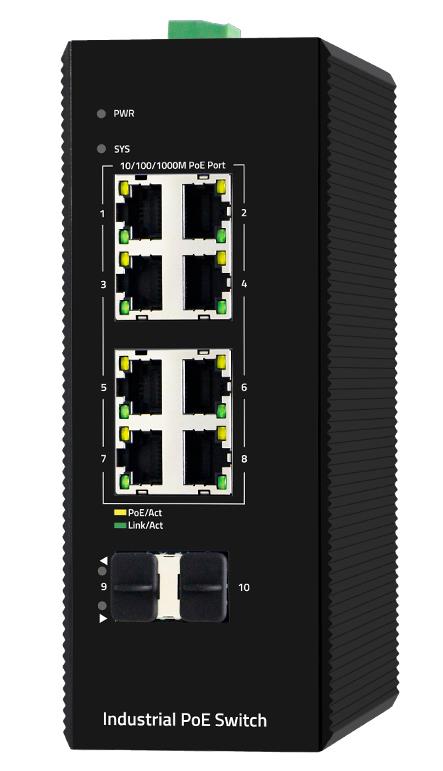

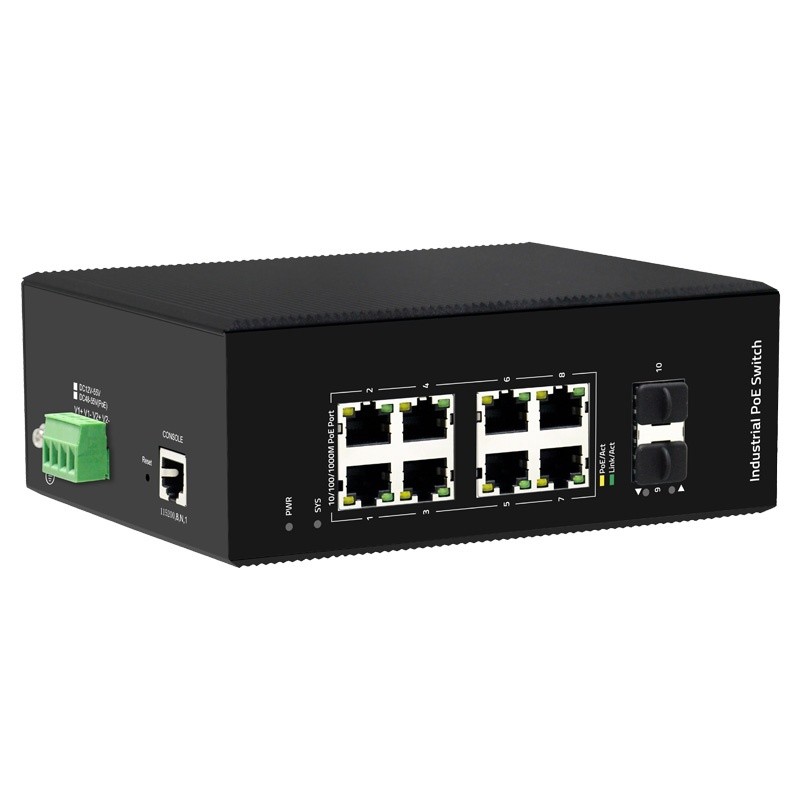

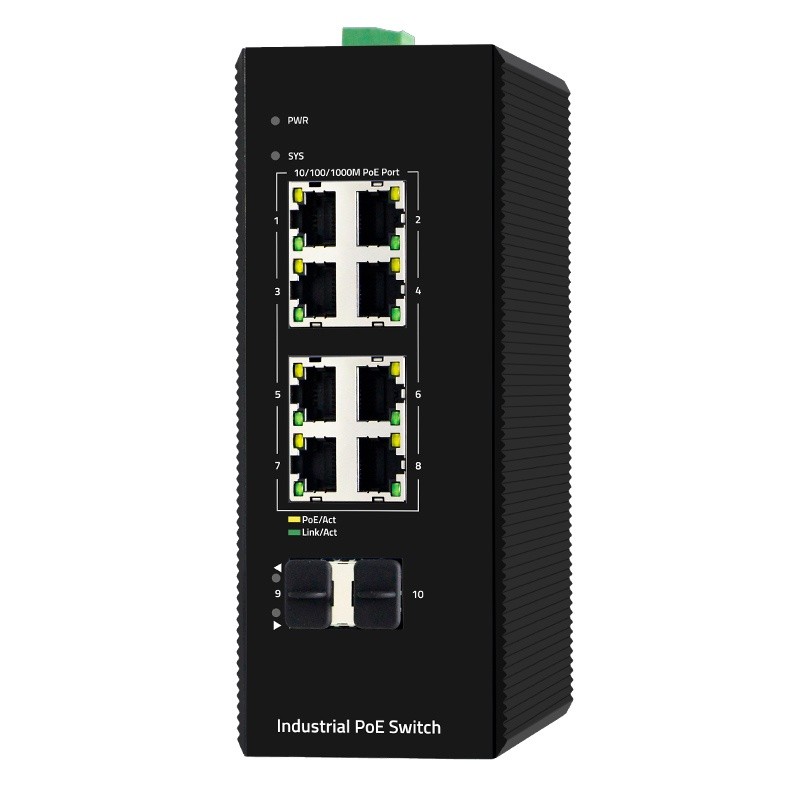

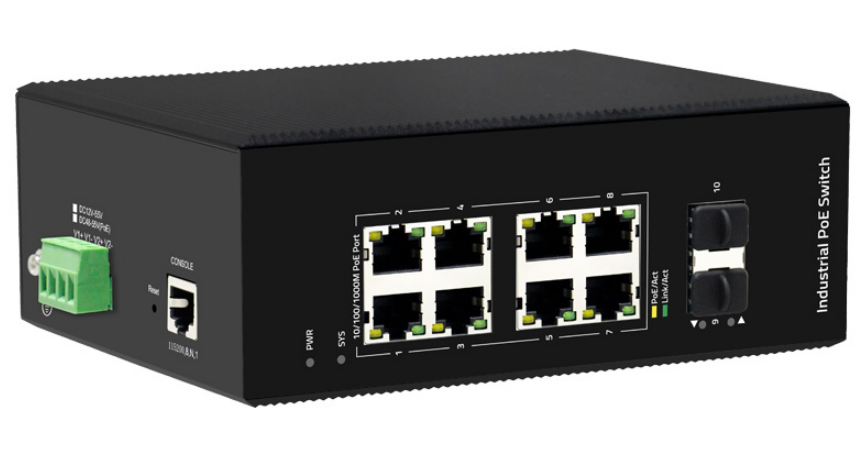

10 Ports Gigabit Industrial Managed POE Switch

10 Ports Gigabit Industrial Managed POE Switch

Product No.：SST-HGMP8ET2S
Online Inquiry

10 Ports Gigabit Industrial Managed POE Switch

【Product Description】

10-Ports Gigabit Industrial Managed POE Switch, Support 8*Gigabit POE Ports+2*Gigabit SFP Ports+1*Console Ports，support rail installation, support power input (DC48-55V), operating temperature range -40 ° C to +75 ° C, pass the industrial environment certification, and complies with FCC, CE, and
CCC standards, reliable industrial design can ensure your system uninterrupted and stable operation.

This series of industrial PoE switches can be widely used in wind power, electric power, assembly automation, metro PIS, power SCADA, sewage
treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, they are green and low power industrial switches.

This series of switches provides advanced network management functions: redundant ring network, loop protection, VLAN, QOS, speed control, port mirroring, and online firmware upgrade. With standardized industrial design, it can meet the strict requirements of industrial sites. All components are industrial grade, with higher reliability, provide redundant wide voltage power input and output, realize uninterrupted industrial safety communication。

【Main Feature】

1. 8*Gigabit POE Ports+2*Gigabit SFP Ports+1*Console Ports.

2. Support：IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3z / ab，IEEE802.1Q，IEEE802.1p，IEEE802.1d/w .

3. Support PoE power supply management, PoE Watch dog based on data flow detection.

4. Supports IEEE802.3af（15.4w) and IEEE802.3at（30W).

5. Support SNMP v1/v2/v3 simple Network Management Protocol.

6. Support IGMP Snooping and Static Multicast Filtering and MLD Snooping Filtering.

7. Support 802.1x Ports Certification and AAA Certification, enhance network security.

8. Support WEB,Telnet, CLI, SSH Management.

9. Support IP40 Protection level, DIN35 rail mounting.

10. Support industrial level 4 design, -40°C~75°C operating temperature.

11. Support redundant power supply access, support anti-reverse connection.

12. Support ports lightning protection Surge: Common mode 6KV, differential mode 2KV,: Electrostatic ESD: air 15KV, contact 8KV.

【Application】

u Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.

u Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

u Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

u Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

Resistance to harsh environment: Suitable for networking in harsh environment with strong electromagnetic interference and long distance

【Specification】

Model number	SST-HGMP8ET2S
I/O Interface
Power	DC48-55V
Ports	8* Gigabit POE Ports(90W is supported for ports 1 and 2) 2Gigabit SFP Ports 1Console Ports
Performance
Bandwidth	20Gbps
Pack Forwarding Rate	14.88Mpps
Pack Cache	4M
Memory	128MB
flash	16MB
VLANs	4096
MAC Address	8K
Jumbo Frame	9.6Kbytes
Transfer Mode	Storage & Forwarding
Standard
Network Protocol	IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.1d IEEE802.1w
POE Standard	PoE Standard : Support IEEE802.3af IEEE802.3at
	Singer Ports MAX：15.4 W (IEEE 802.3af) Singer Ports MAX：30 W (IEEE 802.3at)
	PoE Compatibility：IEEE 802.3af/at Self-adopted
	PoE Ports Putout : DC48-55V
	PoE Power supply core:1/2+ ; 3/6-
Network Medium	10BASE-T: Cat3, 4, 5 UTP(≤100 m) 100BASE-TX: Cat5 or above UTP(≤100 m) 1000BASE-TX: Cat5pr above UTP(≤100 m)
Fiber Medium	Multi-mode Fiber: 850nm, 1310nm Transmission Distance: 550m/2Km Single-mode Fiber: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km
Certification
Safety certificate	CE ，FCC，ROHS
Environment Standard
Working Environment	Working Temperature: -40～75℃ Storage Temperature: -40～85℃ Humidity: 5%~95 %, non-condensing
LED indicator light
LED indicator light	PWR，SYS，Green light，G9-G10
PWR	On: Powered on Off: Powered off
SYS	On：System is running normally Off：System is not running
1-8 Port Green Light	On: Link Connecting Flashing: Data Transmitting Off: Link Off
G9-G10	On: Optical fiber normal Off : No fiber connection Flashing : Data Transfer
Physical Specifications
Structure size	Product Dimensions： 13810844mm Package Dimensions： 24519060mm Product N.W： 0.68KG Product G.W： 0.87KG（Without Power）
Packing Information	Packing Size：520320400mm Packing Quantity：20PCS Packing Weights：18.4KG
Voltage	Voltage input: DC48～55V Power supply wiring: 4PIN Industrial Terminal (V1+V1-V2+V2-)
Packing List	1. Industrial Switch: 1PCS 2. User Manual: 1PCS 3. Certificate: 1PCS 4. Mounting Ear: 1 PCS

Menu	Sub Menu	Secondary Sub Menu	Tertiary Sub Menu
Information and Status	System Info
	IP Info
	Log
	Verbose Log
	MAC Address
	VLANs	VLAN Info
	VLANs	VLAN Ports Info
	Ports	Traffic Statistics
	Ports	Traffic detailed statistics
	LACP	LACP State
		Ports State
		Ports Statistics
	EEE Energy Efficient Ethernet
	PoE Statistics
	LLDP	LLDP Neighbor
		POE Neighbor
		Ports Statistics
	Loop detection
	STP spanning tree	STP bridge status
		Ports staus
		Port statistics
	IGMP Snooping	Configuration status
		IP multicast group
		IPv4 SFM Information
	MLD Snooping	Status
		Groups Information
		IPv6 SFM Information
	DHCP	Server	Statistics
			Binding
			Declined IP
		Snooping Table
		Relay Statistics
		Detailed Statistics
	Safety	Port Security	Switch
		Port Security	Port
		Access Management Statistics
		802.1X	Switch
		802.1X	Ports
		ACL Status
		AAA	RADIUS Overview
		AAA	RADIUS Details
	QoS	QoS Statistics
	QoS	QCL Status
Network Managed	IP Configure
	IP Statistic
	DHCPServer	Mode
		Excluded IP
		Pool
	NTP
	Time zone setting
	SNMP	System Configuration
		Trap event
		Communities
		Users
		Groups
		Views
		Access
	Log
Ports Configuration	Port settings
	Link Aggregation	Static Aggregation
	Link Aggregation	LACP
	Ports Mirroring
	EEE
	DDM	DDM Configuration
		DDM Overview
		DDM Detailed
PoE	POE Configuration
PoE	PoE State
Higher Configuration	MAC Address
	VLANs
	GVRP	Global config
	GVRP	Port config
	Ports Isolation	Ports Grouping
	Ports Isolation	Port Isolation
	loop Protection
	STP Spanning Tree	STP Bridge Settings
		MSTI Mapping
		MSTI Priorities
		CIST Ports
		MSTI Ports
	IPMC Profile	Profile Table
	IPMC Profile	Address Entry
	MEP
	ERPS
	IGMP Snooping	Basic Configuration
		VLAN Configuration
		Port Filtering Profile
	IPV6 MLD Snooping	Base Configuration
		VLAN Configuration
		Port Filtering Profile
	LLDP
Safety Configuration	Users
	Privilege Levels
	SSH
	Ports Safety
	Access Management
	802.1X
	ACL	Ports
		Rate Limiters
		Access Control List
	DHCP	Snooping Configuration
		Snooping Table
		Relay
		Relay Statistics
		Detailed statistics
	IP&MAC Source Guard	Ports Configuration
		Static Entry
		Dynamic Entry
	ARP Inspection	Ports Configuration
		VLAN Configuration
		Static Entry
		Dynamic Entry
	AAA	RADIUS
	AAA	TACACS+
QoS Settings	Port Classification
	Port Policing
	Queue Policing
	Port Scheduler
	Port Shaping
	Port Tag Remarking
	Port DSCP
	DSCP-Based QoS
	DSCP Translation
	DSCP Classification
	QoS Control List
	Storm Policing
System Diagnostics	Ping
	Cable detection
	CPU load
System Maintenance	Device restart
	Reset
	Firmware upgrade
	Firmware switch
	Configuration file	Download configuration file
		Upload configuration file
		Activate profile
		Delete Profile
