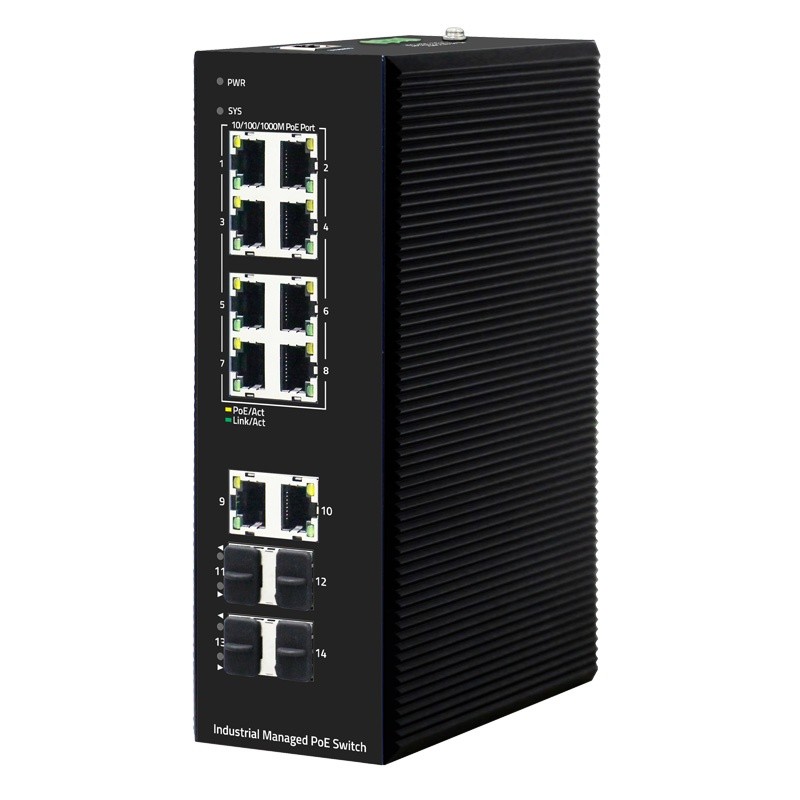

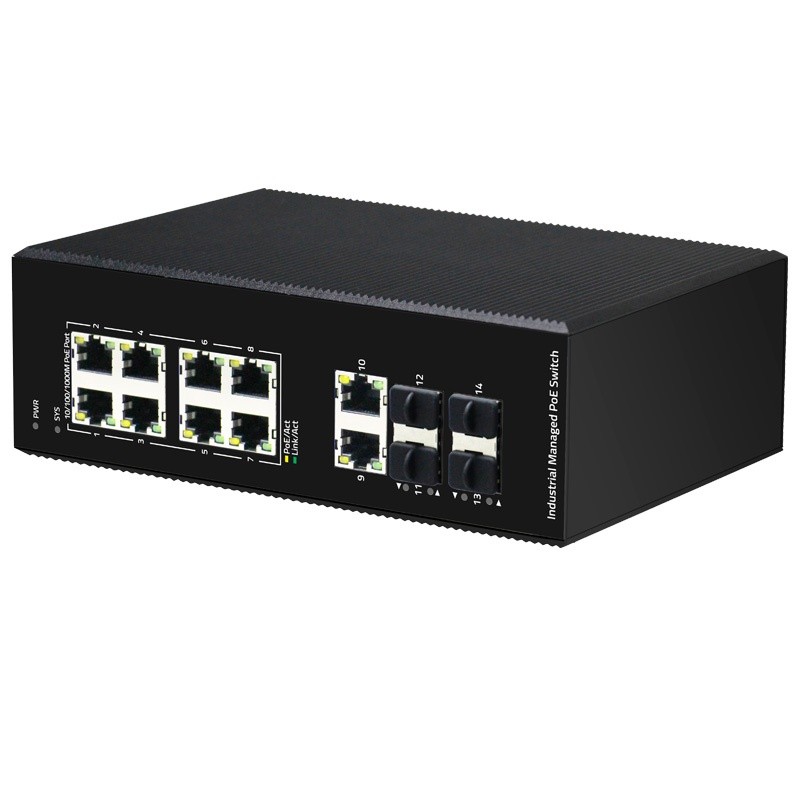

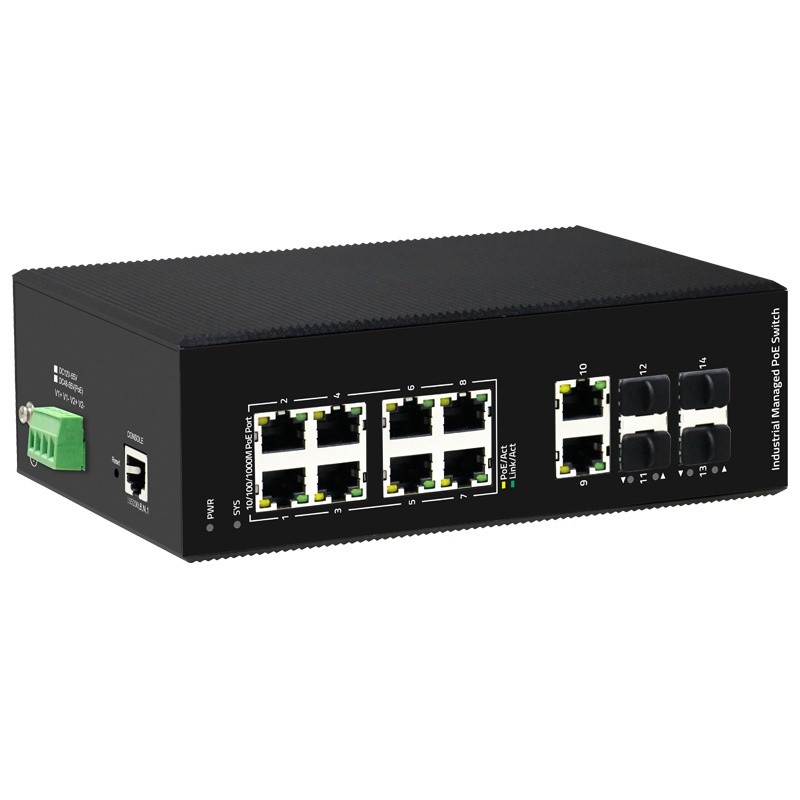

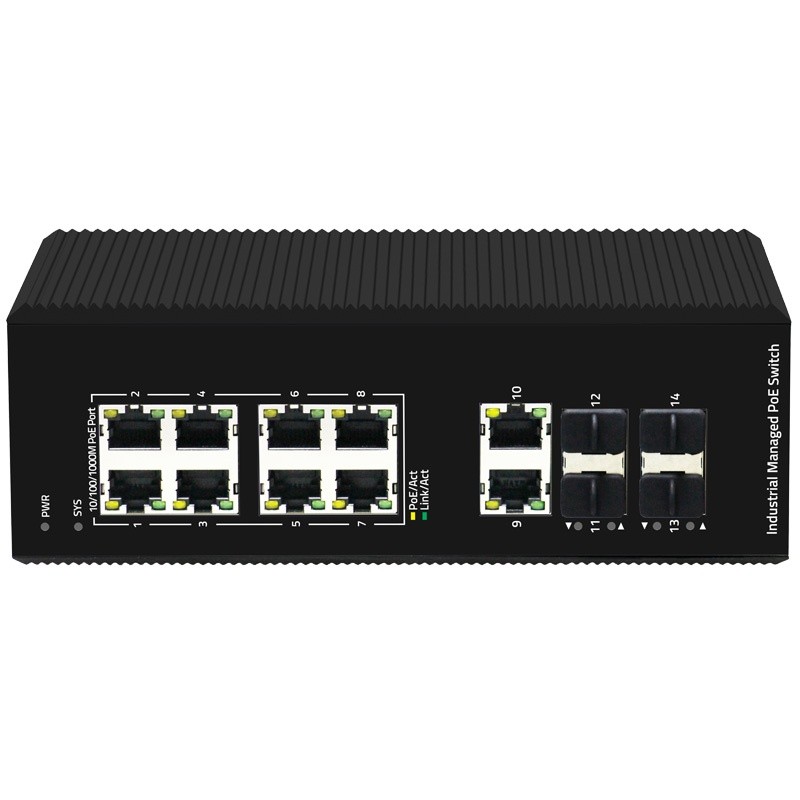

                 14 Ports Gigabit Managed Industrial PoE Switch



(Adopt VTS Industrial Grade Switch Chip)


Product Description

14 Port Gigabit Industrial Ethernet PoE Switch, 10 Gigabit PoE Ports(9-10 Port Support BT) + 4 Gigabit SFP Port + 1 Console Port
Support Din rail and wall mounting. Supports dual power input (DC48-55V); -40 to 75℃ working temperature; Certified by industrial
environment and
support FCC, CE, CCC, RoHS standards; Reliable industrial design ensures uninterrupted automation system Stable operation.



This series of industrial grade switches can be widely used in wind power, electric power, assembly automation, subway PIS, electric power
SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries. It is a green low-power
industrial Ethernet switch.



This series of switches provides advanced network management capabilities: redundant ring, loop protection, VLAN, QOS, speed control,
port mirroring, and firmware online upgrades. With standardized industrial design, it can meet the stringent requirements of industrial sites.
All components use industrial grade for greater reliability, providing redundant, wide-voltage power inputs and outputs for uninterrupted
industrial safety communications.



Features

1. 10 Gigabit PoE Ports(9-10 Port Support BT) + 4 Gigabit SFP Port + 1 Console Port

2. Support IEEE802.3IEEE802.3u,IEEE802.3x,IEEE802.3z / abIEEE802.1Q,IEEE802.1pIEEE802.1d/w

3. Support PoE Power Management, PoE Watchdog based on data stream detection

4. Support STP(802.1D), RSTP(802.1w),MSTP(802.1s),ERPS.

5. Support SNMP v1/v2/v3.

6. Support IGMP Snooping , Static multicast filtering and MLD Snooping.

7. Support 802.1x port and AAA Certification,Enhance network security.

8. Support WEB, Telnet,CLI,SSH management.Support login interface

9. Support IEEE802.3af(15.4w), IEEE802.3at(30W), IEEE802.3bt(90W)

10. IP40 protection, rugged high-strength metal case,DIN35 Rail mounting

11. EMC grade 4 design,-40 to 75℃ working temperature.

12. Support Redundant power supply access, support anti-reverse connection.

13. Surge Protection: General 6KV, Differential 4KV; ESD 15KV(Air), 8KV (Contact)

14. Support EMC EN55032 standard.



Application Environment】

Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., network operators.

Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.

Multimedia transmission: image, voice, data integrated transmission, suitable for remote teaching, conference TV, videophone and other applications.

Real-time monitoring: simultaneous transmission of real-time control signals, images, data

Resistant to harsh environment: Suitable for strong electromagnetic interference, networking in harsh environments at long distances.


Technical parameters】

Product Name

14 Ports Gigabit Industrial Managed PoE Switch

Product Model

SST-HGMP10ET4SBT

Port Definition

10 Gigabit PoE Ports(9-10 Port Support BT) + 4 Gigabit SFP Port + 1 Console Port





Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3z

IEEE802.3ab

IEEE802.3x

IEEE802.1d

IEEE802.1w



POE Parameters

POE Standard: IEEE 802.3af / IEEE 802.3at/IEEE802.3bt

Single PoE Port Power Output:

Max: 15.4 W (IEEE 802.3af)

Max: 30 W (IEEE 802.3at)

Max:90 W (IEEE 802.3bt)

PoE Compatibility: IEEE 802.3af / at / bt adaptive

POE Power Output: DC 48-55V

POE Power Pin:1/2- ; 3/6+bt:1/2-  3/6+ ;4/5+  7/8-)

Network Media

10BASE-T: Cat34、5 UTP(≤100 M)

100BASE-TX: Cat5 or above UTP(≤100 M)

1000BASE-TX: Cat5 or above UTP(≤100 M)

Fiber Media

Multi-mode850nm,1310nm  Transmission Distance: 550m/2Km

Single-mode1310nm,1550nm  Transmission Distance: 20/40/60/80/100/120Km









LED Indicator

PWR

LightingPowered

Un-LightNo Power

SYS

LightingSystem is operating normally

Un-LightSystem is not running

Yellow light

LightingPoE Powered

Un-LightNo PoE Powered

Green light

LightingLink normally

Un-LightLink disconnect



G11-G14

LightingFiber Connection is Normal

Un-LightDisconnect

Power Supply

Input Voltage: DC4855V

Type of input: 4 PIN terminal (block V1+V1- V2+ V2-)

Physical structure

Protect grade IP40

InstallationDIN Rail

Product weight: 1 KG  Package weight1.3KG(Without power)

Produc Dimensions(L×W×H): 188mm*130mm*64mm

Package Dimensions(L×W×H): 242mm×207m86mm

Standard packing(L×W×H): 445m445 m510mm

Standard packing quantity20 (PCS)

Working Environment

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Humidity: 5%~95 % ( No condensation)

Industry Standard

EMI: FCC Part 15, CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Certification

CE , FCC , ROHS

MTBF

100,000 Hours

Packing list

1. Industrial grade switch: 1 Set

2. Instruction manual: 1 PCS

3. Certificate, warranty card: 1 PCS

4. Serial cable:1PCS

Warranty

5 years

Hardware Parameters

Bandwidth

28Gbps

Packet Forwarding Rate

20.83Mpps

RAM

128MB

Flash

16MB

Packet Buffer Memory

4M

Jumbo frame

9.6Kbytes

VLANs

4096

MAC

8K

Forwarding Mode

Store-And-Forward


Menu Items

Submenus

Secondary Submenus

Triple Submenus

Information & Status

System Information





IP Status





Syslog





Detailed Syslog





MAC Table





VLANs

Membership



Ports



Ports

Traffic Overview



Detailed Statistics



LACP

System Status



Port Status



Port Statistics



Green Ethernet





LLDP

Neighbors



Port Statistics



Loop Protection





Spanning Tree

Bridge Status



Port Status



Port Statistics



IGMP Snooping

Status



Groups Information



IPv4 SFM Information



MLD Snooping

Status



Groups Information



IPv6 SFM Information



DHCP

Server

Statistics

Binding

Declined IP

Snooping Table



Relay Statistics



Detailed Statistics



Security

Port Security

Switch

Port

Access Management Statistics



802.1X

Switch

Port

ACL Status



AAA

RADIUS Overview

RADIUS Details

QoS

QoS Statistics



QCL Status



Network Admin

IP Config





IP Status





DHCPServer

Mode



Excluded IP



Pool



NTP





Timezone





SNMP

System



Trap



Communities



Users



Groups



Views



Access



Syslog





Port Configure

Ports





Aggregation

Static



LACP



Mirroring





Green Ethernet





DDM

DDM Configuration



DDM Overview



DDM Detailed



PoE

PoE Setting





PoE Status





Advanced Configure

MAC Table





VLANs





GVRP

Global config



Port config



Port Isolation

Port Group



Port Isolation



Loop Protection





Spanning Tree

Bridge Setting



MSTI Mapping



MSTI Priorities



CIST Ports



MSTI Ports



IPMC Profile

Profile Table



Address Entry



MEP





ERPS





IGMP Snooping

Basic Configuration



VLAN Configuration



Port Filtering Profile



IPV6 MLD Snooping

Basic Configuration



VLAN Configuration



Port Filtering Profile



LLDP





Security Configure

Users





Privilege Levels





SSH





Port Security Limit





Access Management





802.1X





ACL

Ports



Rate Limiters



Access Control List



DHCP

Snooping Setting



Snooping Table



Relay



Relay Statistics



Detailed Statistics



IP&MAC Source Guard

Configuration



Static Table



Dynamic Table



ARP Inspection

Port Configuration



VLAN Configuration



Static Table



Dynamic Table



AAA

RADIUS



TACACS+



QoS Configure

Port Classification





Port Policing





Queue Policing





Port Scheduler





Port Shaping





Port Tag Remarking





Port DSCP





DSCP-Based QoS





DSCP Translation





DSCP Classification





QoS Control List





Storm Policing





Diagnostics

Ping





Cable Diagnostics





CPU Load





Maintenance

Restart Device





Factory Defaults





Firmware Upgrade





Firmware Select





Configuration

Download



Upload



Activate



Delete
