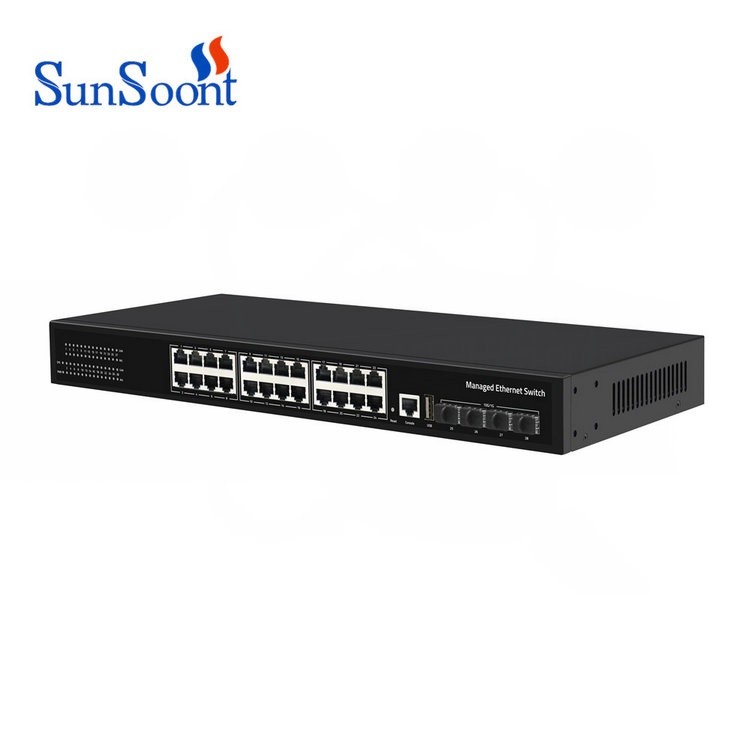

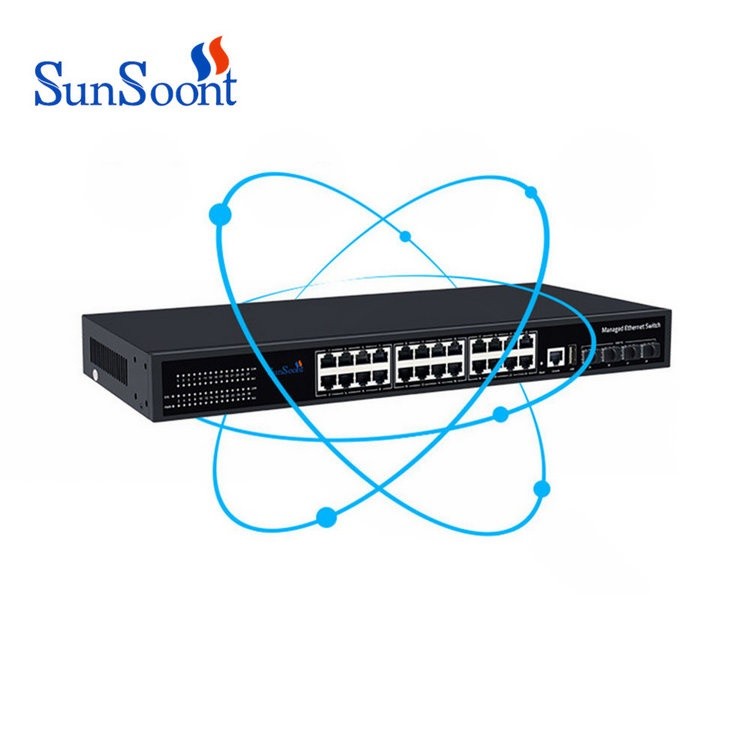

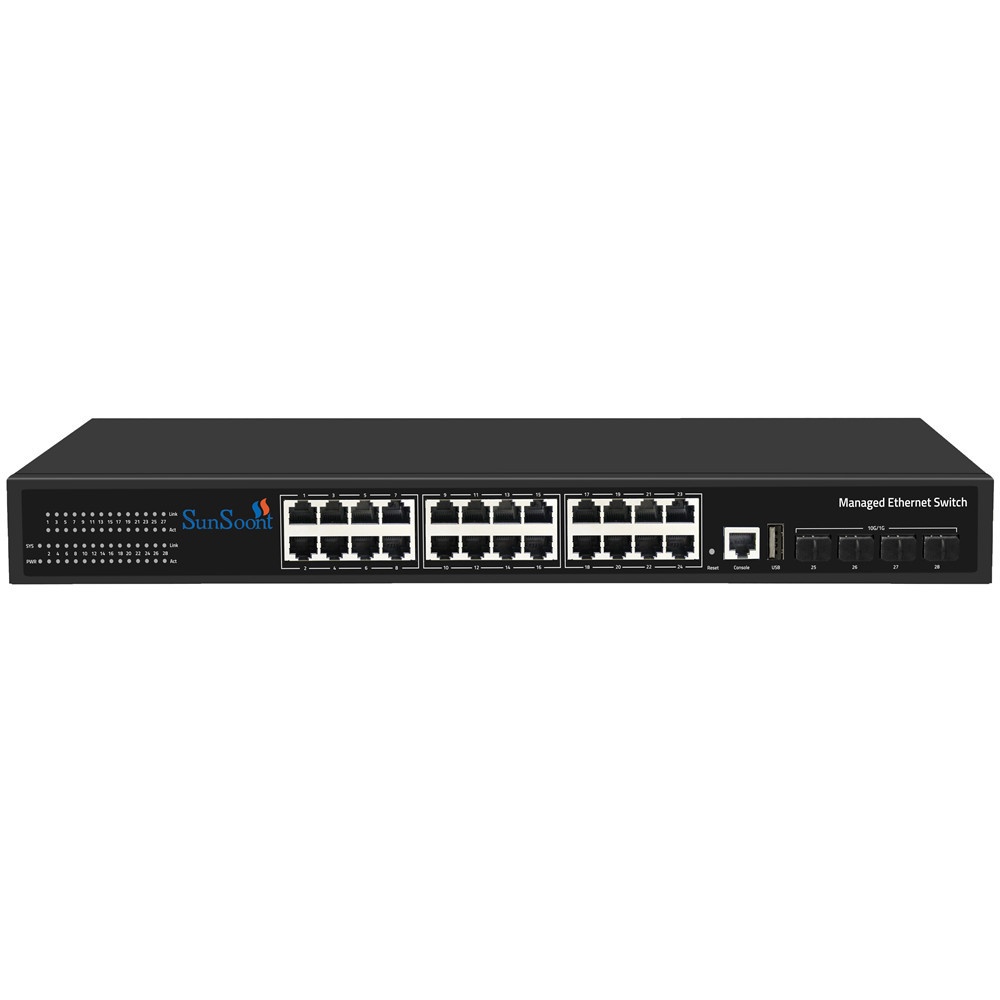

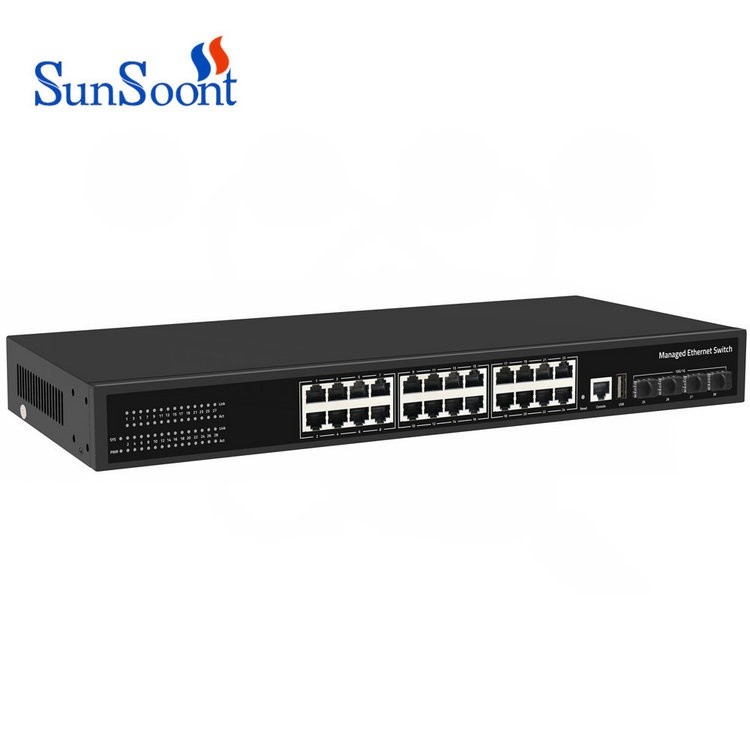

28 Port 10G Uplink 24 Port Gigabit Managed Ethernet Switch

28 Port 10G Uplink 24 Port Gigabit Managed Ethernet Switch

Product No.：SST-MTG244S
Online Inquiry

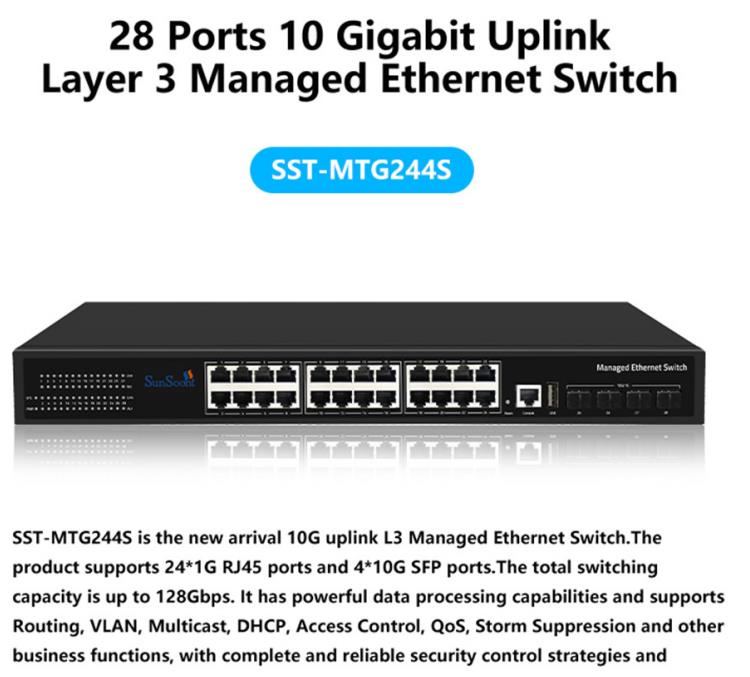

24-port 10G managed smart switch (SST-MTG244S)

【Product Description】

28-port 10 Gigabit uplink 24-port Gigabit managed Ethernet switch. Support 24 * 10/100/1000 adaptive electrical ports,

4 * 10 Gb SFP+ ports, 1 console port, and 1 USB serial port. Perfect security control strategy and CPU protect

policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The

device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions.

Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access

layer switch with high density port, switch stacking and easy management, are ideal for various commercial network

applications.

【Features】

 Support IEEE 802.1d、IEEE 802.1w、IEEE 802.1s、IEEE 802.1p、IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3z、

IEEE 802.3ab、IEEE 802.3ae standards ;

 L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2；

 Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and

control（802.3ah OAM）; Support IPV4/IPV6

 Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;

 Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;

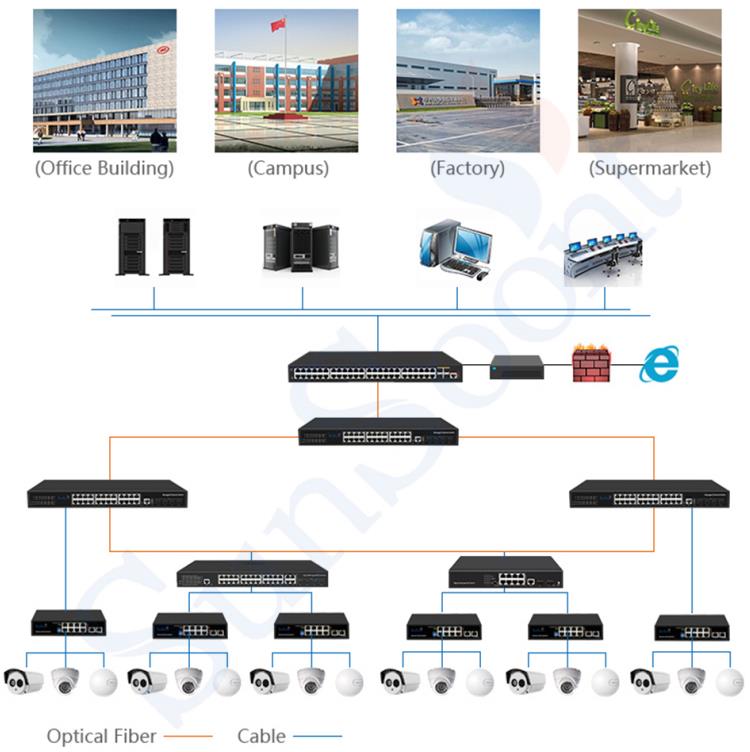

Application Reference:

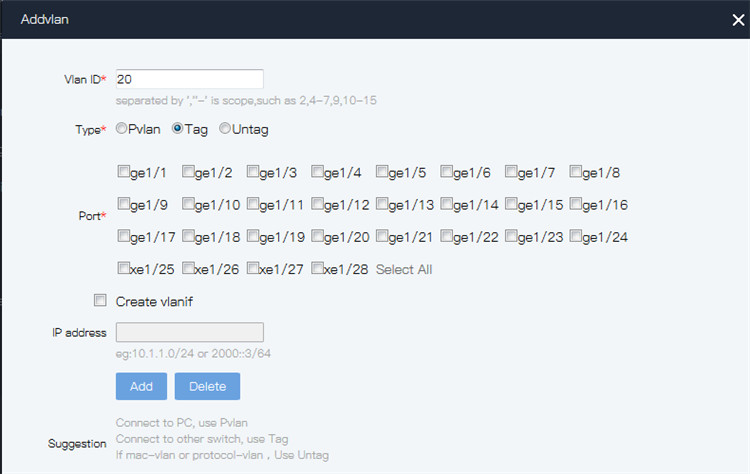

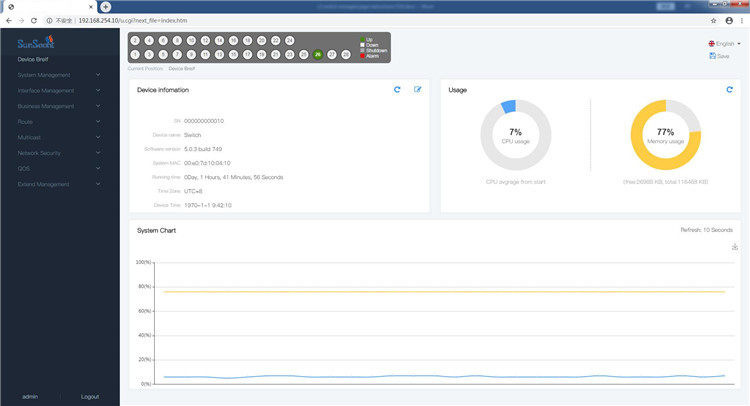

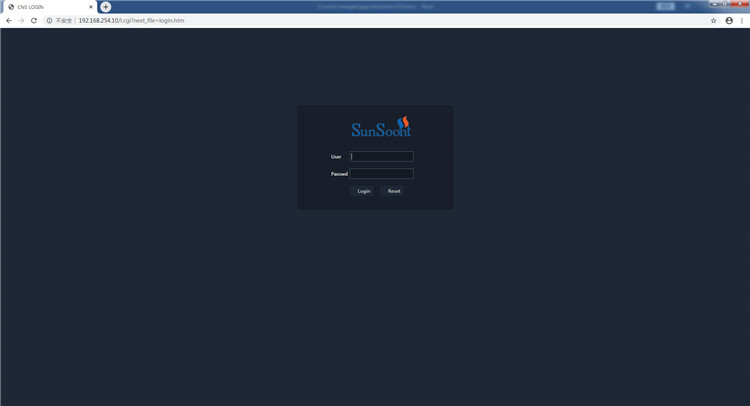

The typical operation interface of Web network management system is as follows.

【Software function】

Basic function	Support hardware watchdog, factory reset, system and port LED
	Support global information, statistical information, log information
	Support User management, alarm management, configuration management
	Support Port rate, duplex, flow control, maximum frame length configuration
	Support Port mirroring, port speed limit, port energy saving
Layer 3 Interface	Support Layer 3 interface
	Support IPv4, IPv6 address configuration
	Support ARP configuration
	Support ND configuration
Layer 3 Routing	Support IPv4 static routing
Layer 3 Routing	Support IPv6 static routing
DHCP	Support DHCP server
	Support DHCP relay
	Support DHCP Snooping
VLAN	Support 4K VLAN
	Support 802.1Q VLAN，baesd on port VLAN
	SupportAccess、Trunk、Hybrid VLAN mode
	Support GVRP (VLAN registration protocol)
	Support MAC VLAN 、IP VLAN
	Support Voice VLAN
MAC Address	Support MAC address automatic learning and aging
MAC Address	Support Static, dynamic, filtered address table
Security features	Password protection
	Support Restrict user access based on port number, IP address, MAC address
	Support HTTPS、SSH V1/V2
	Support IP-MAC-PORT-VLAN binding
	Support ARP detection, IP source protection, DoS protection
	Support DHCP Snooping、DHCP Attack protection
	Support 802.1X Certification
	SupportAAA (Authentication, Authorization, Accounting), Support RADIUS protocal,TACACS+
	Support Port security, port isolation
Access control	Support L2(Layer 2)～L4(Layer 4) Packet filtering function
Access control	Support Port mirroring, flow rate limiting, QoS remarking
QOS	Support 8 port queues
	Support Port priority, 802.1P priority, DSCP priority
	Support SP, WRR Priority scheduling algorithm
Spanning tree	Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocal
	Support Multi-instance, Support Aggregate interface
	Support BPDU protection
Multicast	Support IGMP v1/v2/v3 Snooping
	Support MLD v1/v2 Snooping
	Support Layer 2 multicast fast leave mechanism, querier
	Support Layer 2 IPv4 static multicast
	Support Layer 2 IPv6 static multicast
	Support IGMP v1/v2/v3 Layer 3 multicast
Storm suppression	Support multicast suppression
	Support broadcast storm suppression
	Support unknown unicast suppression
Ring protection	Support Ring protection
Link Aggregation	Support Static Aggregation
	Support LACP Dynamic Aggregation
	Support based on IP, MAC, mixed load-balancing modes
	Maximum support 32 aggregation groups (8 ports per aggregation group)
IPv6	Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet
	Support IPv6 SSH
	Support IPv6 HTTP 、IPv6 HTTPS
Management and Maintenance	Support WEB Management (HTTP、HTTPS)
	Support CLI (Telnet, SSH V1/V2, Local serial port)
	Support SNMP V1/V2/V3
	Support RMON V2
	Support LLDP Device discovery
	Support SNTP Time synchronization
	Support CPU Monitoring, Memory Monitoring
	Support System log, classification warning
	Support Ping, Traceroute detection, cable detection
