6 Port 10G Uplink 2.5G Web Managed Ethernet Switch

6 Port 10G Uplink 2.5G Web Managed Ethernet Switch

Product No.：SST-WTG4E2S
Online Inquiry

6 Port 10G Uplink 2.5G Web Managed Ethernet Switch

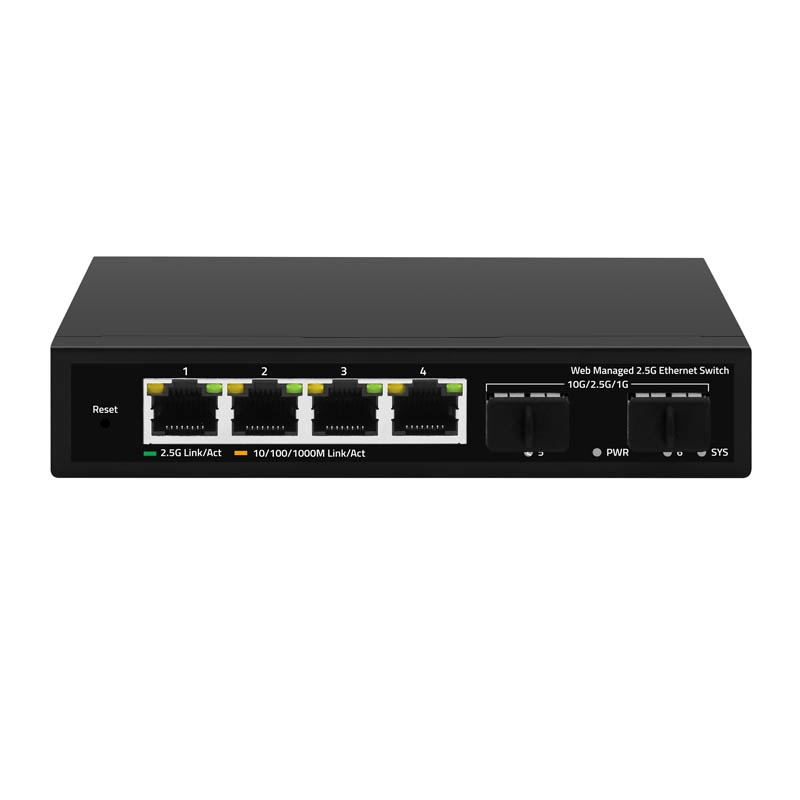

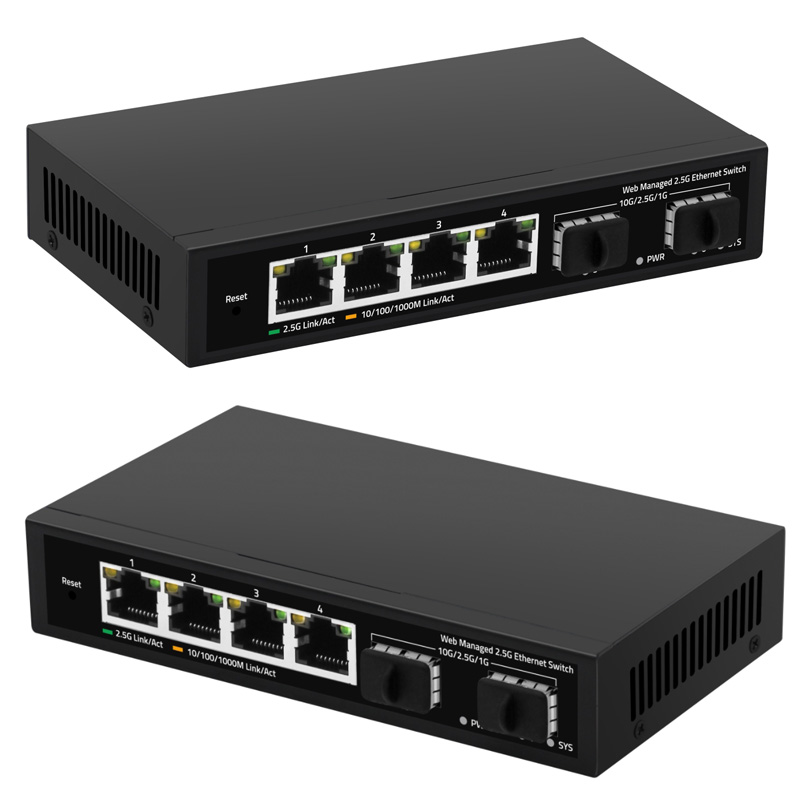

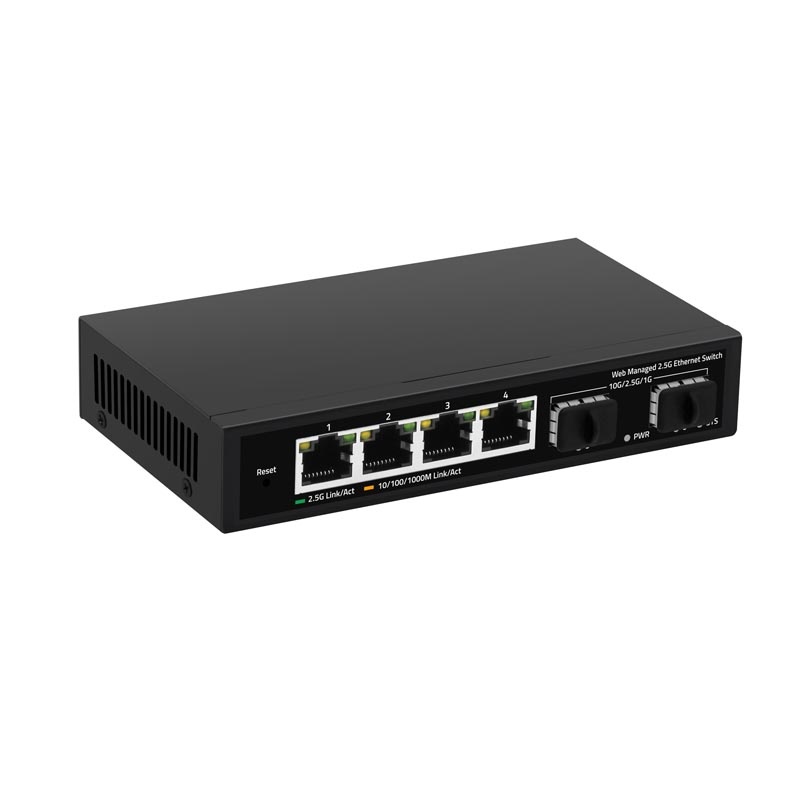

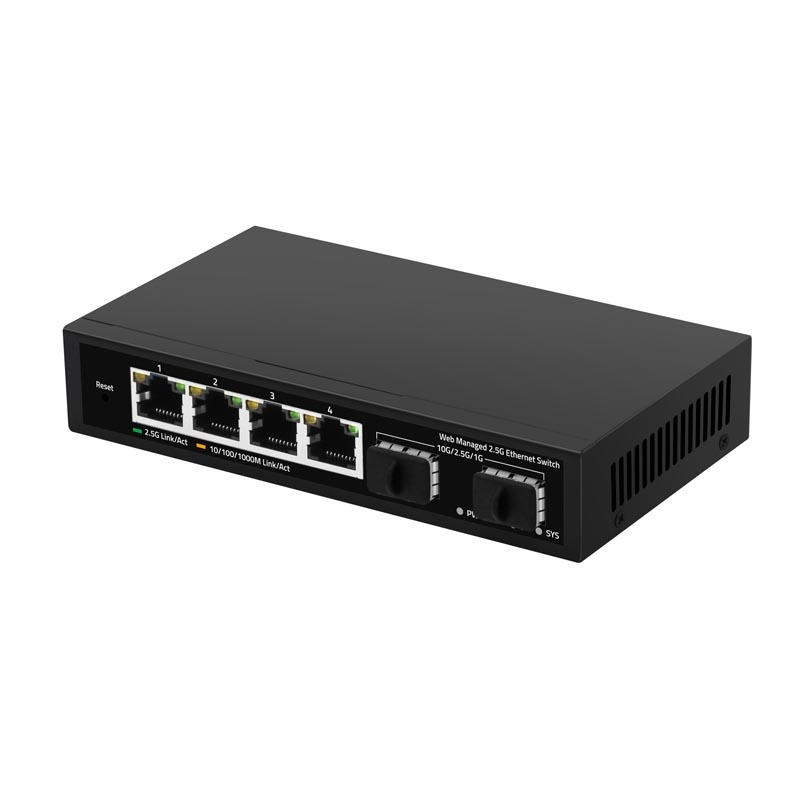

6 Port 10G Uplink 2.5G Web Managed Ethernet Switch, using high quality and high speed network chip solution. This switch has 4* 100/1000/2500M RJ45 ports and 2* 10G SFP+ ports, providing seamless connection to 10/100/1000/2500M Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.

Main Feature

1, 4* 100/1000/2500M RJ45 port +2*10G SFP+ ports;

2, Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x；

3, Ethernet port support 100/1000/2500M self-adaptive;

4, Supports automatic port rollover(Auto MDI/MDIX);

5, Panel indicators monitor working status and assist in fault analysis;

6, Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard;

7, Support QoS data priority;

8, Support Surge protection: Common mode 4KV;Differential mode 2KV(Class C);ESD: Air 8KV, Contact 6KV(Class C)

Technical Parameter

I/O Interface
Power	DC 12V1A
Ethernet	42.5G RJ45 ports 210G SFP+ ports
Performance
Bandwidth	60Gbps
Packet forwarding rate	44.64Mpps
Package cache	8Mbit
Vlan	VLAN range 1-4094, with a maximum active VLAN of 31
MAC address table	4K
Forwarding mode	Store forward
Network parameter
Network protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz(5G Ethernet) IEEE 802.3z(Gigabit Ethernet) IEEE 802.3ae(10G Ethernet) IEEE802.3x (Flow control)
Industry standard	EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge)
Network medium	10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) 2.5GBase-T: Cat5e or above UTP/STP(≤100m) 5GBase-T: Cat6 or above UTP/STP(≤100m) 10GBase-T: Cat6a or above UTP/STP(≤100m)
SFP medium	1000BASE-SX: 62.5μm MMF(multi mode)(Minimum range: 2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF(Minimum range: 2m～550m)or 10μm SMF(Minimum range：2m～5km) 2500BASE-X: G.652D SMF(Single mode)(Minimum range: 2m～500m or 2m～5km) 10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range: 2m～300m) 10GBASE-LR: IEC B1.1 and B1.3 SMF(Minimum range: 2m～10km)
Environmental standard
Working environment	Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
Functional indication
PWR(Power indicator)	On: Powered on Off: Powered off
SYS	Flashing: System startup Lighting: System Running
1-4 Port	Green On: 2.5G Link connect normal Yellow On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting
5~6 Port Green Light	On: 10G Link connect normal Off: Link off Flashing: data transmitting
Reset	Long press for 6 seconds to Factory reset
Physical specification
Structural dimension	Product size: 1409328mm Package size: 20316055mm Product weight: 0.33KG Packing weight: 0.46KG
Packing information	Outer box size: 580335445mm Packing quantity: 40 pcs Packing weight: 19.5KG

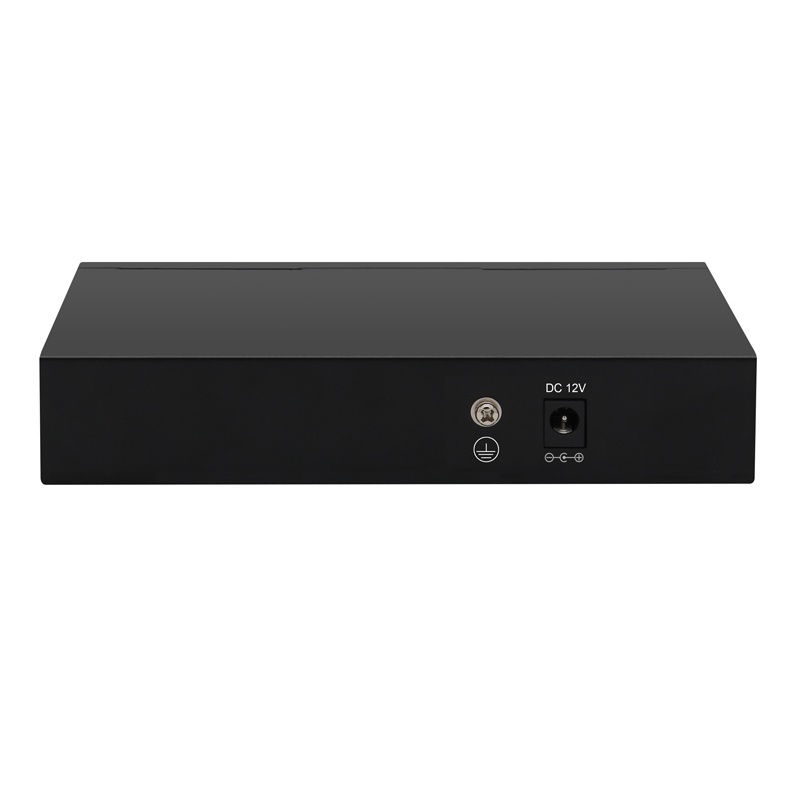

Operating voltage	Adapter input voltage: AC 100-240 V Switch input voltage: DC 12V1A
Power	Maximum 12W
Packing list	Switch 1pcs, Specification 1pcs, Certificate of qualification 1pcs, Power adapter 1pcs
Order Info
SST-WTG4E2S	6 Port 10G Uplink 2.5G Web Managed Ethernet Switch

L2 Function
Port	Port Switch Configuration
	Port Speed Configuration
	Port Duplex Configuration
	Port Flow Control Configuration
	Jumbo
	EEE
Link Aggregation	Static Group
	Up to 2 groups
	Max. 4 members per group
	Support dynamic LACP
Storm Control	Board cast
	Unknown Multicast
	Unknown Uni-cast
Port Mirroring	Support
Port Security	MAC Address Constraints
Port Isolation	Support
Port Rate-limit	Support
Loop back Detection	Support
VLAN	Access/Trunk/Hybrid
VLAN	Configurable VID from 1 - 4094; Max. 31 static VLAN groups
MAC Address	Dynamic Address
MAC Address	Static Address
Spanning Tree Protocol	STP/RSTP
Spanning Tree Protocol	Edge Port
Multicast	IGMP Snooping
	IGMP V1/V2
	Router Port
	Static IGMP Join
QoS	Traffic classification based, Strict priority and WRR
	Port Priority
	Supports up to 8 queues per port
Services
Access Protocol	HTTP
Diagnostics	Port Statistics
Management
Manager Access	HTTP
Manager IP	Static Address
Manager IP	DHCP Client
User	Support
Firmware	Firmware Upgrade
Configuration	Upload and download
Save	Support
Restart	Support
Factory Defaults	Support
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
