6 Port 10G uplink 2.5G web managed Ethernet Switch

6 Port 10G uplink 2.5G web managed Ethernet Switch

Product No.：SST-WTG5E1S
Online Inquiry

6 Port 10G uplink 2.5G web managed Ethernet Switch

Product Description

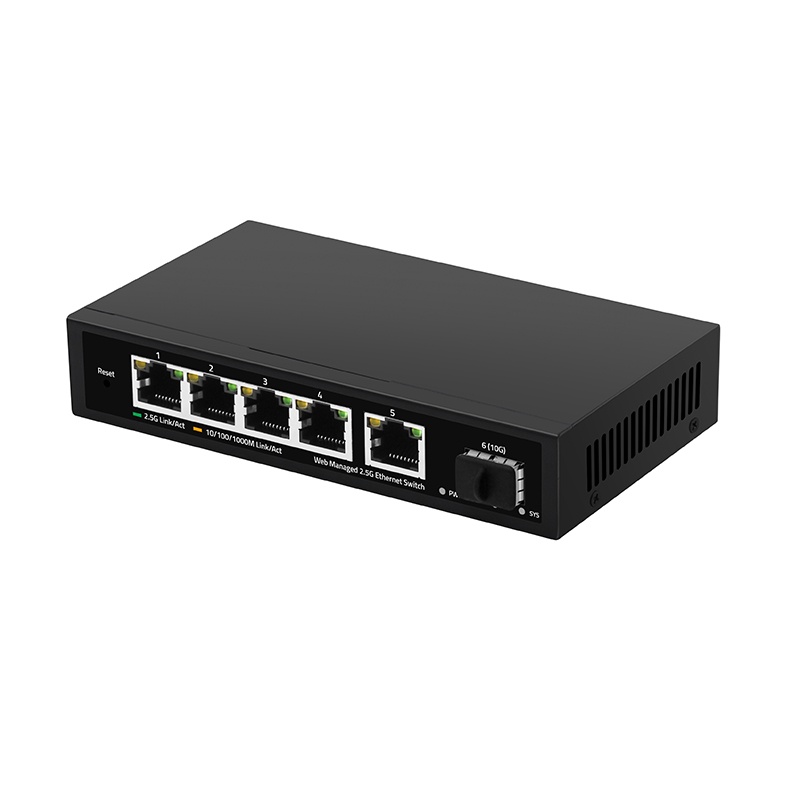

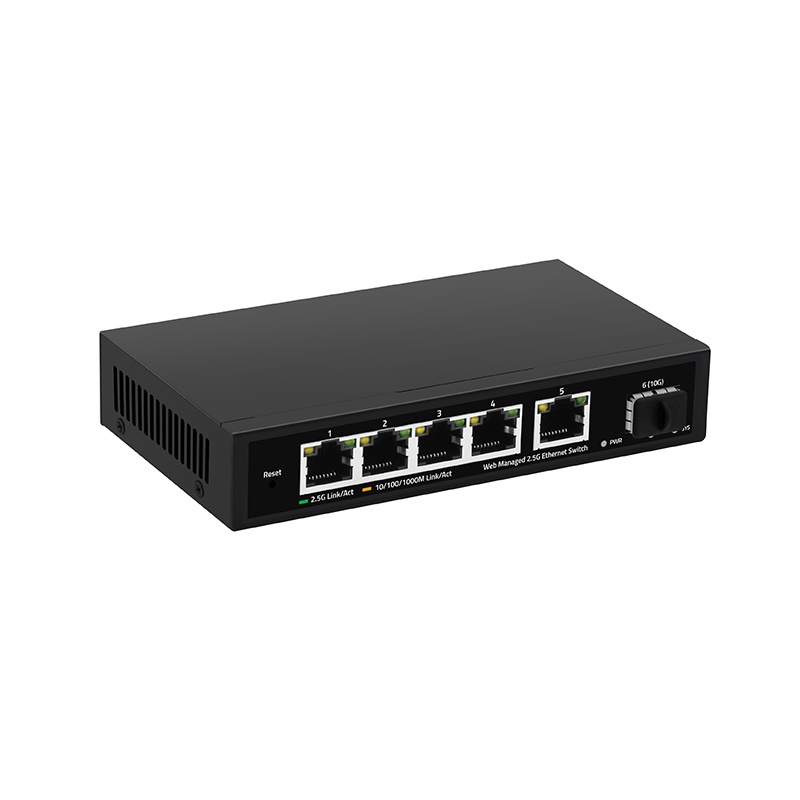

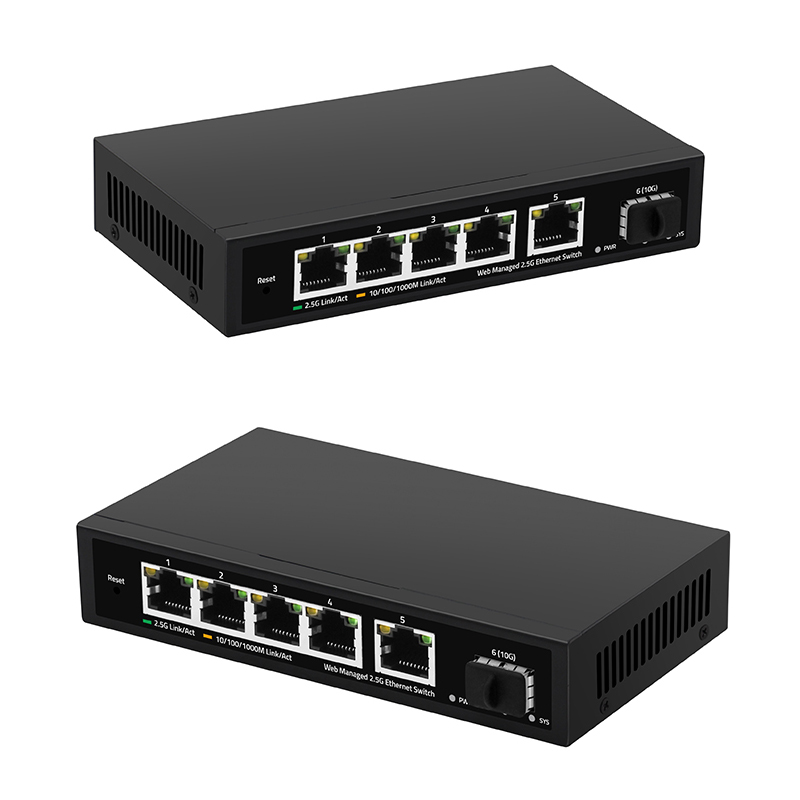

6 Port 10G uplink 2.5G web managed Ethernet Switch, using high quality and high speed network chip solution,
this product completely solves the problem of loud noise of small switches deployed in the office environment through
the fanless silent design. This switch has 5* 100/1000/2500M RJ45 ports and 1* 10G SFP+ port, providing seamless
connection to 100/1000/2500M Ethernet for easy management and maintenance. This switch can be widely used in
security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.

Main Features

1, 5* 100/1000/2500M RJ45 ports+1* 10G SFP+ port;
2, Comply with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x;
3, Ethernet ports support 100/1000/2500M self-adaptive;
4, Support port Auto MDI/MDIX;
5, Panel indicator lights monitor working status and help failure analysis;
6, Support QoS data priority;
7, Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back-pressure standard;
8, Support surge protection: common mode 6KV; differential mode 2KV; ESD Air 8KV, contact 6KV;

Technical Specification

I/O Interface

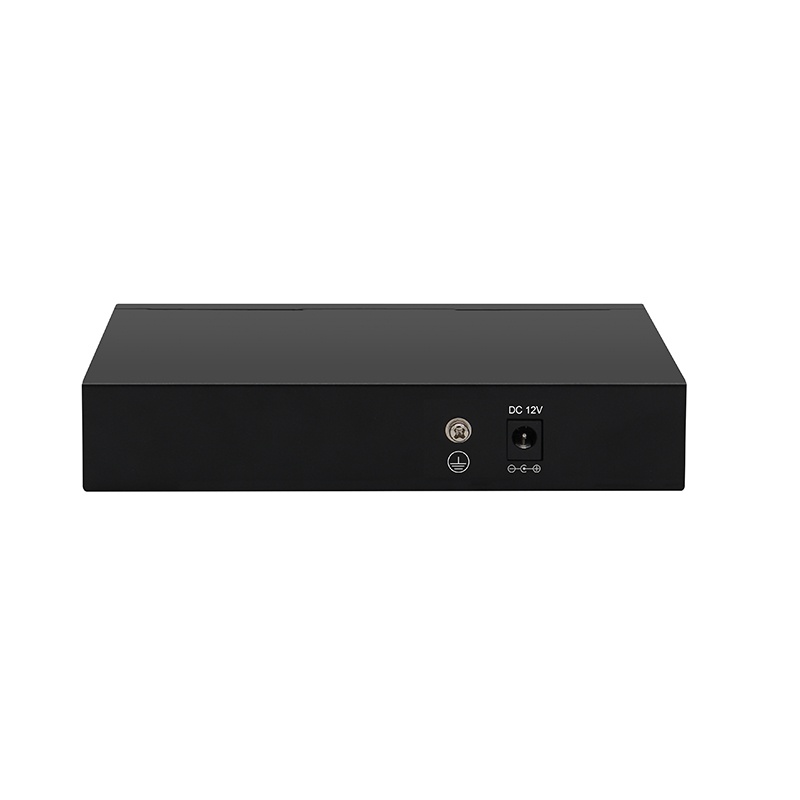

Power	DC 12V
Ethernet	52.5G RJ45 Ports 110G SFP Port
Performance
Bandwidth	45Gbps
Pack forward rate	33.48Mpps
VLAN	VLAN range 1-4094, with a maximum active VLAN of 31
MAC address	4K
Transfer mode	Storage & forward
Standard
Network protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control)
Industry standard	EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge)
Network Medium	10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m)
Optical Medium	multi mode: 50/125, 62.5/125, 100/140um Single mode: 8/125, 8.7/125, 9/125, 10/125um
Environment Standard
Working Environment	Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing
Power Voltage	Adapter input voltage: AC 100-240 V switch input voltage: DC 12V1A
Power	Main board power：8.24W
Indicator
PWR (Power)	On: Powered on Off: Powered off
SYS	Flashing: System startup Lighting: System Running
1-5 Port	Green On: 2.5G Link connect normal Yellow On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting
6 Port Green Light	On: 10G Link connect normal Off: Link off Flashing: data transmitting
Reset	Long press for 6 seconds to Factory reset
Physical Specification
Structure Size	Product size: 1409328mm Package size: 20316055mm Product weight: 0.33KG Packing weight: 0.46KG
Packing Info	Outer box size: 580335445mm Packing quantity: 40 pcs Packing weight: 19.5KG
Packaging List	1. Switch 1pcs 2. User manual 1pcs 3. Certificate 1pcs 4. Power adapter 1pc

L2 Function
Port	Port Switch
	Port Speed
	Port Duplex
	Port Flow Control
	Jumbo
	EEE
Link Aggregation	Static Group
	Up to 2 groups
	Max. 4 members per group
	Support dynamic LACP
Storm Control	Boardcast
	Unknown Multicast
	Unknown Unicast
Port Mirroring	Support
Port Security	MAC Address Constraints
Port Isolation	Support
Port Rate-limit	Support
Loopback Detection	Support
VLAN	Access/Trunk/Hybrid
VLAN	Congurable VID from 1 - 4094; Max. 31 static VLAN groups
MAC Address	Dynamic Address
MAC Address	Static Address
Spnning Tree Protocol	STP/RSTP
Spnning Tree Protocol	Edge Port
Multicast	IGMP Snnoping
	IGMP V1/V2
	Router Port
	Static IGMP Join
QoS	Traffic classification based, Strict priority and WRR
	Port Priority
	Supports up to 8 queues per port
Services
Access Protocol	HTTP
Diagnostics	Port Statistics
Managemnet
Manager Access	HTTP
Manager IP	Static Address
Manager IP	DHCP Client
User	Support
Firmware	Firmware Upgarde
Configuration	Upload and download
Save	Support
Restart	Support
Factory Defaults	Support
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
