28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch
- Product No.:SST-MTG24S8ET
【Product Description】
28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch, support 24* 1000M SFP Ports, 8* 10/100/1000M adaptive Ethernet Ports(Combo), 4* 10G SFP Ports, 1* Console Port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection;
The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. With advanced security functions and quality of service (QoS), it can be used as core layer, distribution layer ,and access layer switch with high density port and easy management, is an ideal choice for various business network applications.
【Main Feature】
Ø Support 24* 10/100/1000M adaptive SFP Ports, 8* 10/100/1000M adaptive Ethernet Ports(Combo), 4* 10G SFP +Ports, 1* Console Port;
Ø Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard;
Ø L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2;
Ø Support STP/RSTP/MSTP(ERPS), support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM);
Ø Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
Ø Support IP address + MAC address + VLAN + Port binding, DHCP Snooping, support IP source and DAI protection;
Ø Support IPV4/IPV6, RIP, OSPF.
Ø Lightning protection: common mode 4KV, differential mode 2KV
【Application Environment】
Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
Ø Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Ø Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Ø Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
【Specification】
I/O Interface |
|
Model No. |
SST-MTG24S8ET
|
Power |
AC 100-240V/50-60Hz |
Ethernet |
24* Gigabit SFP Ports 8* Gigabit Ethernet Ports(Combo) 4* 10G SFP+ Ports 1* Console Port |
Performance |
|
Bandwidth |
128Gbps |
Packet Forwarding Rate |
95.23Mpps |
DDR SDRAM |
128MB |
Flash Memory |
16MB |
Package Cache |
12M |
MAC Address |
16K |
Jumbo Frame |
12Kbytes |
VLANs |
4096 |
Transfer Mode |
Storage & Forwarding |
MTBF |
100000 Hours |
Standard |
|
Network Protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Rapid Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet Optical Fiber Standard) IEEE 802.3ae(10G Ethernet) IEEE802.3x (Flow Control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3ad(Link Aggregation) IEEE 802.1AB LLDP/LLDP-MED(Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (Visual LAN) IEEE 802.1p (VLAN Label) IEEE 802.1X (Client/Server Access Control and Authentication Protocol) |
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
Network Medium
|
10BASE-T: Cat 3, 4, 5 or above UTP(≤100m) 100BASE-TX: Cat 5 or above UTP(≤100m) 1000BASE-TX: Cat 5 or above UTP(≤100m) |
Optical Medium
|
Multi-mode Fiber: 850nm, 1310nm Transmission Distance: 550m/2Km Single-mode Fiber: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km |
Certification |
|
Safety Certificate |
CE, FCC, RoHS |
Environment Standard |
|
Working Environment |
Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing |
LED Indicator |
|
Indicator |
PWR, SYS, Link/ACT |
PWR (Power Light) |
On: Powered on, Off: Powered off |
SYS (System Light) |
On: System Normal, Flashing: System Starting or Failed |
Link/ACT (Link & Data) |
On: Link Connecting, Flashing:Data Transmitting, Off: Link disconnect |
Physical Specification |
|
Structure Size |
Product Dimensions: 440*205*44mm Package Dimensions: 500*290*85mm Product N.W: 3.06KG Product G.W: 3.63KG |
Packing Info |
Carton Dimensions: 520*445*310mm Packing Quantity: 5 PCS Packing Weight: 19.15KG |
Power Voltage |
Voltage: AC 100-240V/50-60Hz power : 12V8A |
Power Consumption (Max) |
≈38W |
Package List |
Ethernet switch: 1 Set, Instruction manual: 1 PCS, Certificate: 1 PCS, Power cord: 1PCS, Serial cable: 1PCS, Rack ear: 1 Pairs |
Order Info |
|
SST-MTG24F8ET |
28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch |
【Software Function】
Basic Function |
Support hardware watchdog, factory reset, system and port LED |
Support global information, statistical information, log information |
|
Support User management, alarm management, configuration management |
|
Support Port rate, duplex, flow control, maximum frame length configuration |
|
Support Port mirroring, port speed limit, port energy saving |
|
Layer 3 Interface |
Support Layer 3 Interface |
Support IPv4, IPv6 address configuration |
|
Support ARP configuration |
|
Support ND configuration |
|
Layer 3 Routing |
Support IPv4 static routing |
Support IPv6 static routing |
|
Support RIP V1/V2 |
|
Support OSPF |
|
DHCP |
Support DHCP server |
Support DHCP relay |
|
Support DHCP Snooping |
|
VLAN |
Support 4K VLAN |
Support 802.1Q VLAN, based on port VLAN |
|
Support Access, Trunk, Hybrid VLAN mode |
|
Support GVRP (VLAN registration protocol) |
|
Support MAC VLAN, IP VLAN |
|
Support Voice VLAN |
|
MAC Address |
Support MAC address automatic learning and aging |
Support Static, dynamic, filtered address table |
|
Safety Features |
Password protection |
Support Restrict user access based on port number, IP address, MAC address |
|
Support HTTPS, SSH V1/V2 |
|
Support VLAN-IP-MAC-PORT binding |
|
Support ARP detection, IP source protection, DoS protection |
|
Support DHCP Snooping, DHCP Attack protection |
|
Support 802.1X Certification |
|
Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocol, TACACS+ |
|
Support Port Security, Port Isolation |
|
Access Control |
Support L2(Layer 2)~L4(Layer 4) Packet filtering function |
Support Port mirroring, flow rate limiting, QoS remarking |
|
QOS |
Support 8 port queues |
Support Port priority, 802.1P priority, DSCP priority |
|
Support SP, WRR Priority scheduling algorithm |
|
Spanning Tree |
Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol |
Support Multi-instance, Support Aggregate interface |
|
Support BPDU protection |
|
Multicast |
Support IGMP v1/v2/v3 Snooping |
Support MLD v1/v2 Snooping |
|
Support Layer 2 multicast fast leave mechanism, querier |
|
Support Layer 2 IPv4 static multicast |
|
Support Layer 2 IPv6 static multicast |
|
Support IGMP v1/v2/v3 Layer 3 multicast |
|
Storm Suppression |
Support multicast suppression |
Support broadcast storm suppression |
|
Support unknown unicast suppression |
|
Ring Protection |
Support Ring Protection |
Link Aggregation |
Support Static Aggregation |
Support LACP Dynamic Aggregation |
|
Support based on IP, MAC, mixed load-balancing modes |
|
Maximum support 8 aggregation groups (8 ports per aggregation group) |
|
IPv6 |
Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet |
Support IPv6 SSH |
|
Support IPv6 HTTP, IPv6 HTTPS |
|
Management & Maintenance |
Support WEB Management (HTTP、HTTPS) |
Support CLI (Telnet, SSH V1/V2, Local serial port) |
|
Support SNMP V1/V2/V3 |
|
Support RMON V2 |
|
Support LLDP Device discovery |
|
Support SNTP Time synchronization |
|
Support DNS Client |
|
Support CPU Monitoring, Memory Monitoring |
|
Support System log, classification warning |
|
Support Ping, Traceroute detection, cable detection |

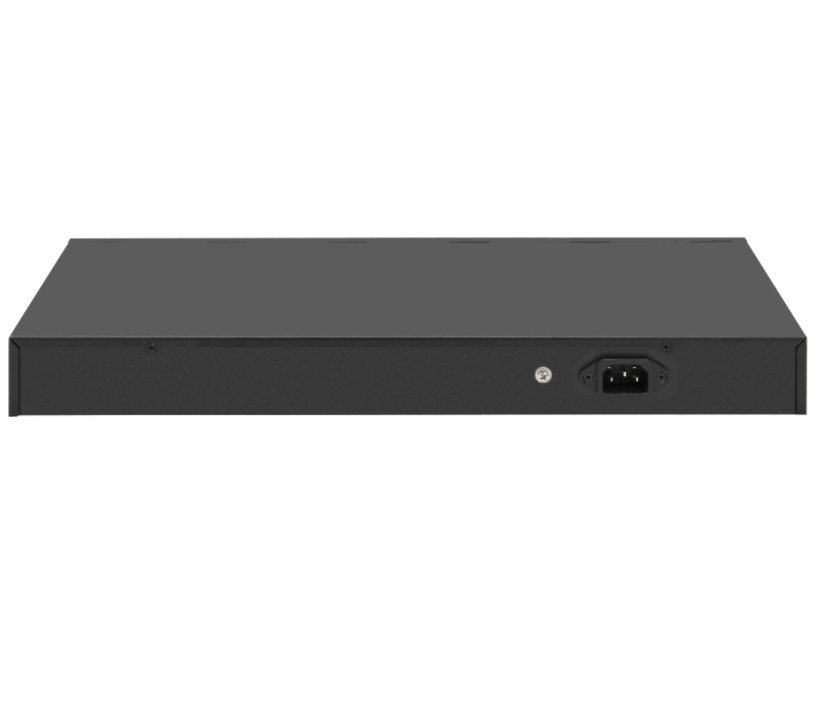

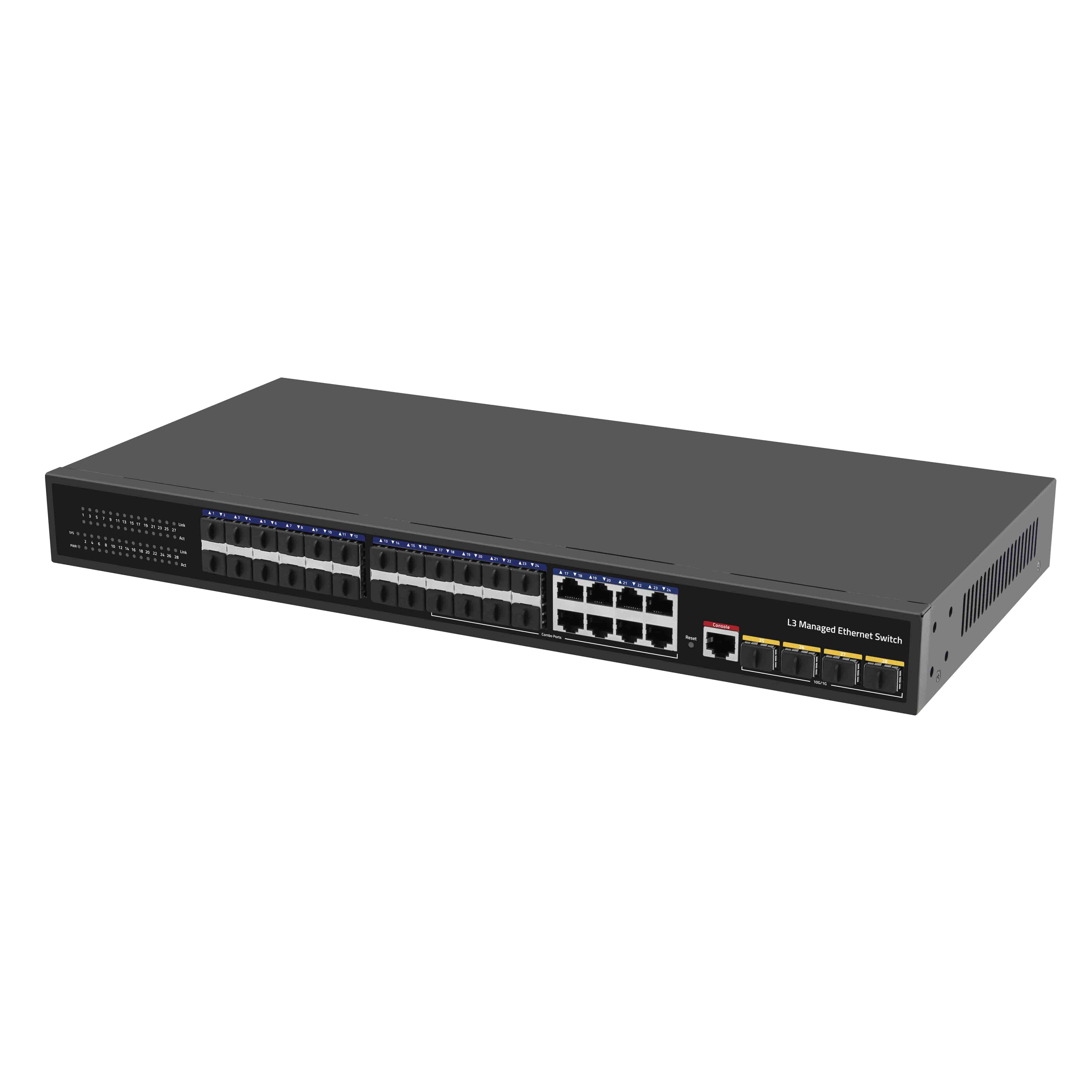

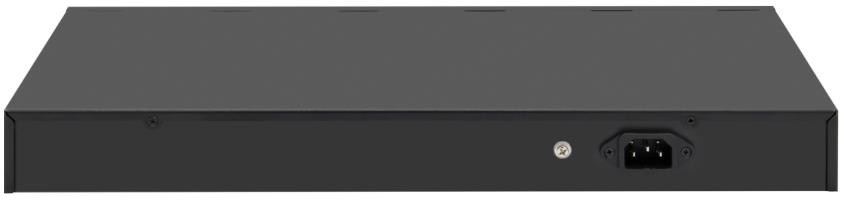

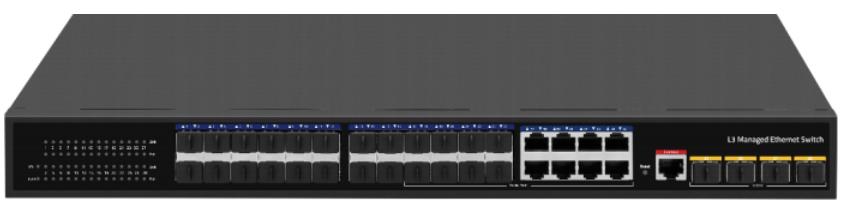

【Product Picture】

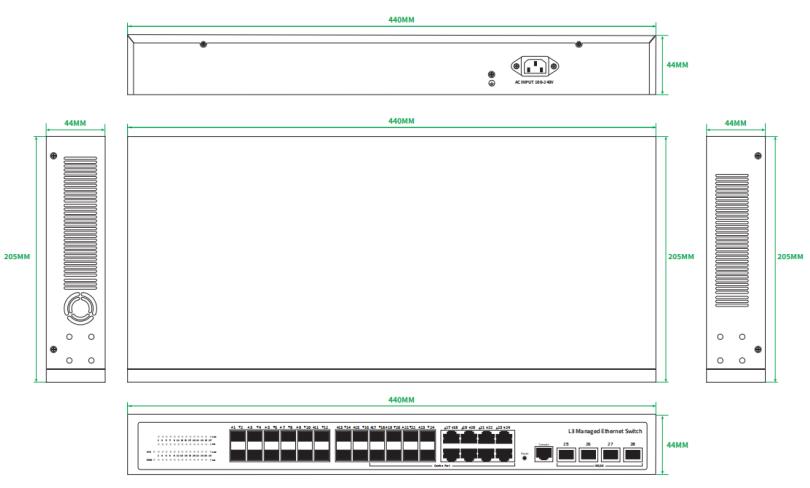

【Product Structure】
